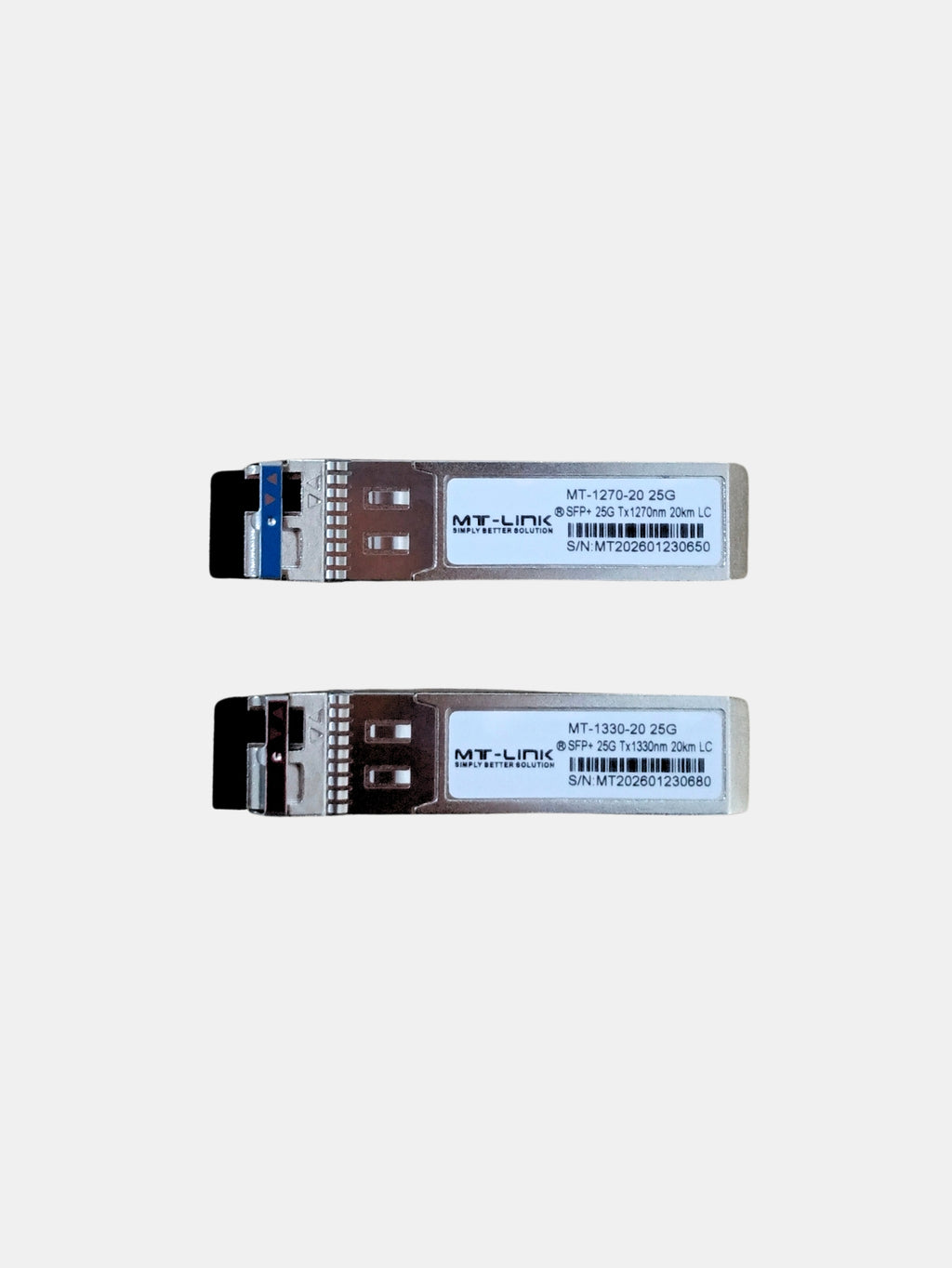

MT-25G SFP 1270/1330-20 (PAIR) - UPTO 20KM - 25GBase-WDM Bi-Directional SFP+ LC Module

MT-Link 25G SFP28 BiDi Optical Module Pair (1270/1330nm – 20KM)
Key Features
Model: MT-1270/1330-20 25G
25Gbps High-Speed Data Transmission
BiDi (Bidirectional) Technology over Single Fiber
Wavelength Pair: 1270nm / 1330nm (A+B Pair)
Transmission Distance: Up to 20KM
Single Mode Single Fiber (SMF)
LC Optical Connector
Hot-Pluggable SFP28 Form Factor
DDM/DOM Digital Diagnostics Support
Low Power Consumption & Stable Performance
Compatible with OLTs, Switches, Routers, Servers, and Network Equipment
Supports Long-Distance High-Speed Fiber Networks

The module uses a 1270nm/1330nm wavelength pair for bidirectional communication over a single strand of single-mode fiber, delivering up to 25Gbps transmission with a maximum reach of 20KM.

Detailed Description

The MT-Link MT-1270/1330-20 25G is a high-performance 25G SFP28 BiDi optical transceiver pair designed for reliable long-distance fiber communication. Utilizing 1270nm and 1330nm wavelengths, the modules transmit and receive data over a single fiber core, helping reduce fiber infrastructure requirements while maintaining high-speed network performance.

This A+B paired solution supports transmission distances of up to 20 kilometers on single-mode fiber (SMF) and is ideal for enterprise networks, data centers, telecom deployments, FTTH backhaul, and high-bandwidth optical networking applications.

The module features a standard SFP28 hot-pluggable design, enabling easy installation and replacement without powering down equipment. It also supports DDM/DOM monitoring, allowing real-time visibility of optical parameters for improved network management and diagnostics.

Specifications
Item    Specification
Brand    MT-Link
Model    MT-1270/1330-20 25G
Form Factor    SFP28
Data Rate    25Gbps
Wavelength    1270nm / 1330nm (A+B Pair)
Fiber Type    Single Mode Single Fiber (SMF)
Connector    LC
Transmission Distance    20KM
Transmission Mode    BiDi (Bidirectional)
Monitoring    DDM/DOM Supported
Installation    Hot-Pluggable
Operating Temperature    -15°C to +65°C
Compatibility    Compatible with standard OLTs, Switches, Routers, Servers, and Networking Equipment
Package Includes
1 × MT-Link 25G SFP28 1270nm Module (Side A)
1 × MT-Link 25G SFP28 1330nm Module (Side B)

Note: This product is supplied as an A+B matched pair and both modules must be used together for proper operation.
