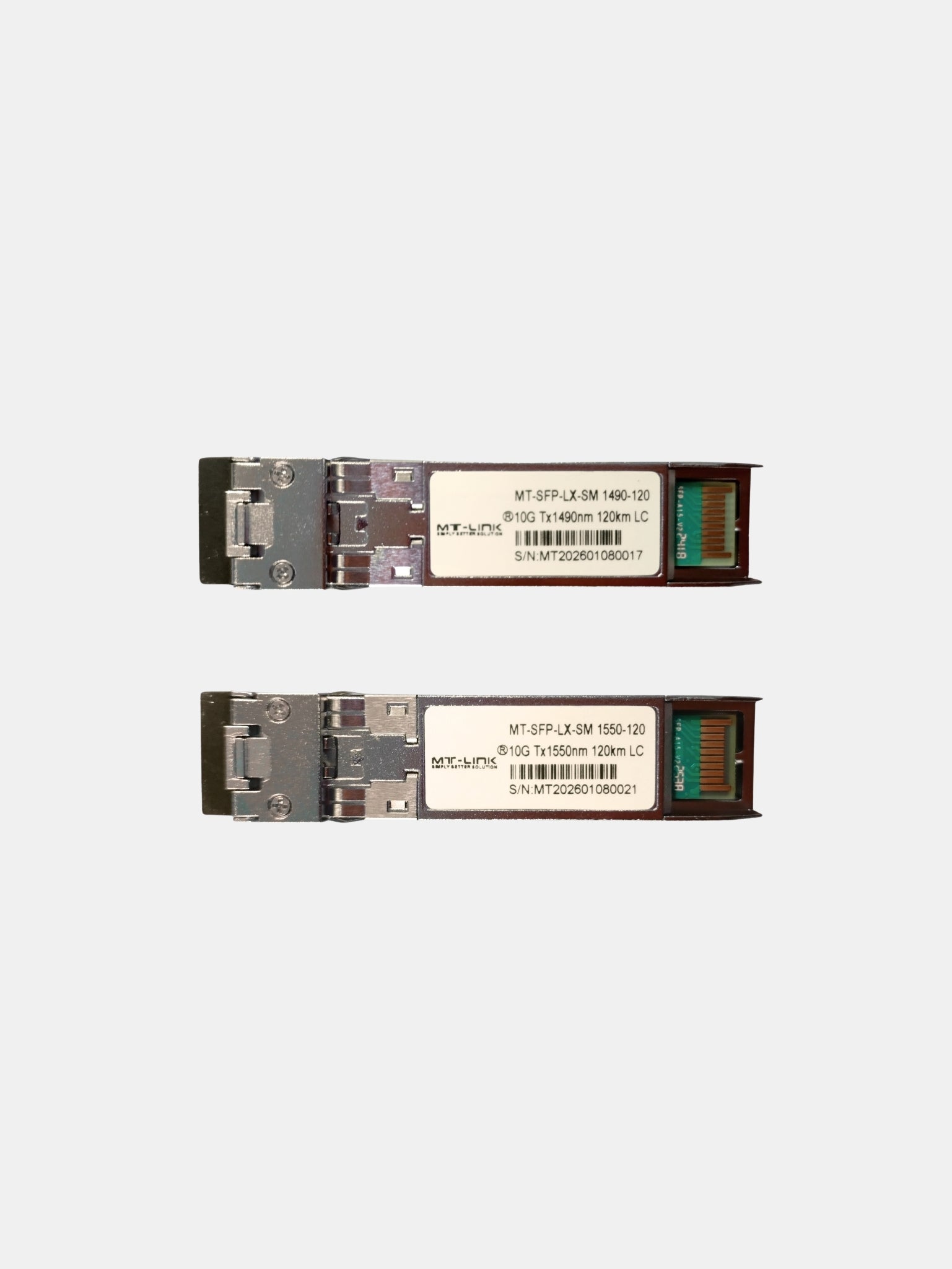

MT-SFP-LX-SM 1490/1550-120 (PAIR) - UPTO 120KM - 10GBase-WDM Bi-Directional SFP+ LC Module
  • MT-SFP-LX-SM 1490/1550-120 (PAIR) - UPTO 120KM - 10GBase-WDM Bi-Directional SFP+ LC Module
  • MT-SFP-LX-SM 1490/1550-120 (PAIR) - UPTO 120KM - 10GBase-WDM Bi-Directional SFP+ LC Module
MT-SFP-LX-SM 1490/1550-120 (PAIR) - UPTO 120KM - 10GBase-WDM Bi-Directional SFP+ LC Module

MT-SFP-LX-SM 1490/1550-120 (PAIR) - UPTO 120KM - 10GBase-WDM Bi-Directional SFP+ LC Module

Rs.160,000.00 PKR Rs.180,000.00 PKR

Best Corporate Products In The world

150000+ Happy & Satisfied Customers

Fast & Secure Delivery All Over Pakistan

Quantity Selector
Description

MT-SFP-LX-SM 1490/1550-120



10GBase-WDM Bi-Directional SFP+ LC Module

  • LC Simplex Connector
  • Single mode 1490/1550nm
  • Up to 120Km

120km fiber SFP module 10G 1490/1550

Description

MT 10G-120Km 1550nm-TX/1490nm-RX 120 km Optical Transceiver Modules enable bidirectional transmission capabilities for high‐speed optical communications modules Conforming to the Small Form Factor Pluggable (SFP) Multisource Agreement, these SFP+ transceivers are designed expressly for high‐ speed duplex PON communication applications that require 10 Gbps data rates, with the laser transmission portion of the device operating at 1490 nm or 1550 nm.

Overview

MT 10G-120Km 1550nm-TX/1490nm-RX 120 km Optical Transceiver Modules enable bidirectional transmission capabilities for high‐speed optical communications modules Conforming to the Small Form Factor Pluggable (SFP) Multisource Agreement, these SFP+ transceivers are designed expressly for high‐ speed duplex PON communication applications that require 10 Gbps data rates, with the laser transmission portion of the device operating at 1490 nm or 1550 nm.

Features

• Hot-pluggable SFP+ footprint.
• Electrical interface compliant to SFF-8431.
• Compliant with SFF-8472.
• 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR.
• 1550nm DFB transmitter, 1490nm PIN photo-detector.
• Distance up to 120km on single mode fiber.
• LC Simplex connector.
• Built-in digital diagnostic functions.
• Single 3.3V power supply.
• Metal enclosure, for lower EMI.
• ROHS compliant and lead-free.

Product Series Fiber Optical Transceiver
Form Factor SFP
Wavelength 1550nm-TX/1490nm-RX
Max Distance 120 km
Transmitter Power 0 ~ 5 dBm
Receiver Sensitivity < -15 dBm
Connector LC Simplex
Environment Operating: 0°C to 70°c
Storage: -40°C to 85°C
Application 10GBASE-LR/10GBASE-LW Ethernet
10G Fiber Channel
10G Data Centre Switches and Routers
10GE Network interface cards and fiber Media Convertors
Data Rate 10 Gb/s
Cable Type SMF
Optical Components DFB/PIN
Extinction ratio > 3.5 db
Receiver Overload > 0.5 dBm
