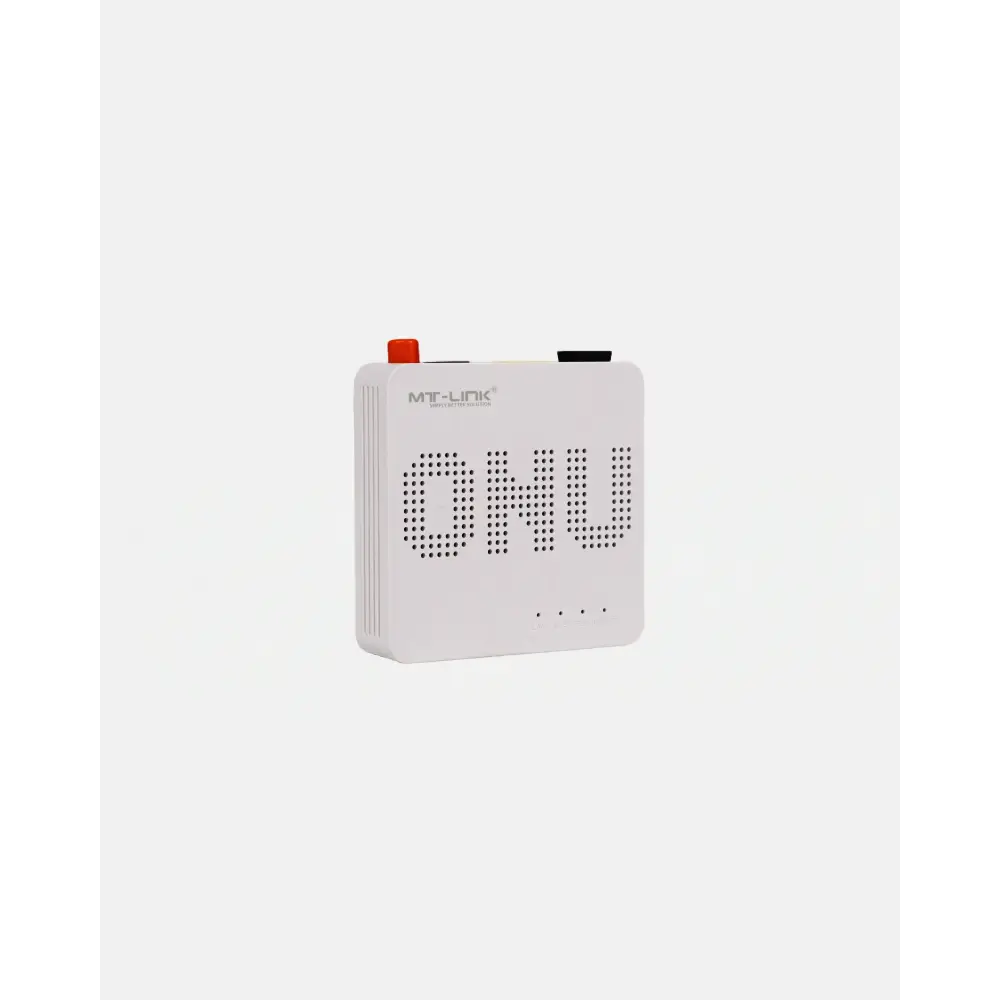

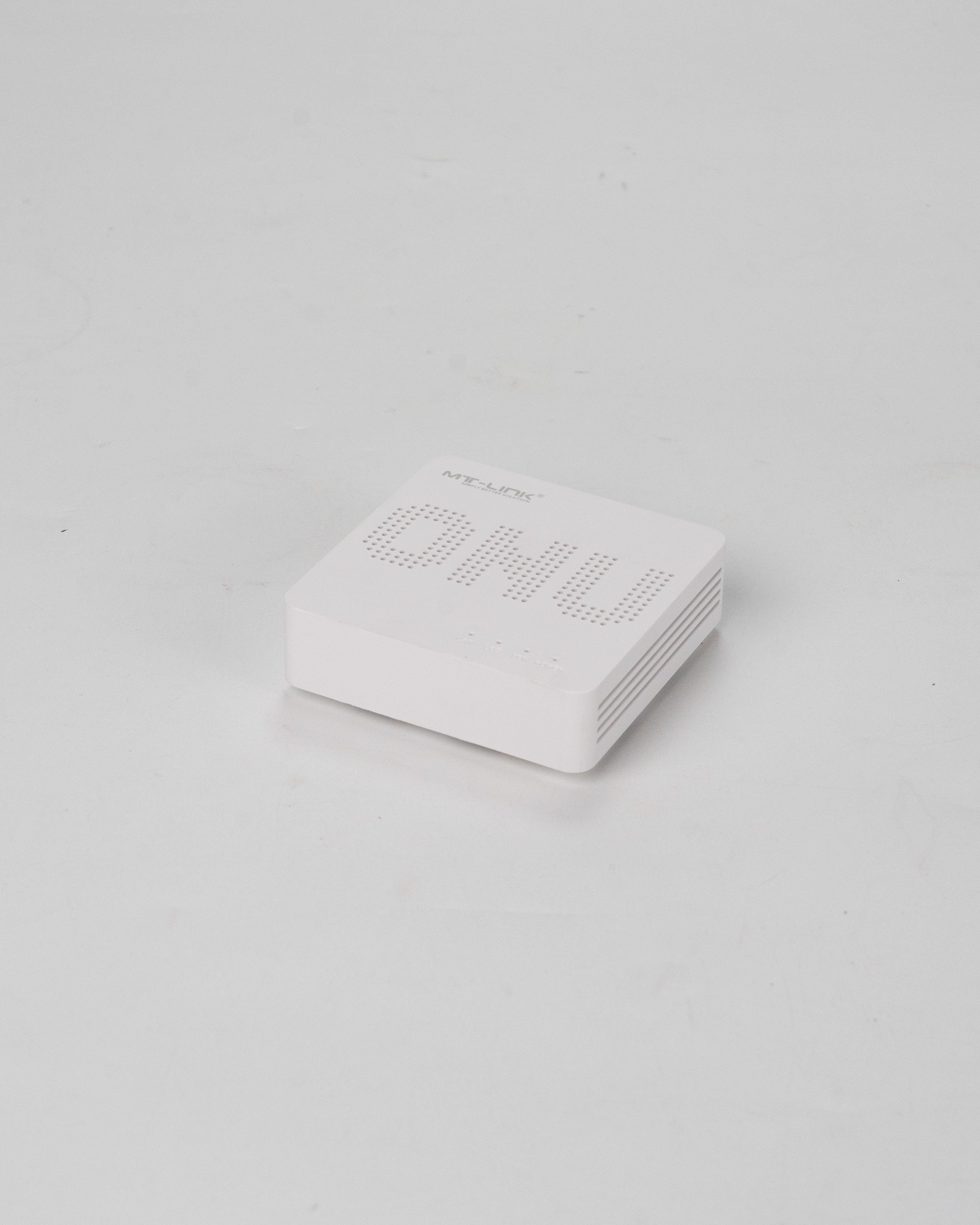

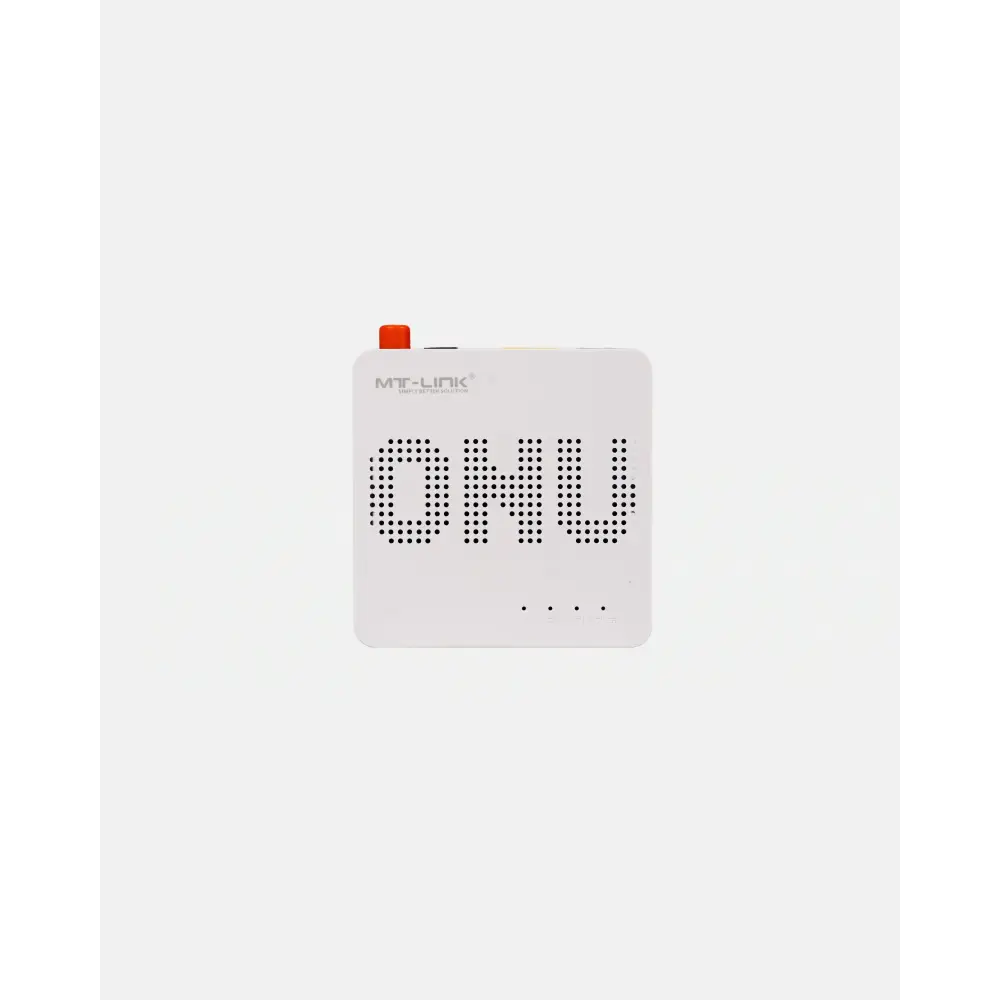

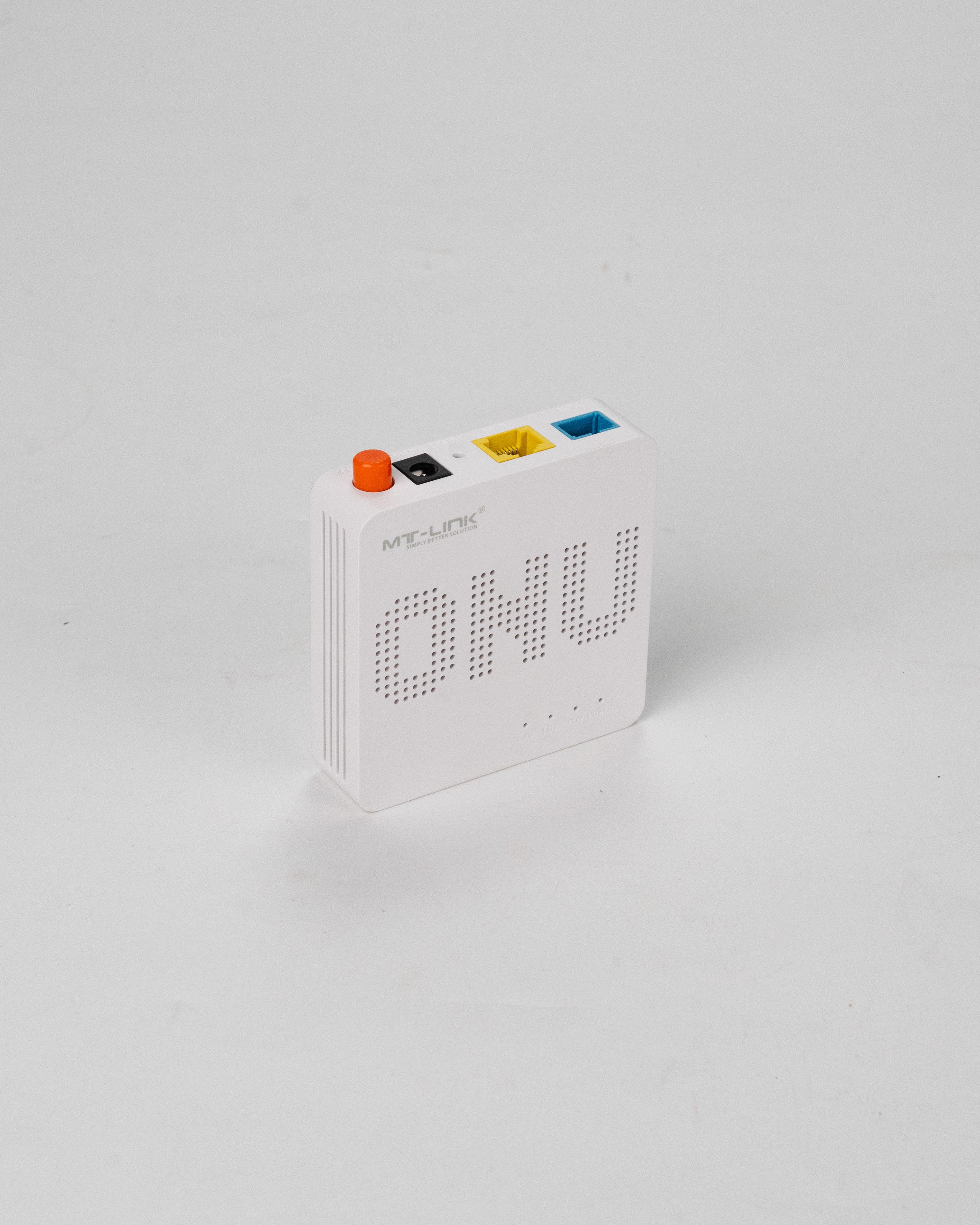

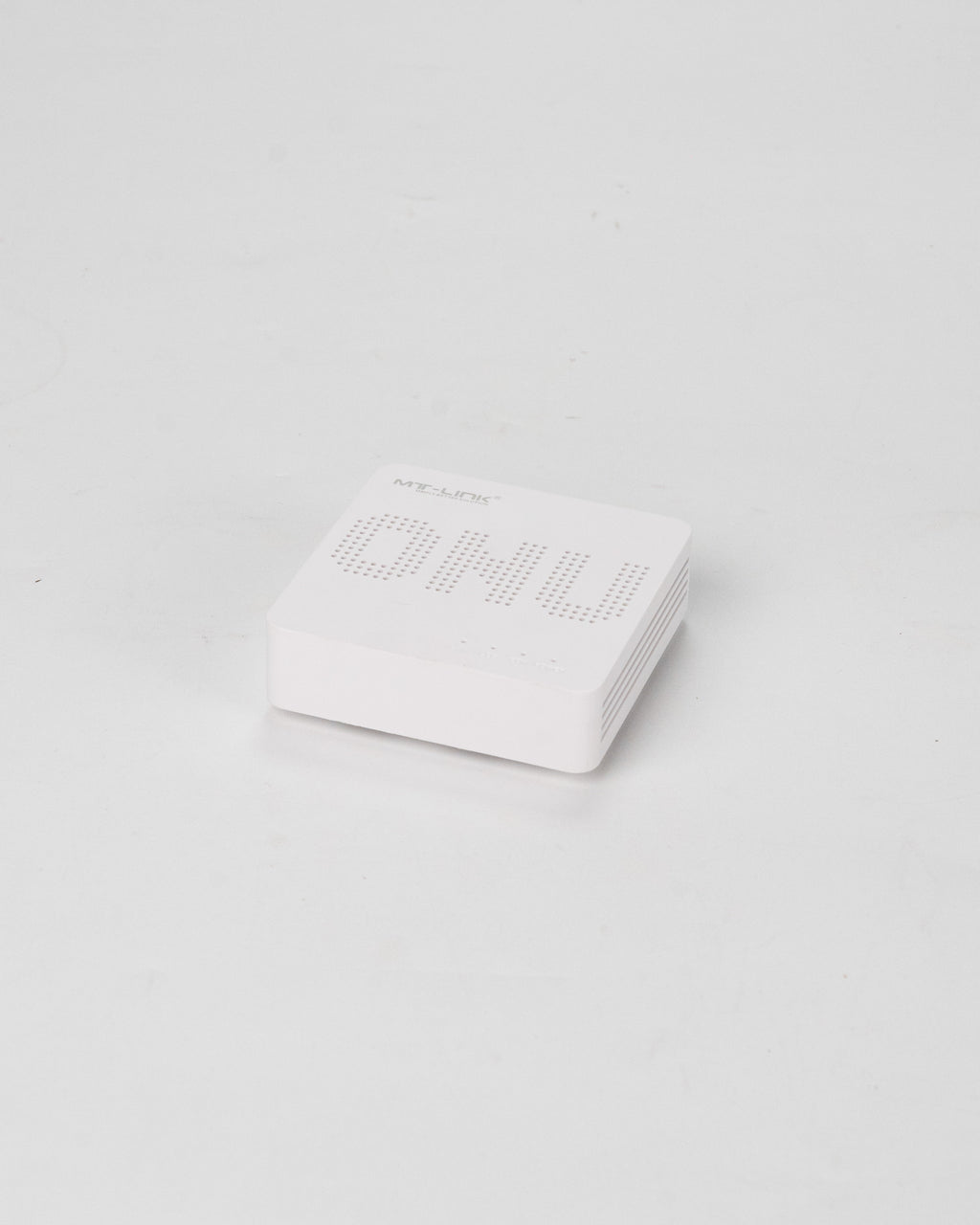

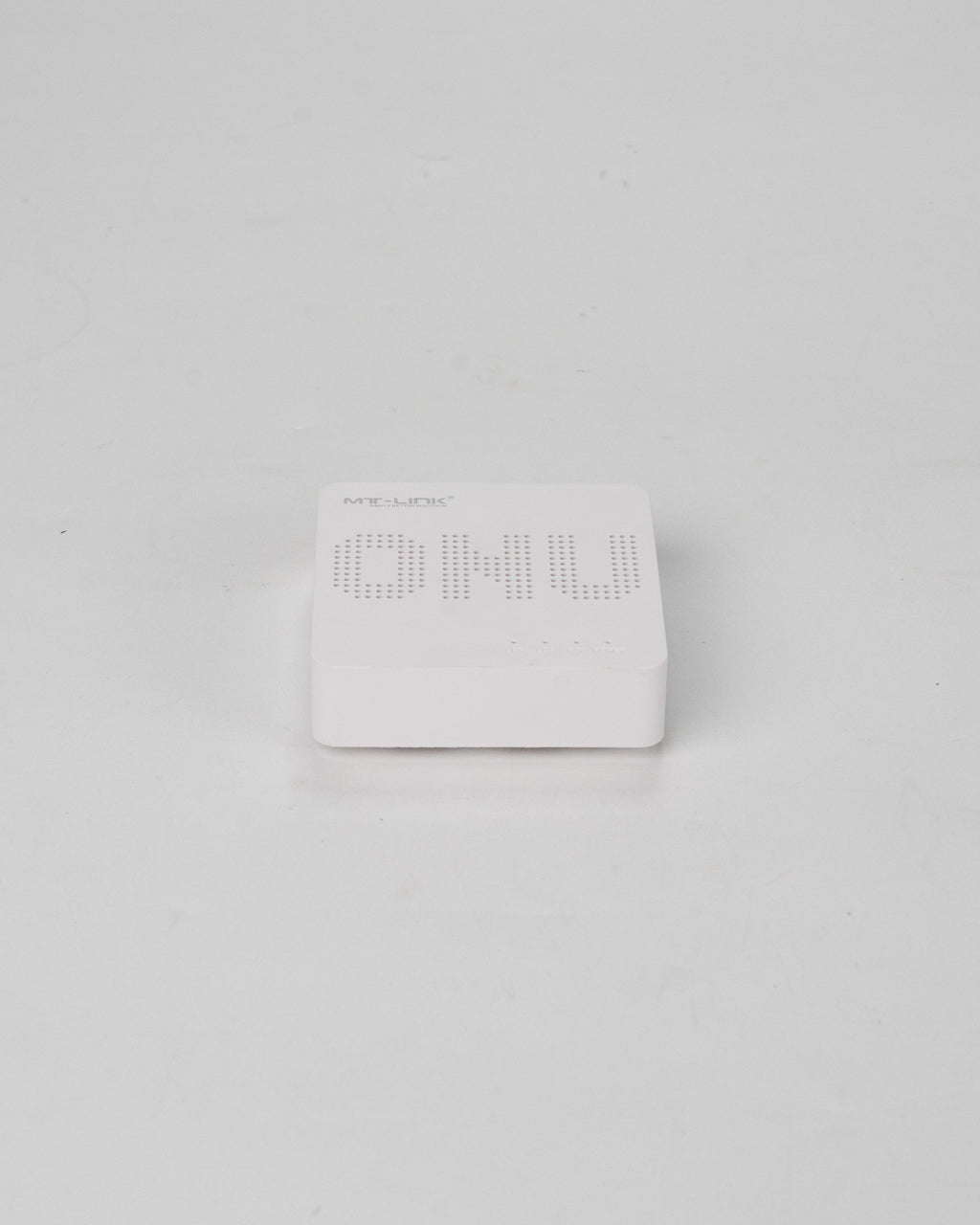

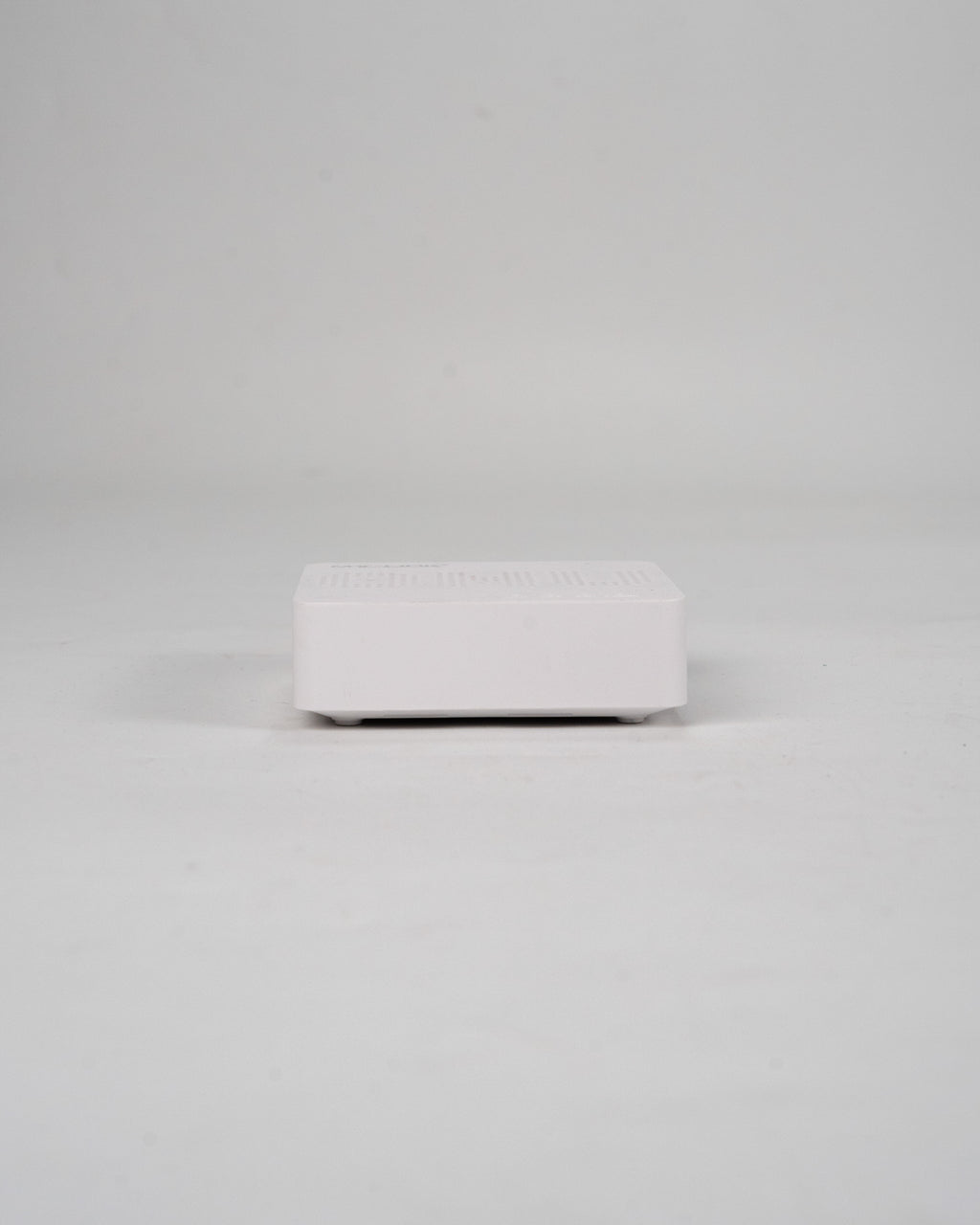

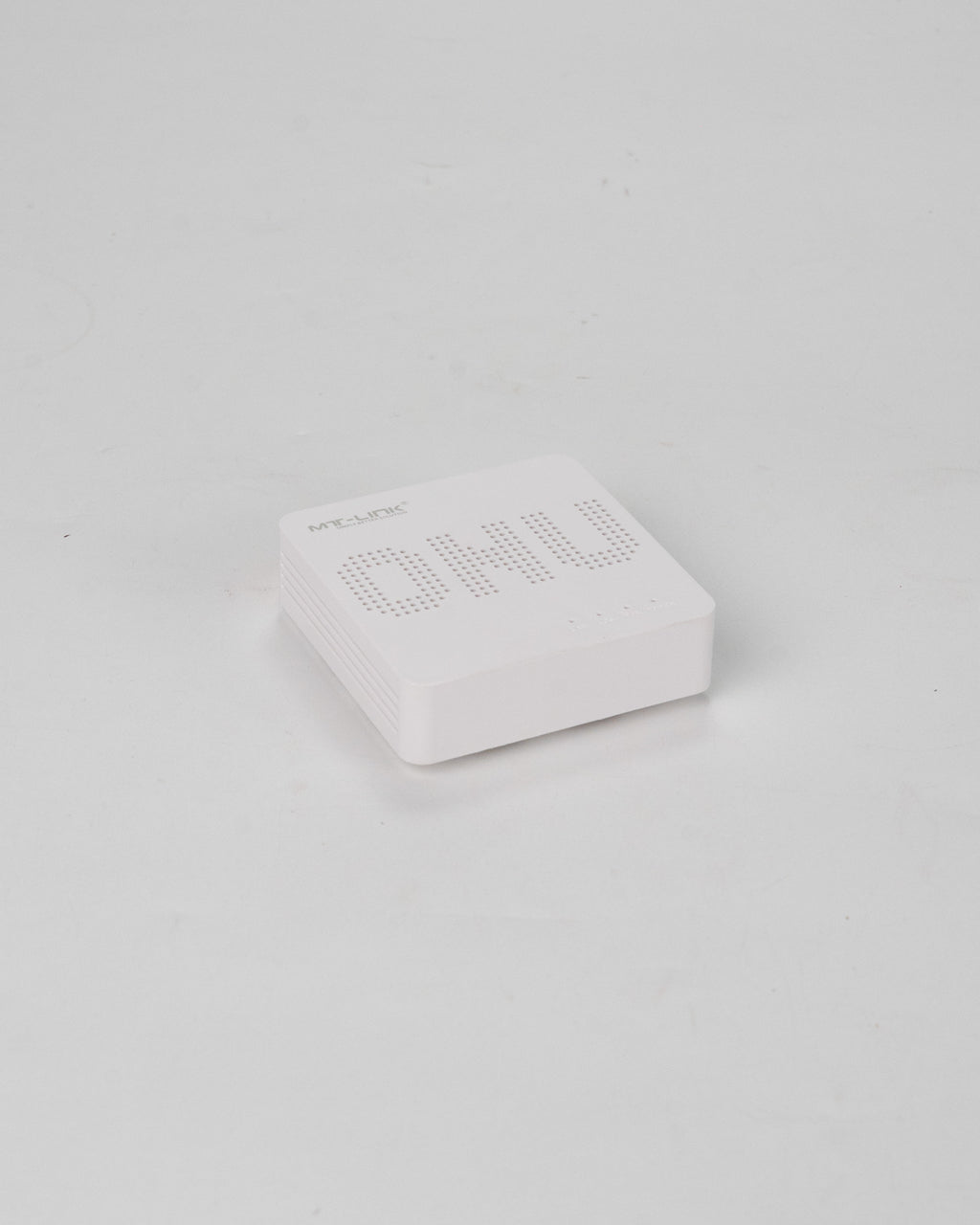

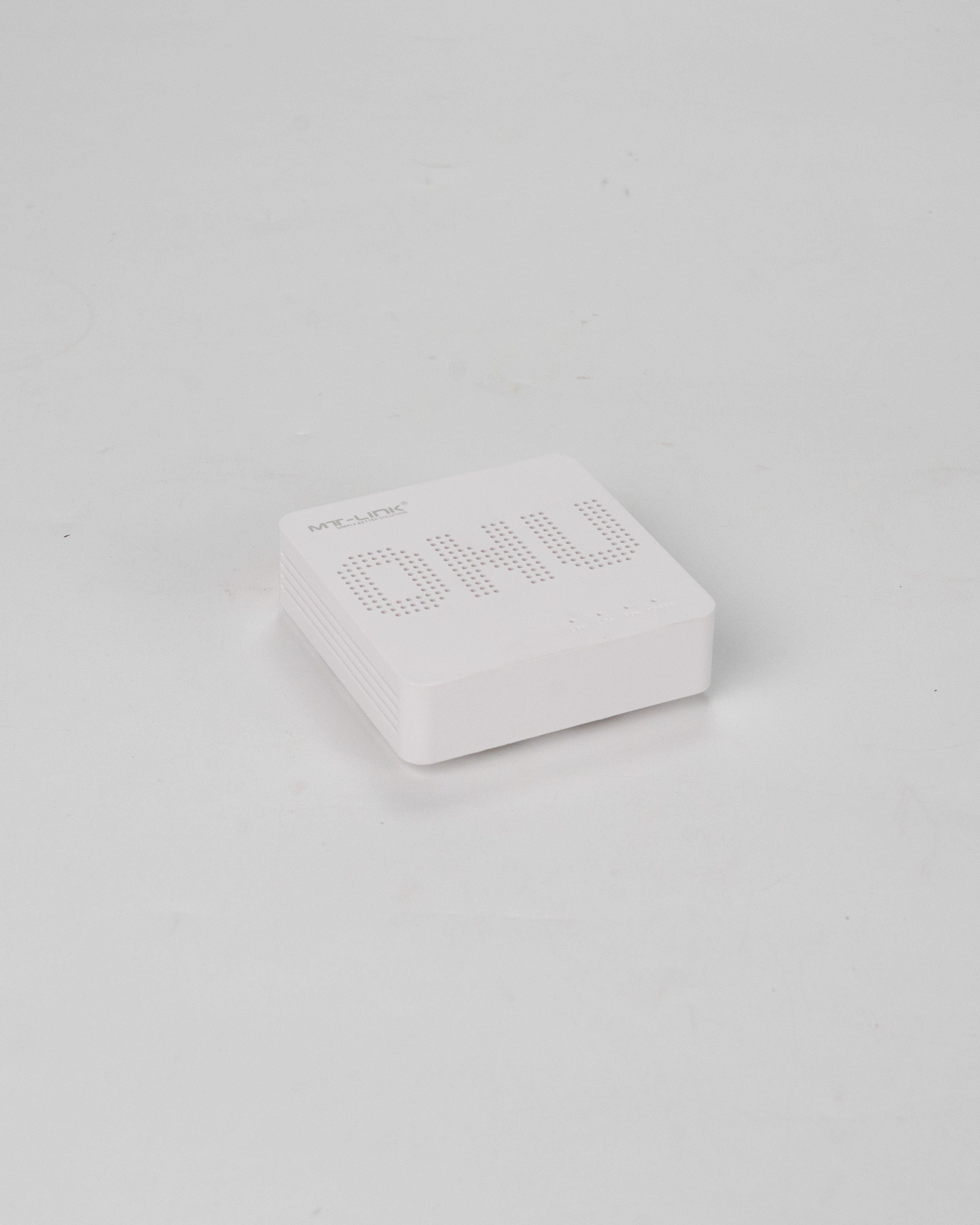

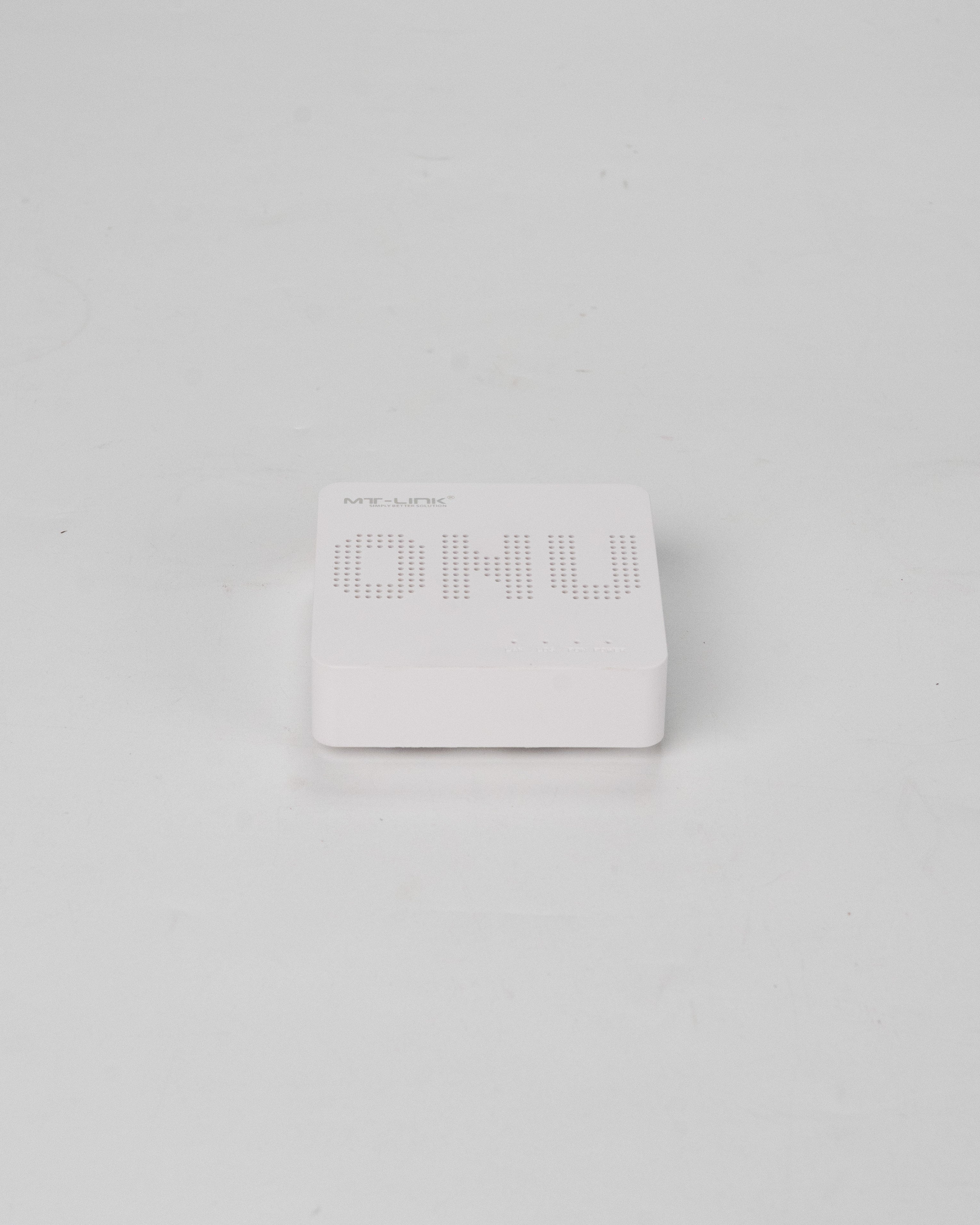

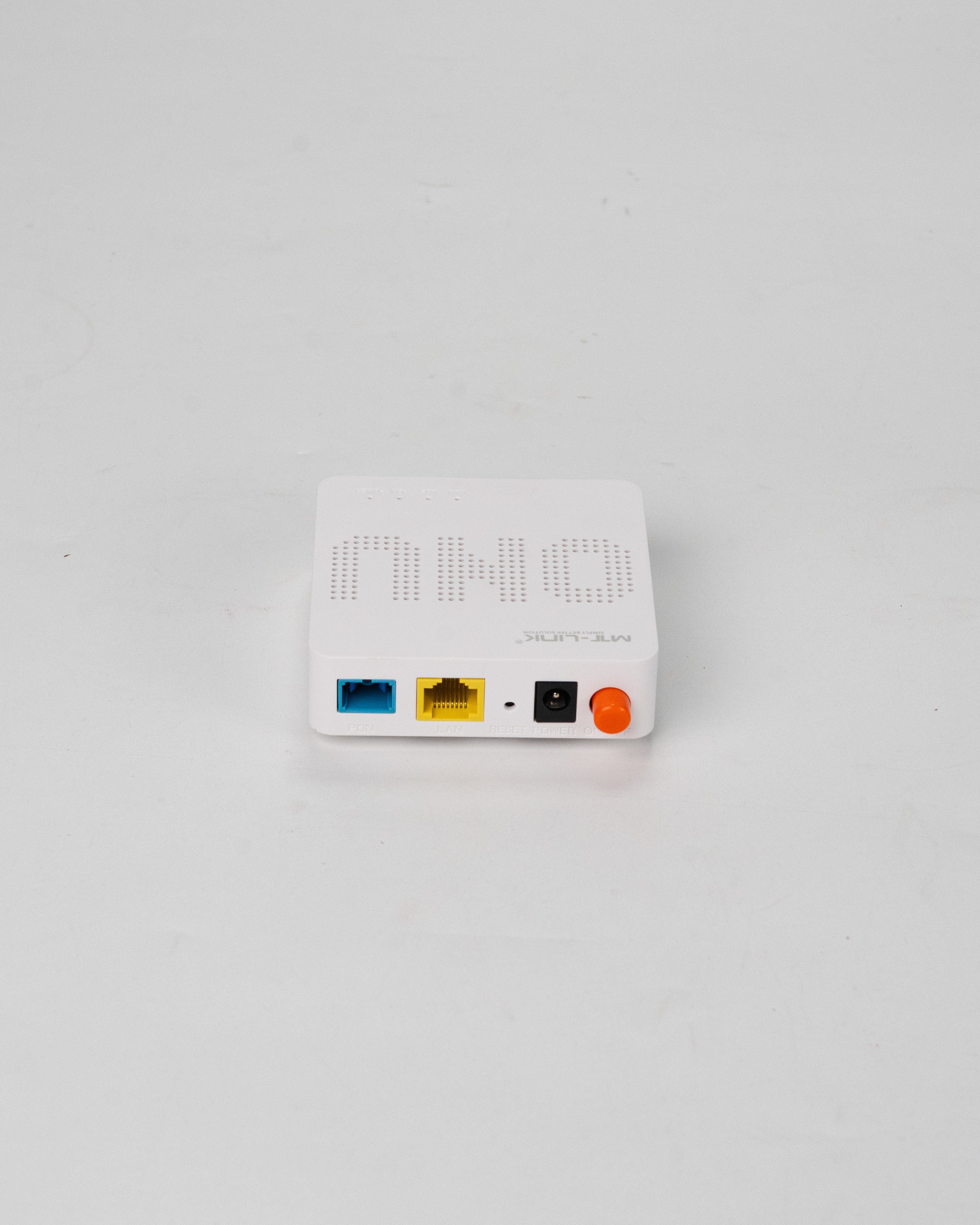

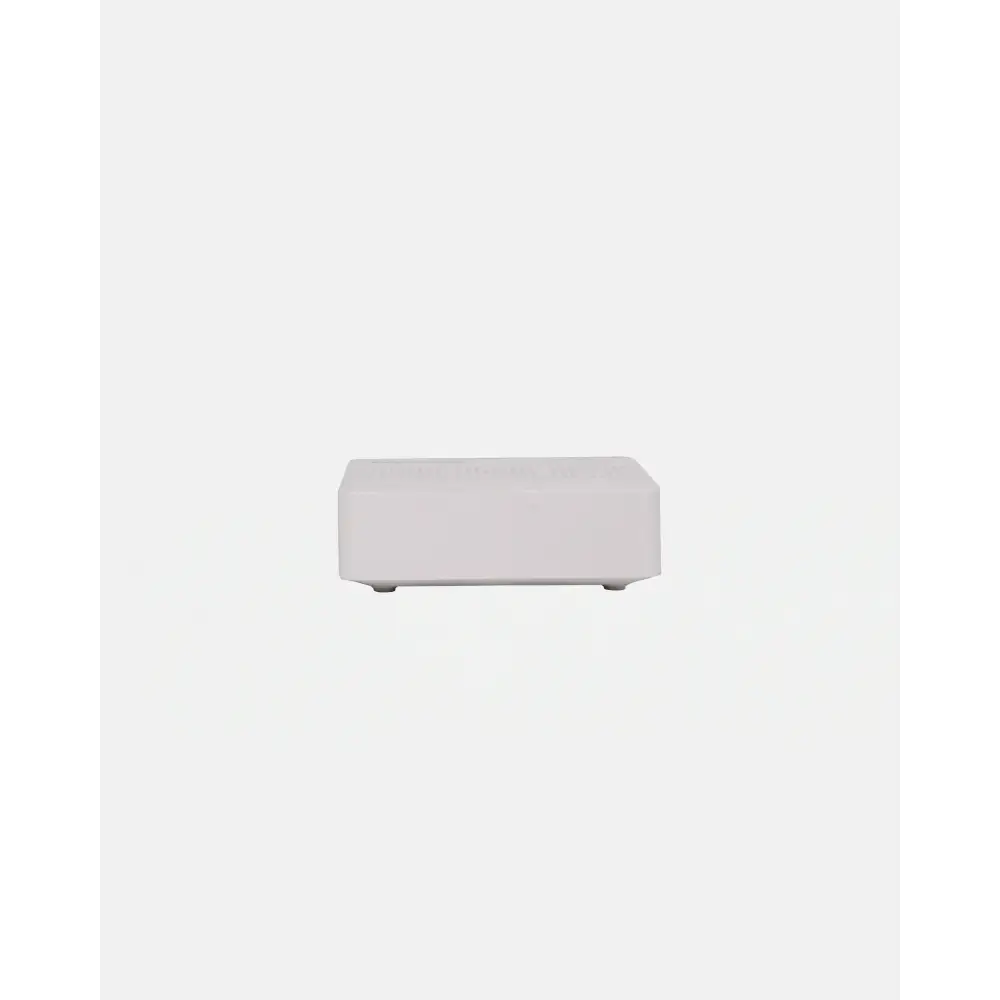

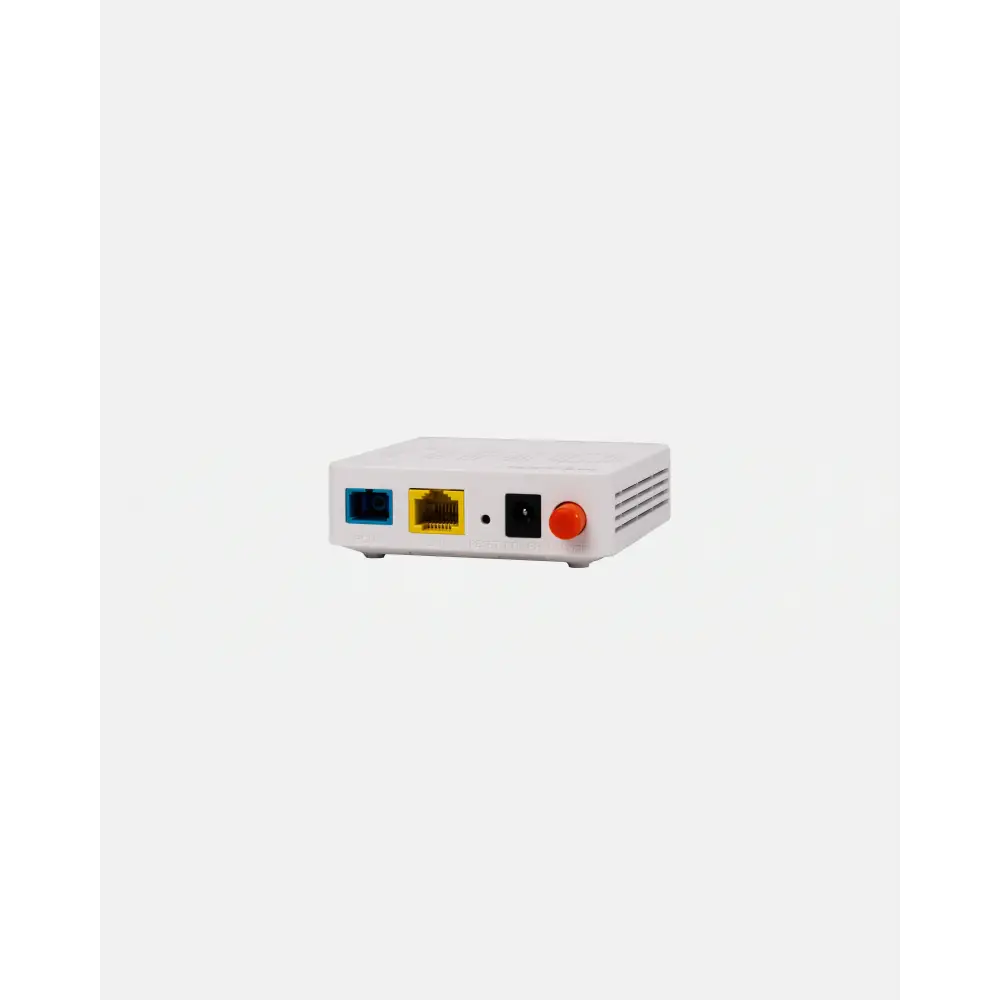

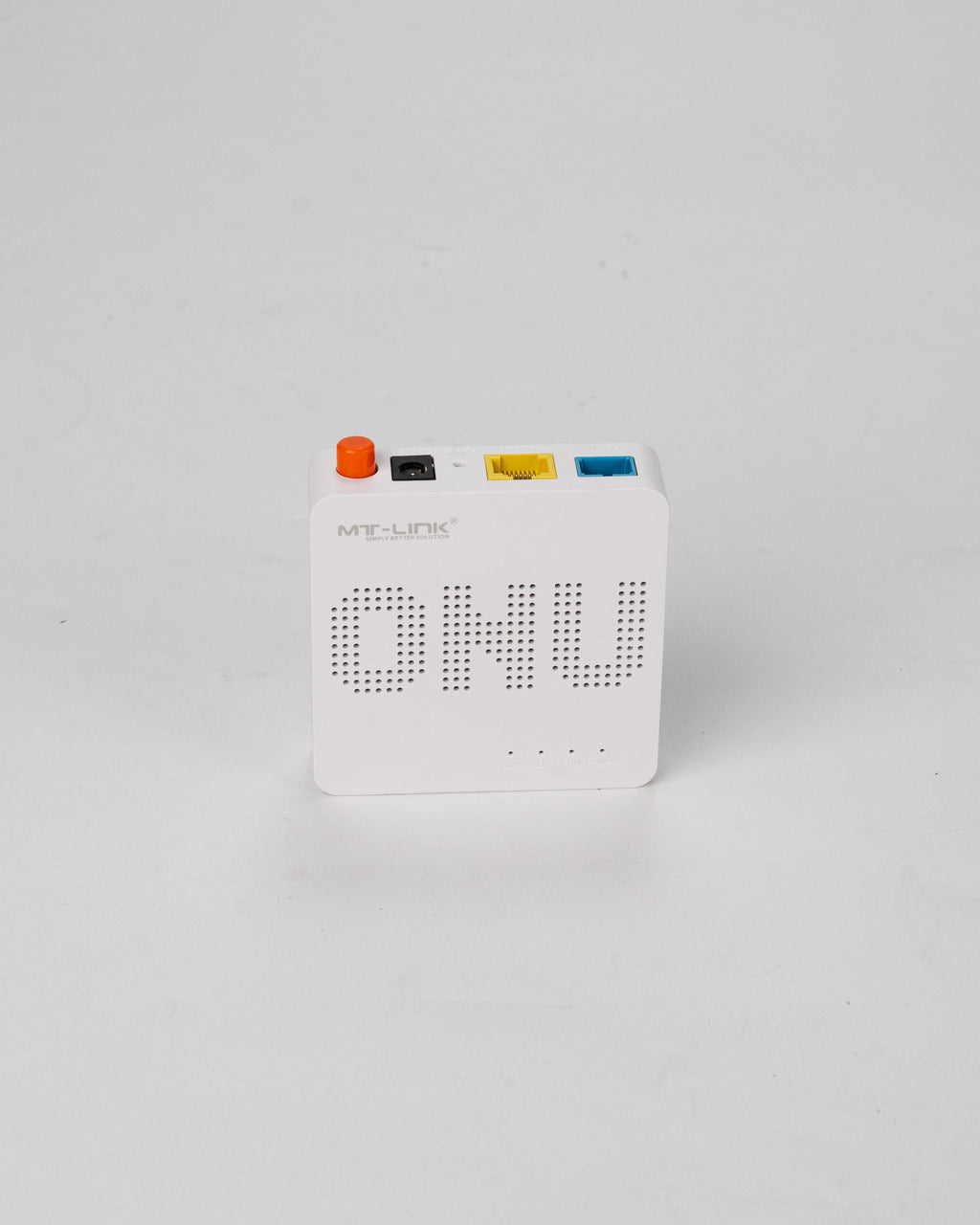

MT-1601 - 1*1000M Ethernet interface (RJ45)

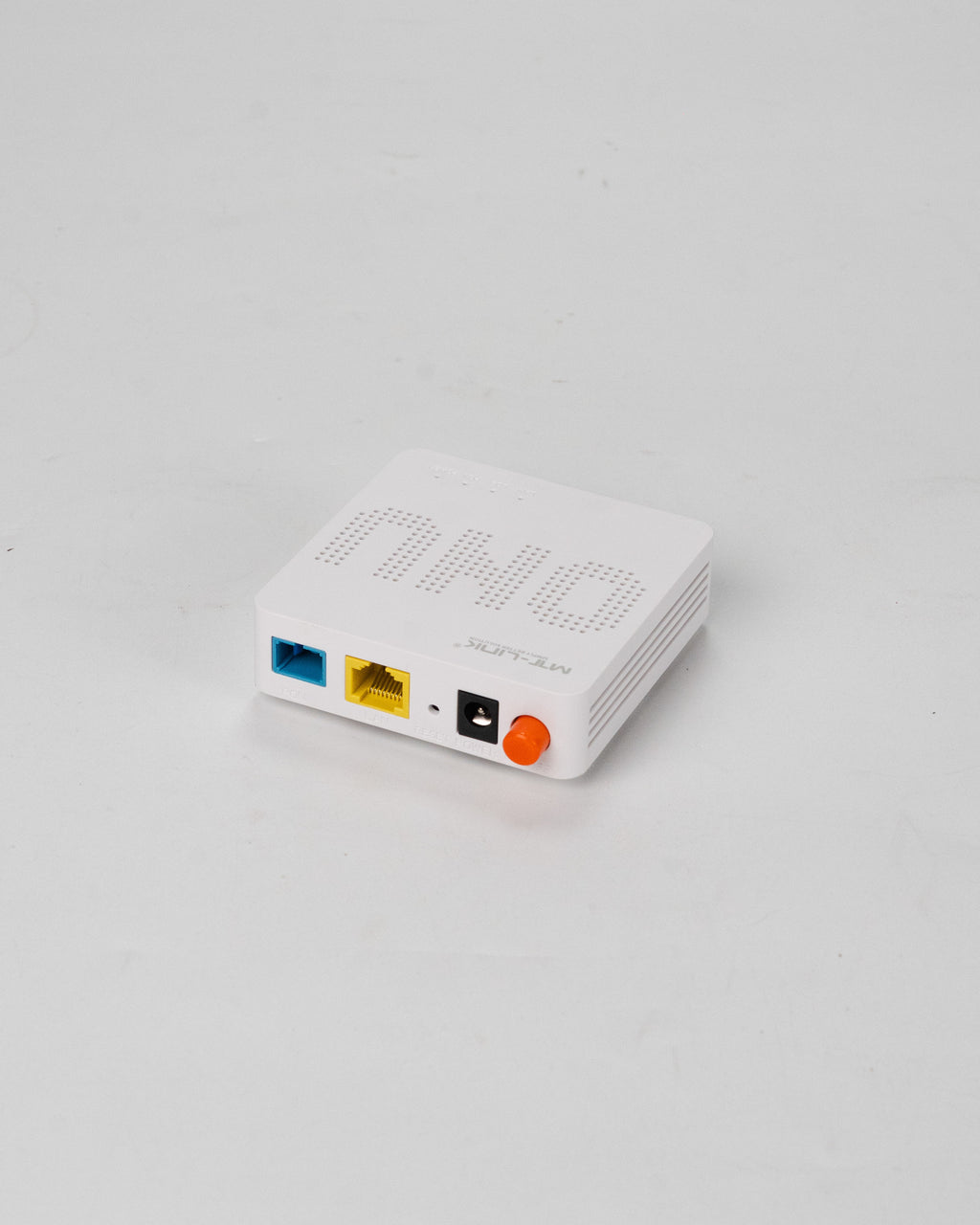

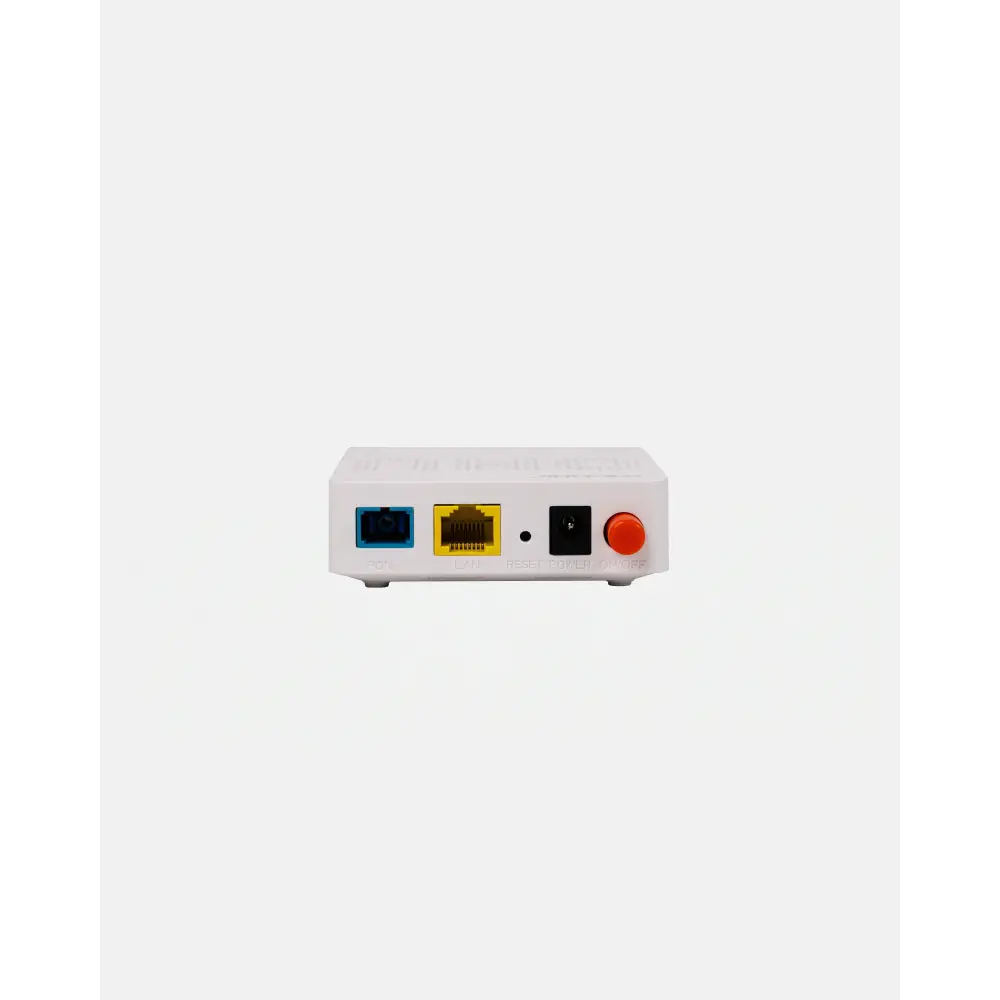

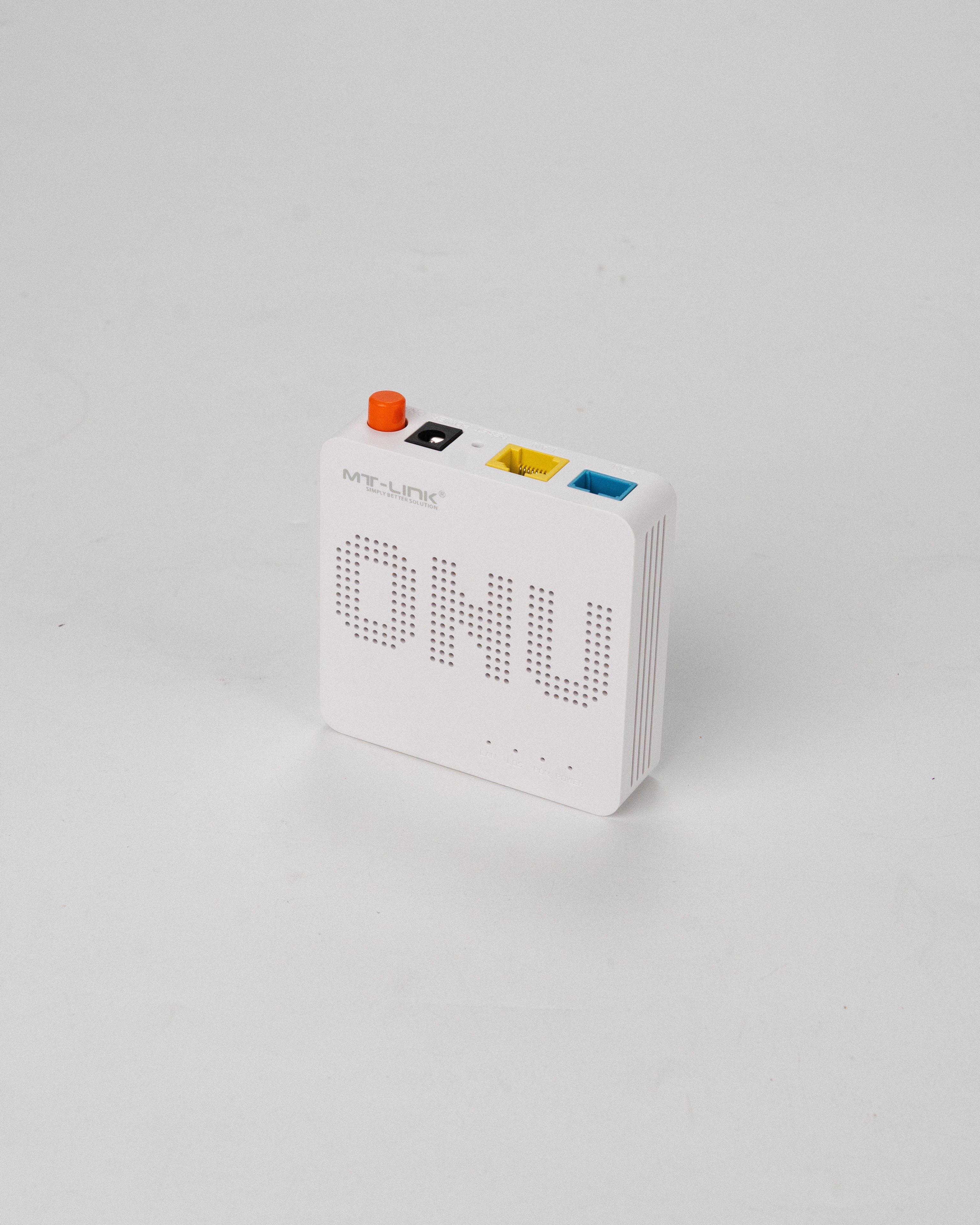

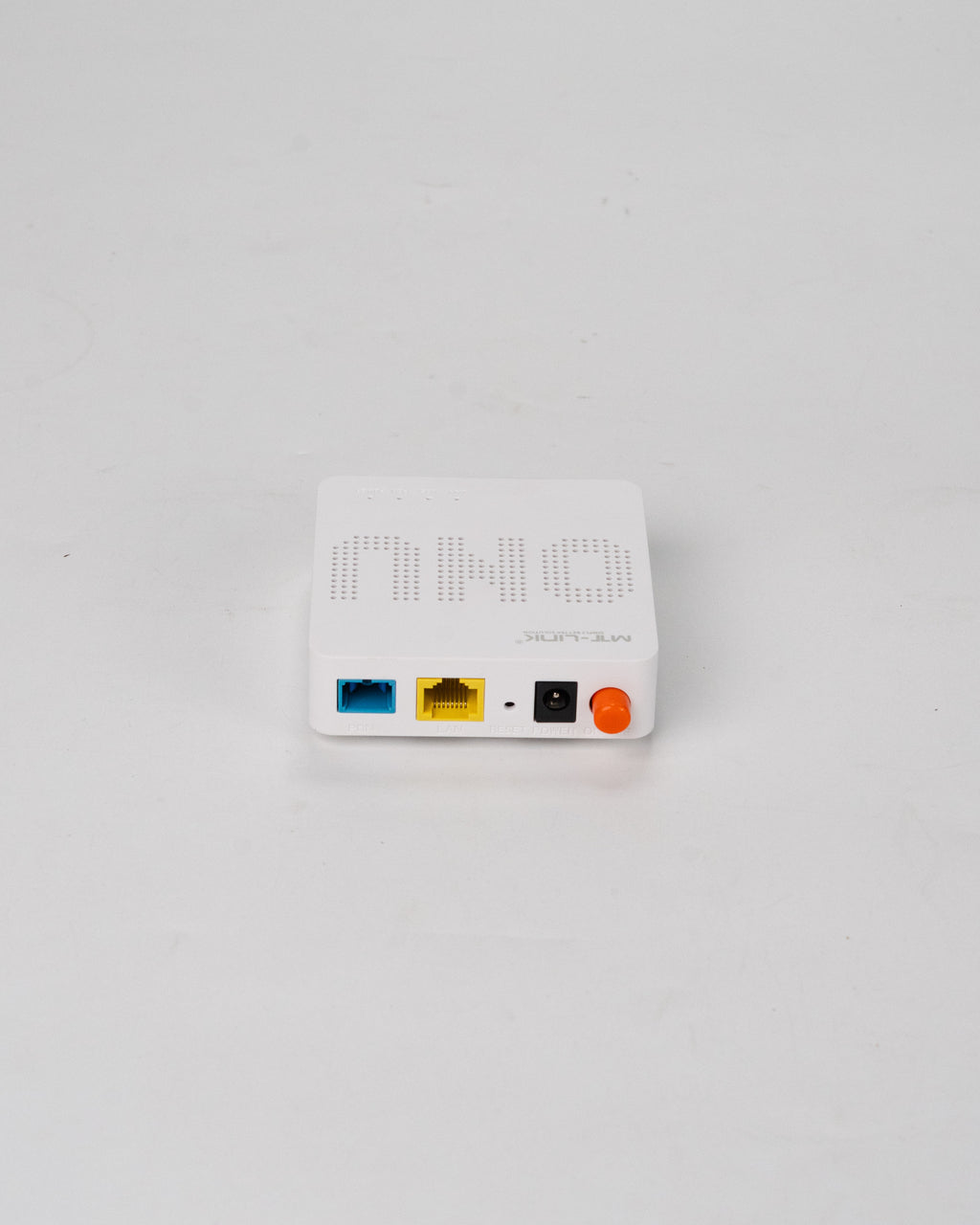

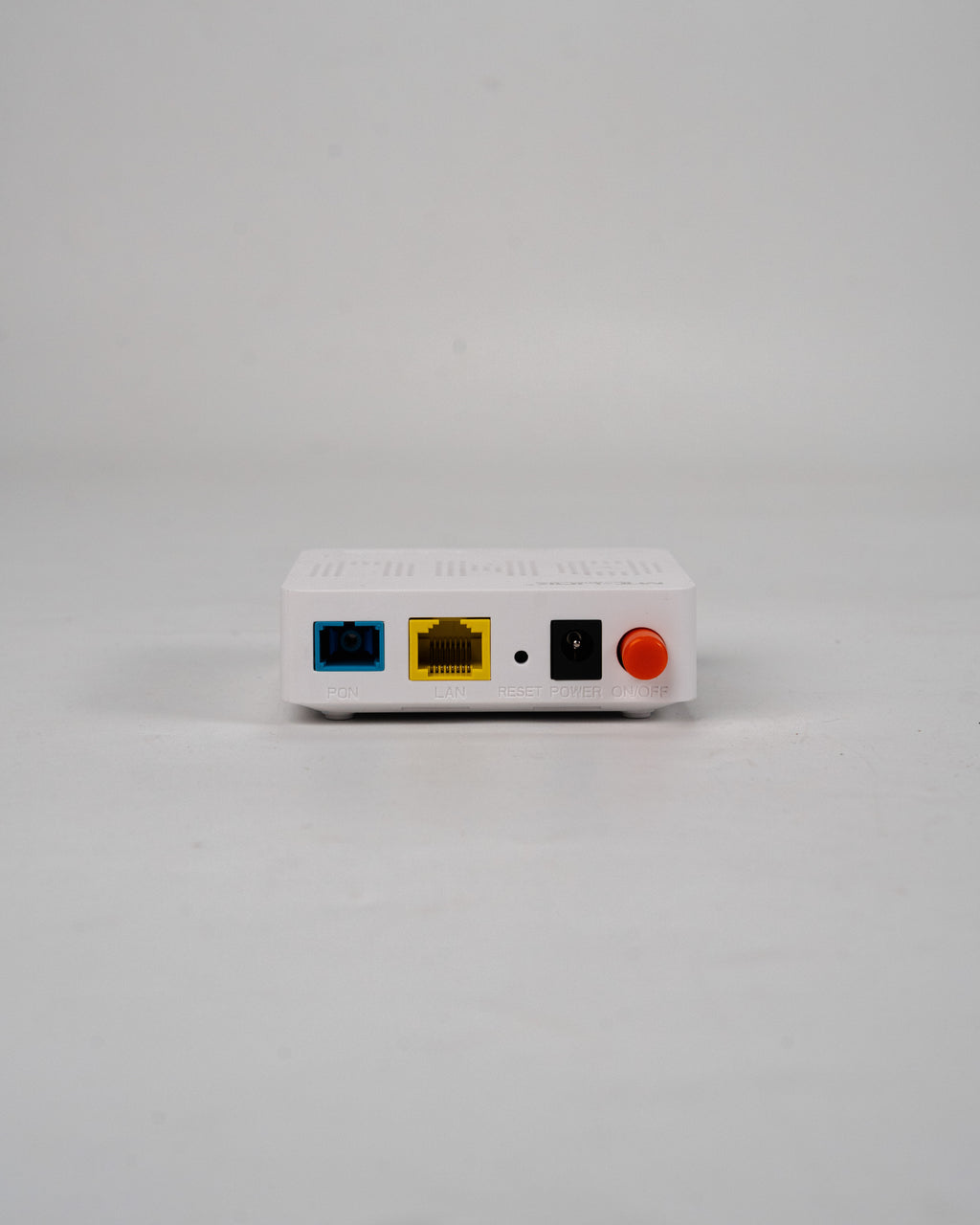

Structure: 1*1000M Ethernet interface (RJ45)；1*EPON/GPON adaptive interface.

Setting: Set up through the web interface or the management software that comes with the optical modem
Value: Usually lower than multi-port optical modems, suitable for users with limited budgets.
Consumption: Low power consumption and more energy-saving and environmentally friendly.
Scenario: Only one router in the home needs to connect to the Internet

Small single port optical network unit is a fiber optic access terminal device that converts optical signals into electrical signals and provides an Ethernet interface. It is usually provided by telecom operators for home broadband access.

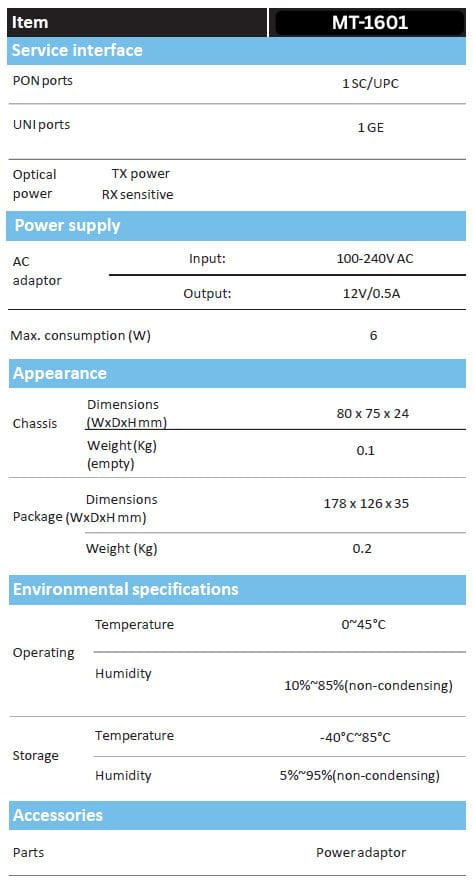

Specifications

User interface
1* 10/100/1000M RJ45 port

Pon
EPON&GPON mode adaptive lnterface Type: SC-UPC/SC-APC Network coverage radius: 20KM
GPON: upstream 1.25Gbps /down stream 2.5Gbps Optical receive sensitivity: ≥-7~-28dBm Continuo us light power: 0.5dBm~+5dBm
EPON: upstream 1.25Gbps /down stream 1.25Gbps Optical receive sensitivity: ≥-7~-27dBm Continuo us light power: 0dBm~4dBm

Ethernet
1*10/100/1000M auto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance

Size
105mm(L)×85mm(W)×25mm(H)
Environment
Operating temperature: 0℃ 60℃ Operating humidity: 10% 85% (non-condensing Storage temperature: -40℃ 80℃ Storage humidity: 5% 95% (non-condensing)

Power supply
12V 0.5A DC power interface size: 2.1mm/ 5.5mm

Power
3W

Man
Web/ TELNET/ TR069/ OAM/ OMCI

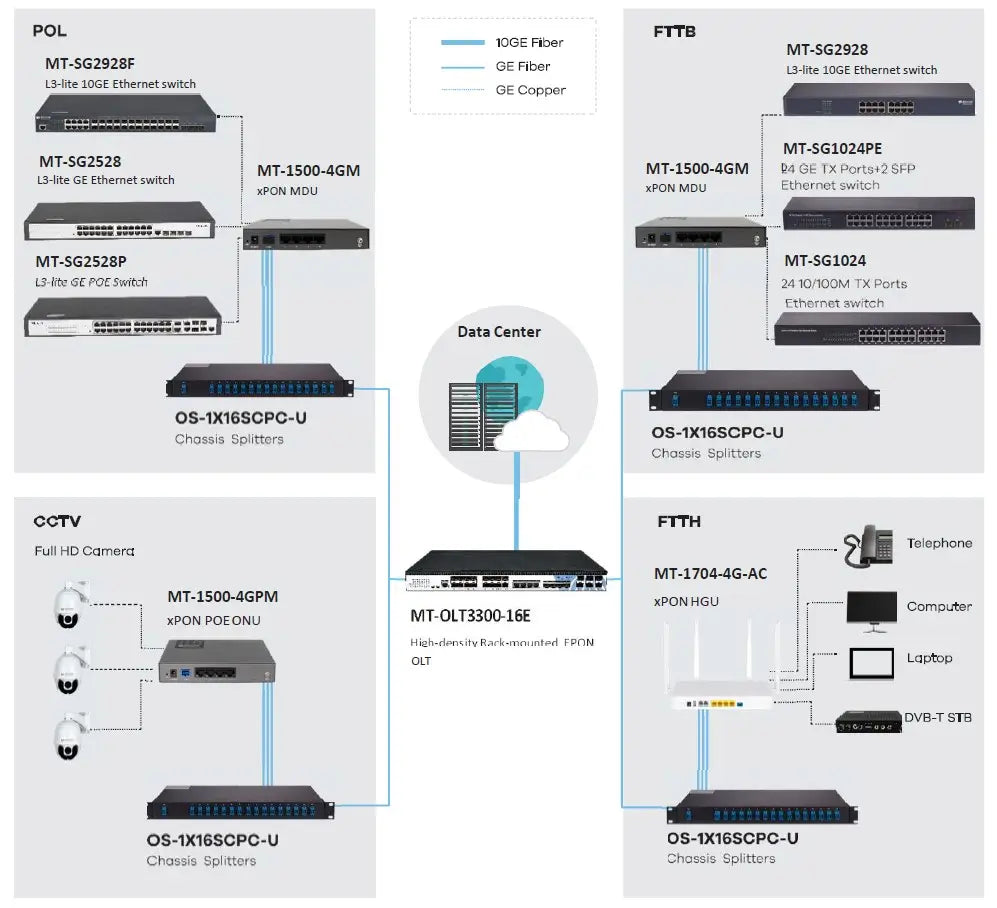

Application Diagram
