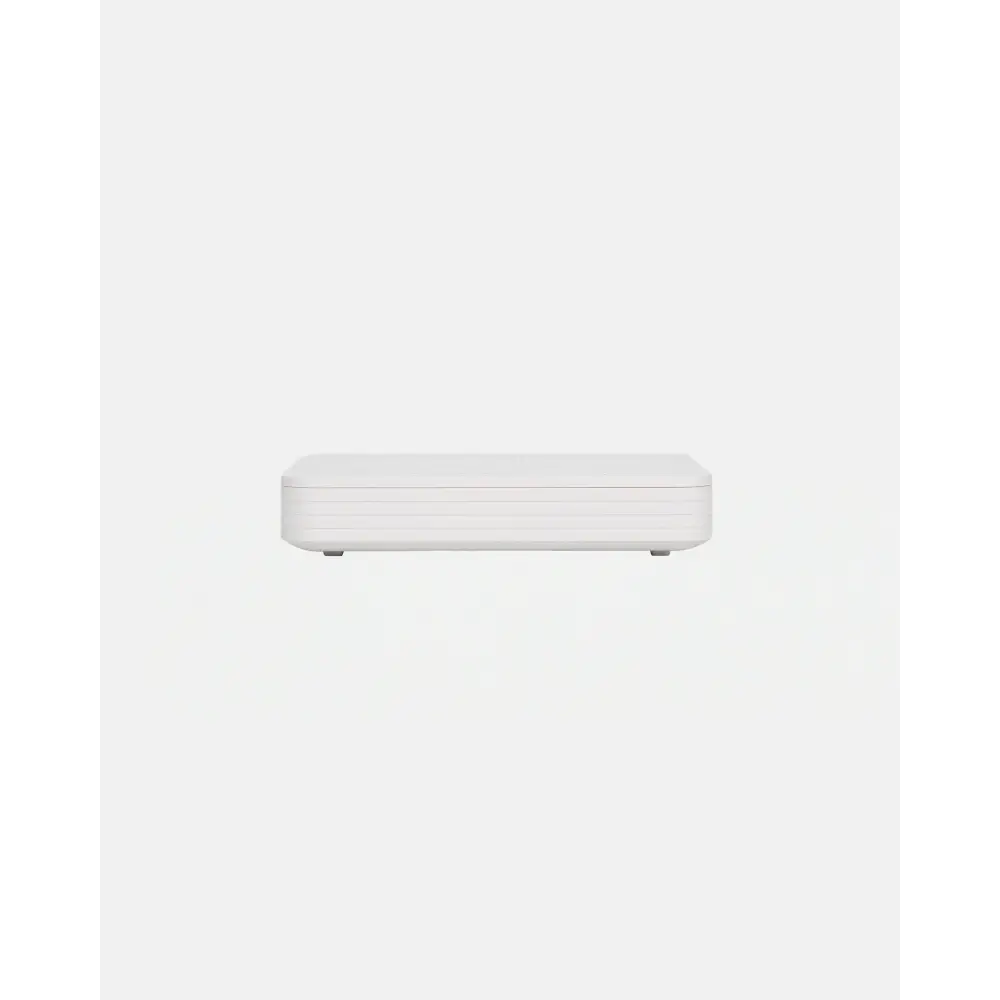

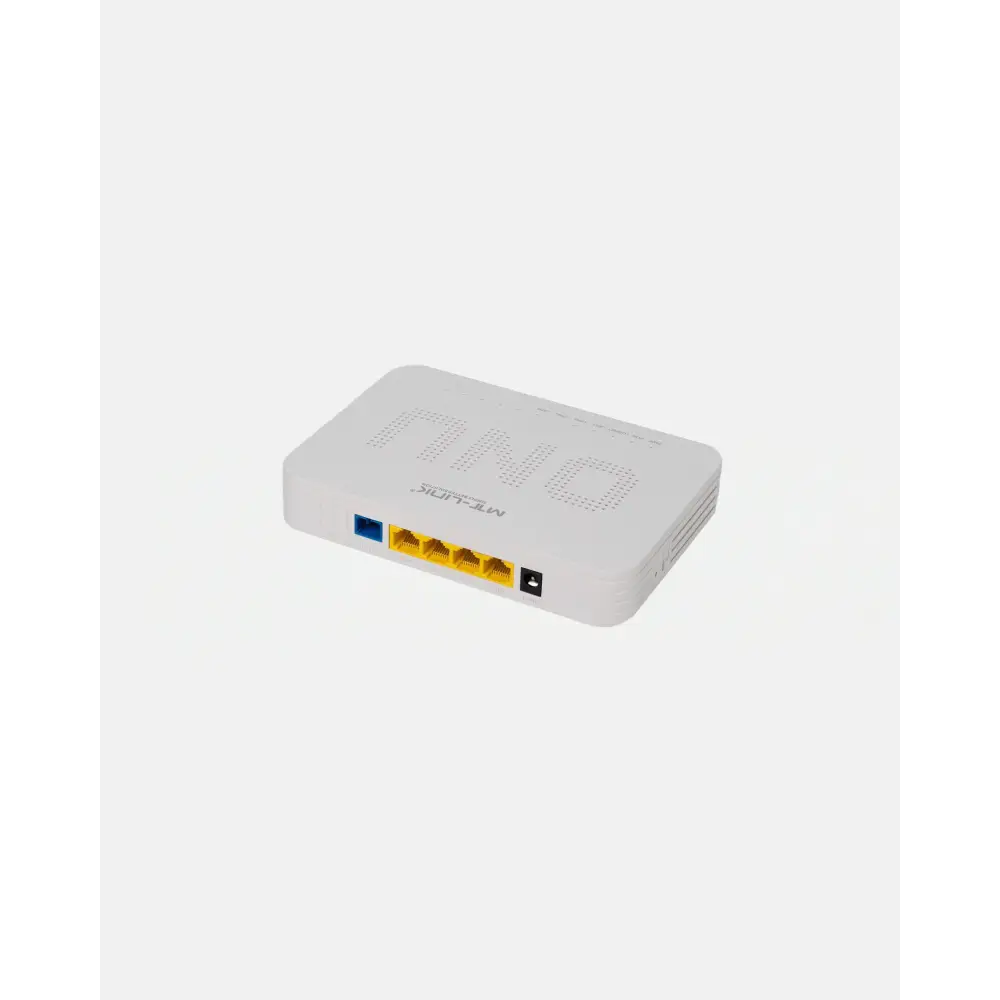

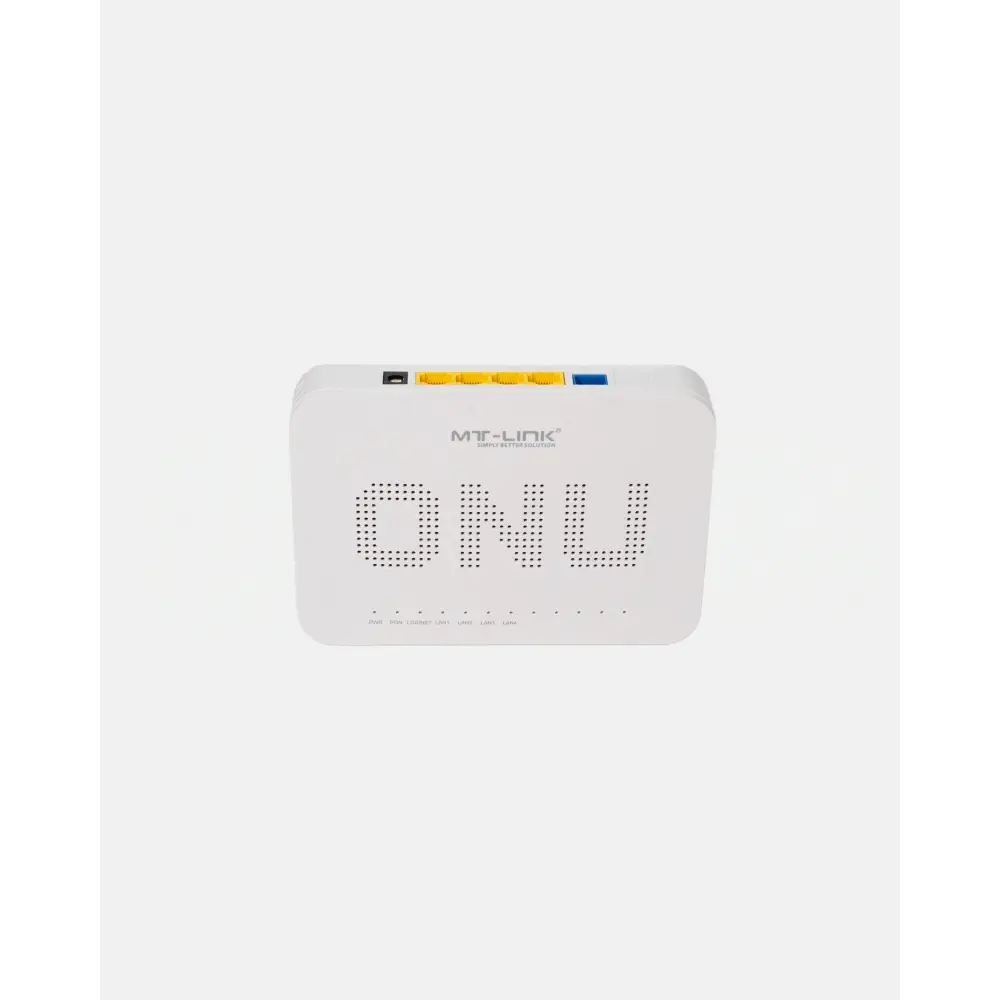

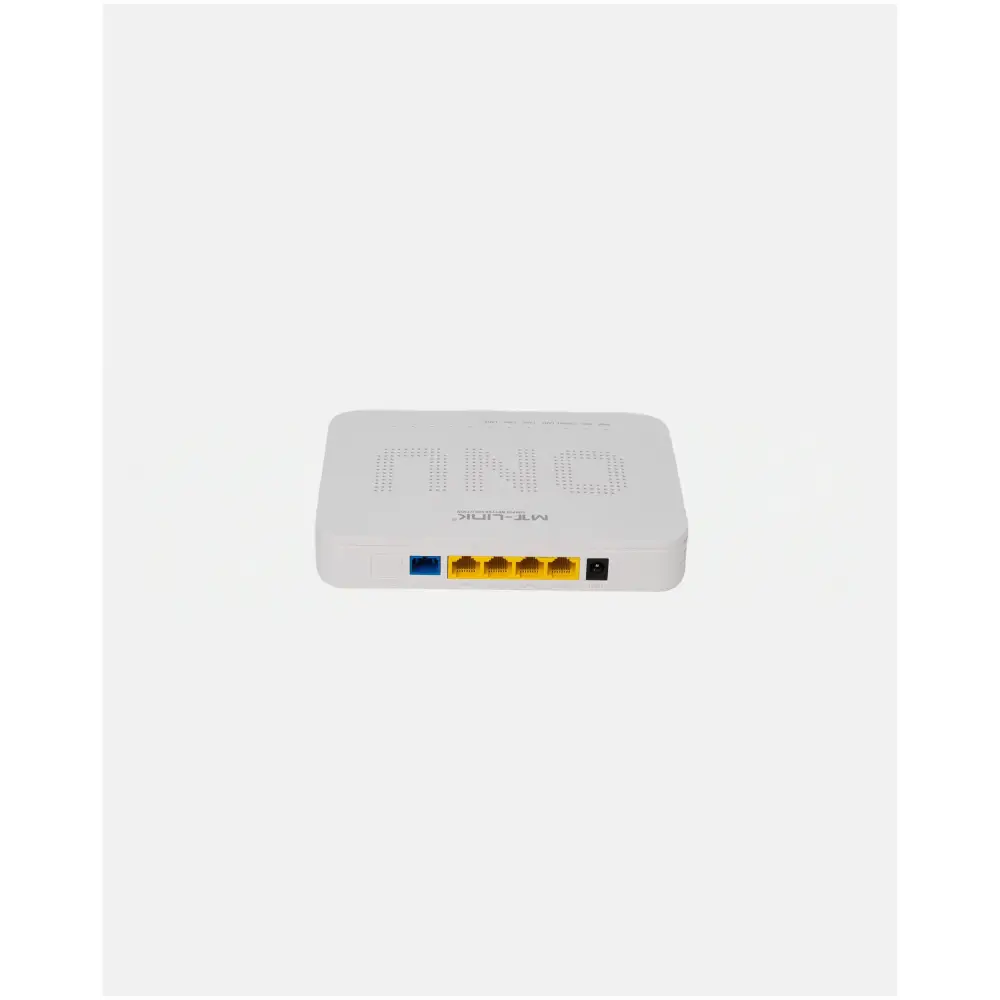

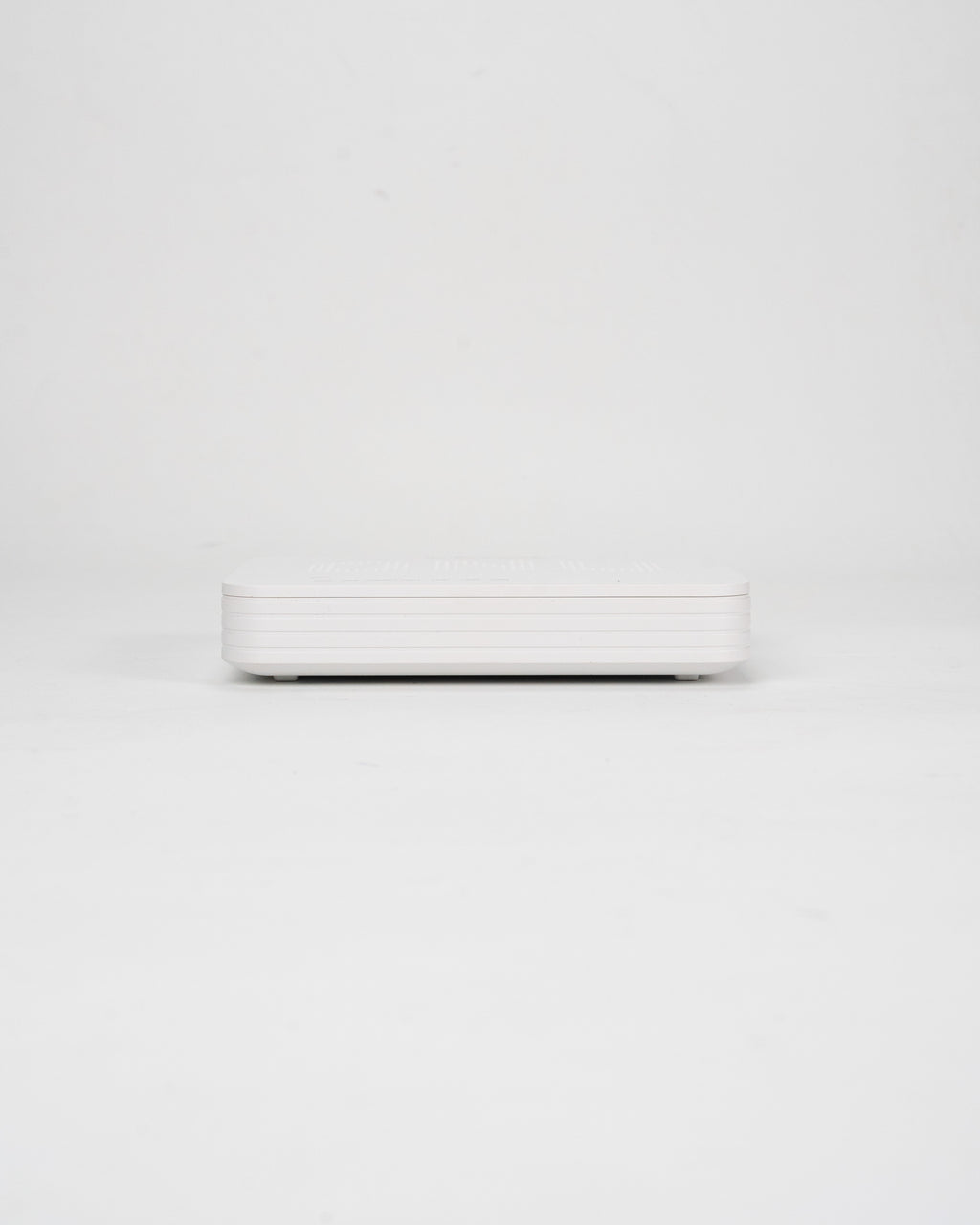

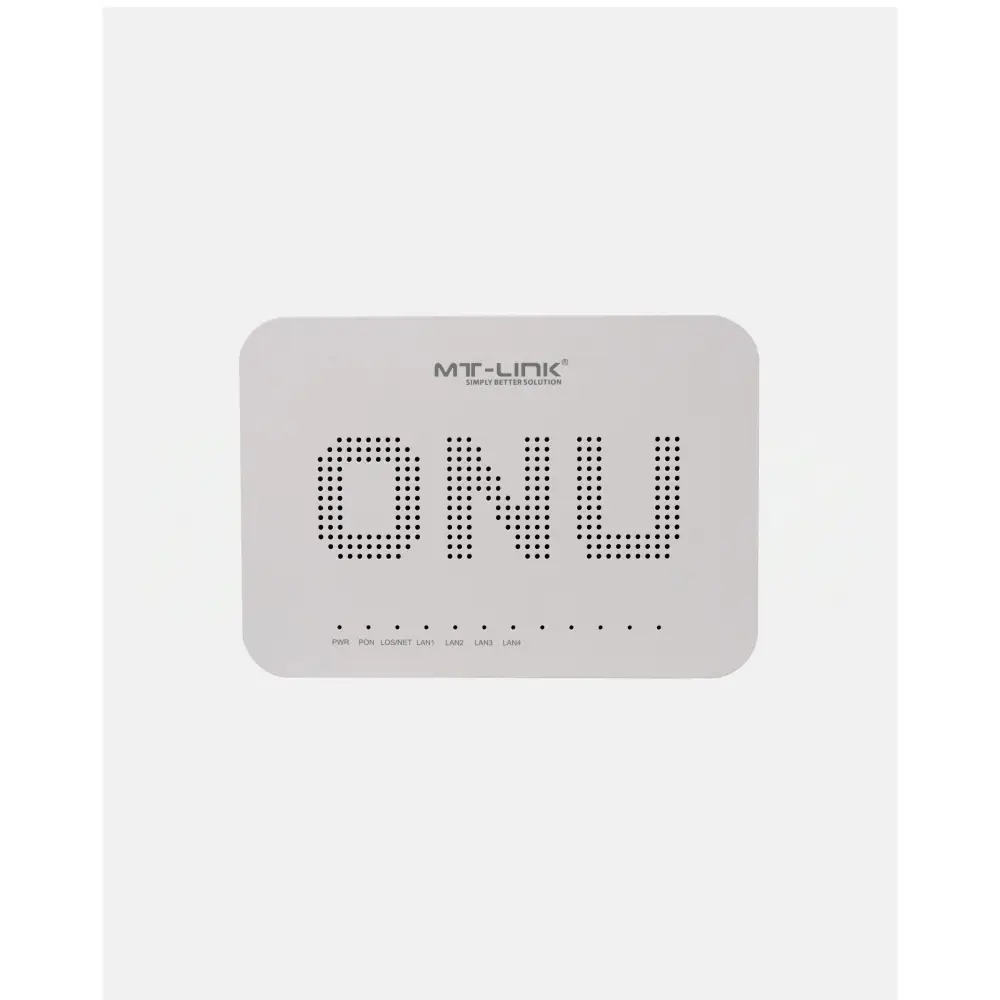

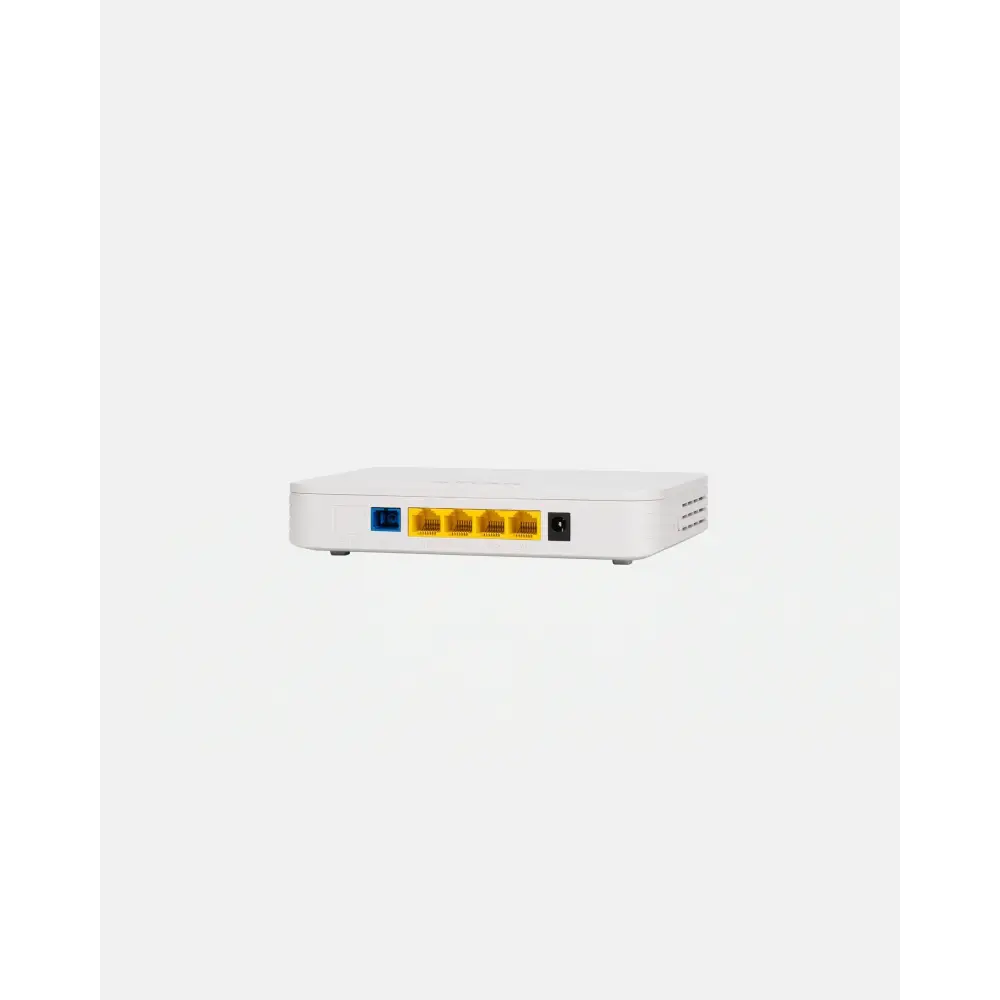

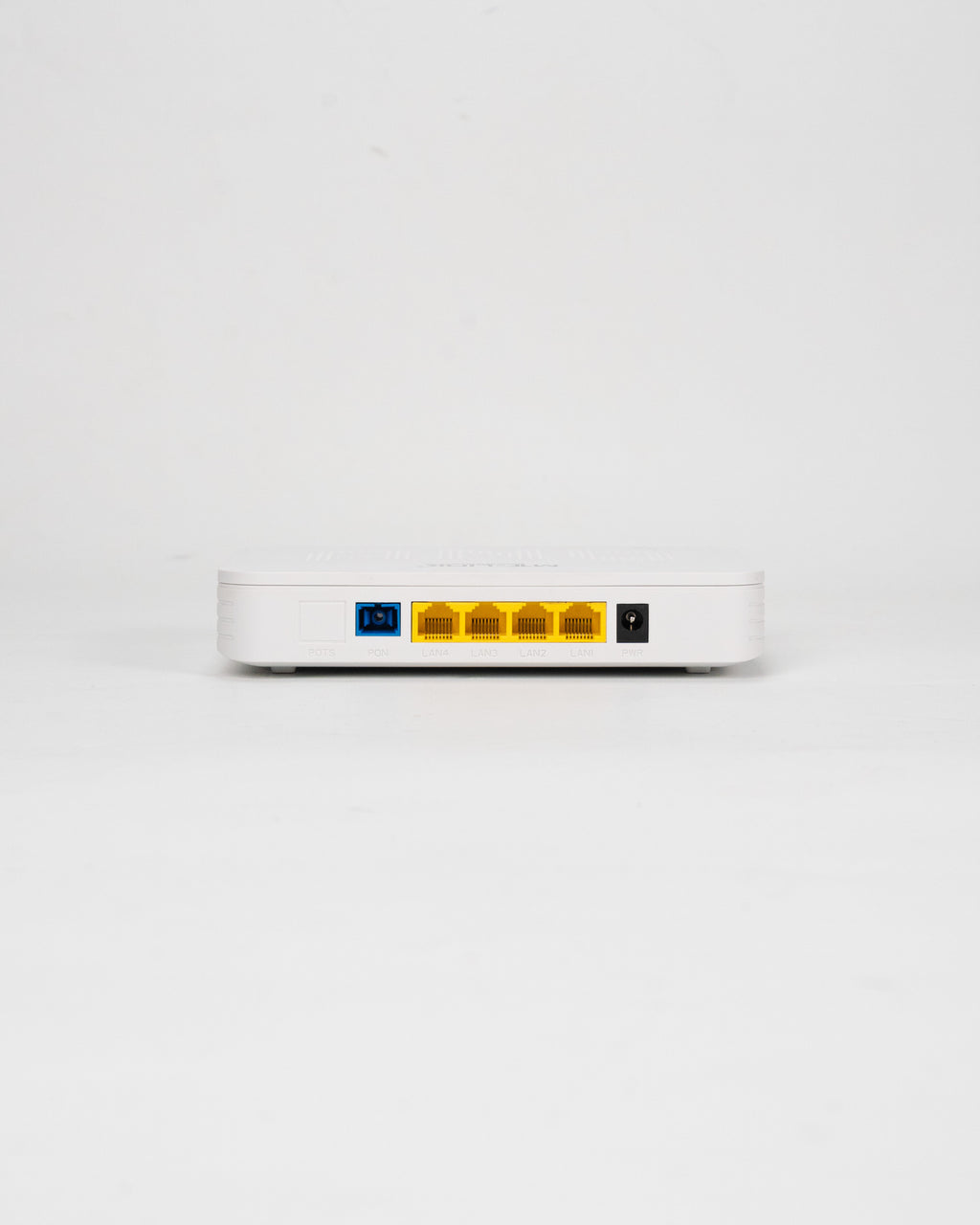

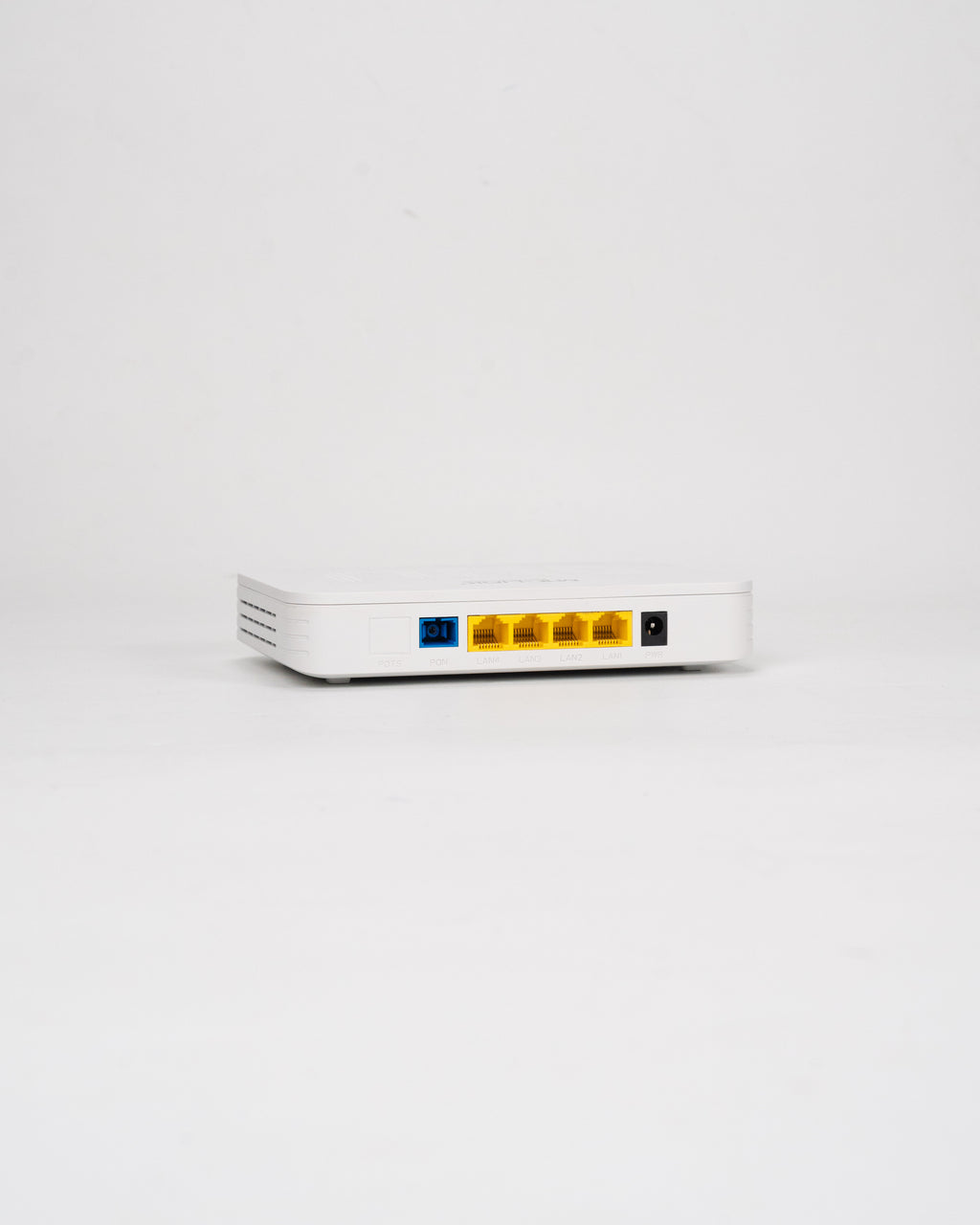

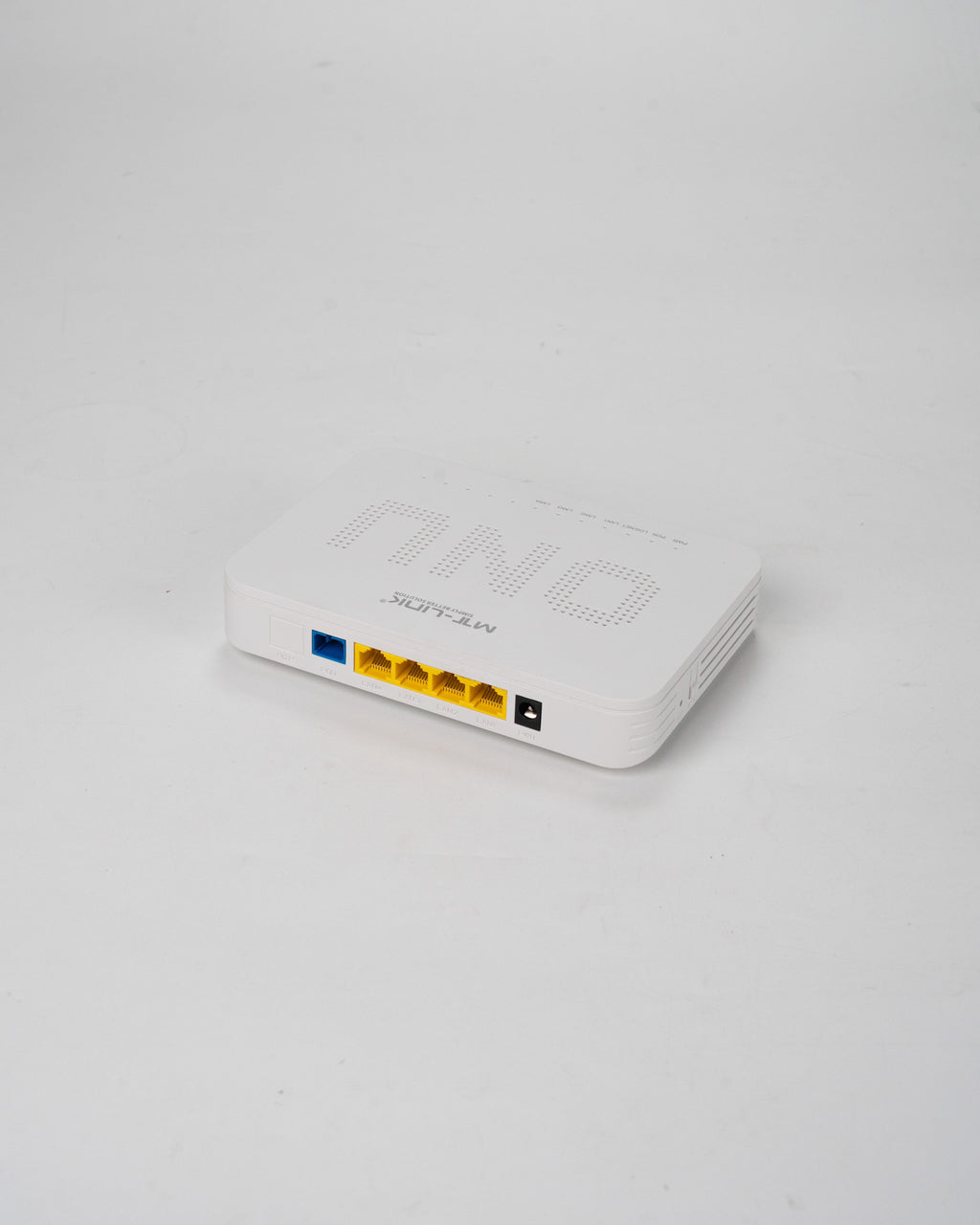

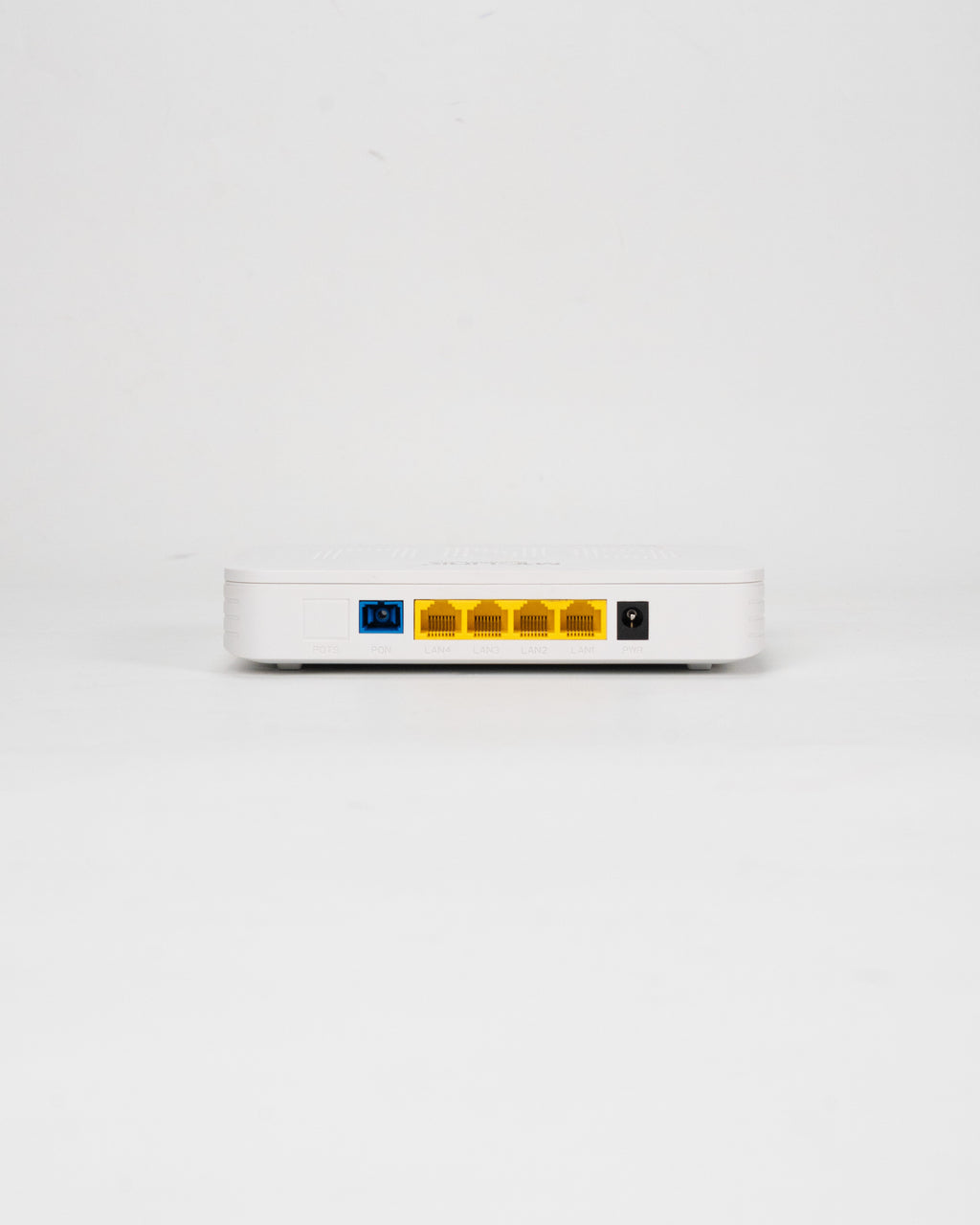

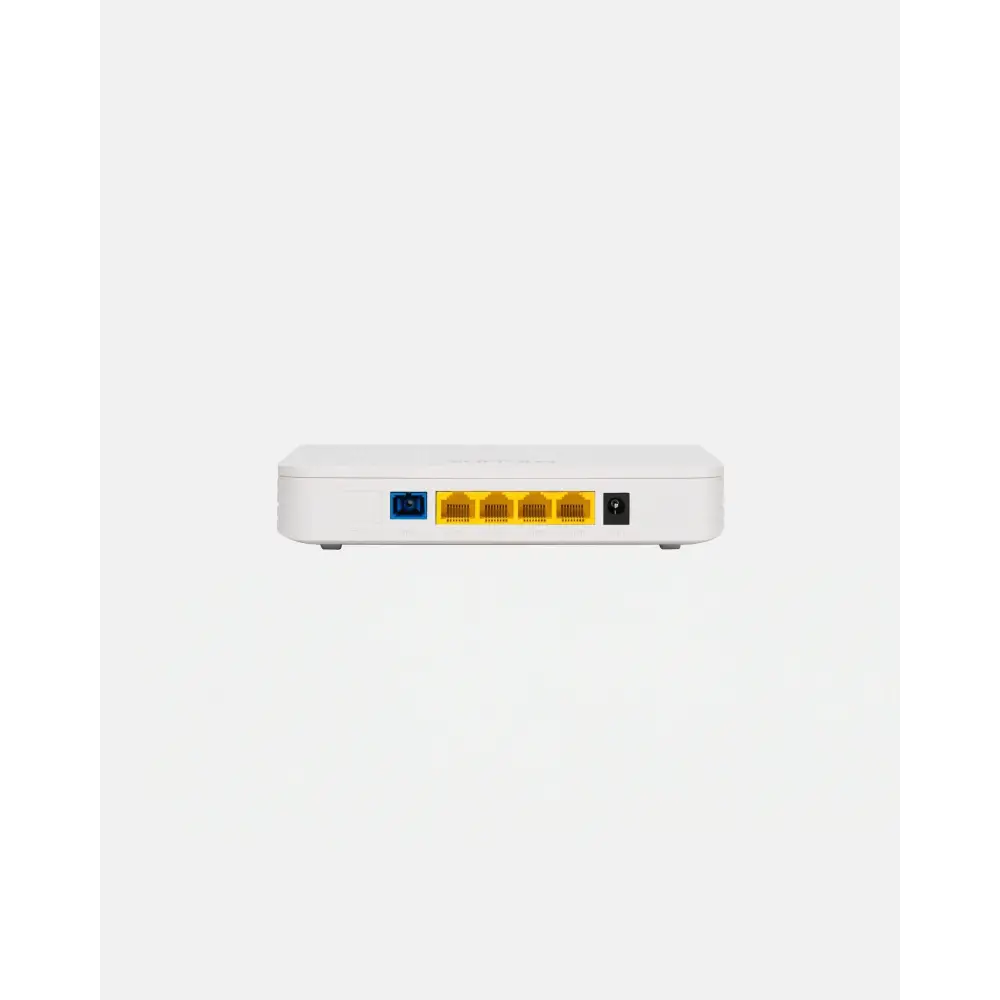

MT-1604 - 4 Port Gigabit (10/100/1000Mbps) XPON ONU

4 Port XPON ONU for Gigabit Fiber Connectivity

The MT-1604 4 port XPON ONU is a fiber access terminal with four 10/100/1000M RJ45 Ethernet interfaces and one adaptive EPON/GPON optical interface. It converts the optical signal from a fiber network into Ethernet connectivity for compatible network devices. With support for both EPON and GPON modes, this 4 port Gigabit XPON ONU is designed for users who need multiple wired Ethernet connections from a fiber access terminal.

For more fiber networking options, explore the XPON Bridge ONU collection from MT Link Pakistan.

Key Features & Benefits

• 4 × Gigabit Ethernet ports: The MT-1604 provides four 10/100/1000M RJ45 interfaces, giving you multiple wired Ethernet connections from the ONU.

• EPON & GPON adaptive interface: Its optical interface supports both EPON and GPON modes, making it a versatile 4 port GPON EPON ONU for supported fiber access networks.

• Gigabit Ethernet connectivity: Auto-negotiation, full/half-duplex operation, Auto MDI/MDI-X, and a 100m Ethernet distance support flexible wired network connections.

• High-speed PON specifications: In GPON mode, the listed upstream rate is 1.25Gbps and downstream rate is 2.5Gbps. EPON mode supports 1.25Gbps upstream and downstream rates.

• Multiple management options: The device can be managed through Web, TELNET, TR-069, OAM, and OMCI interfaces, depending on the applicable network management setup.

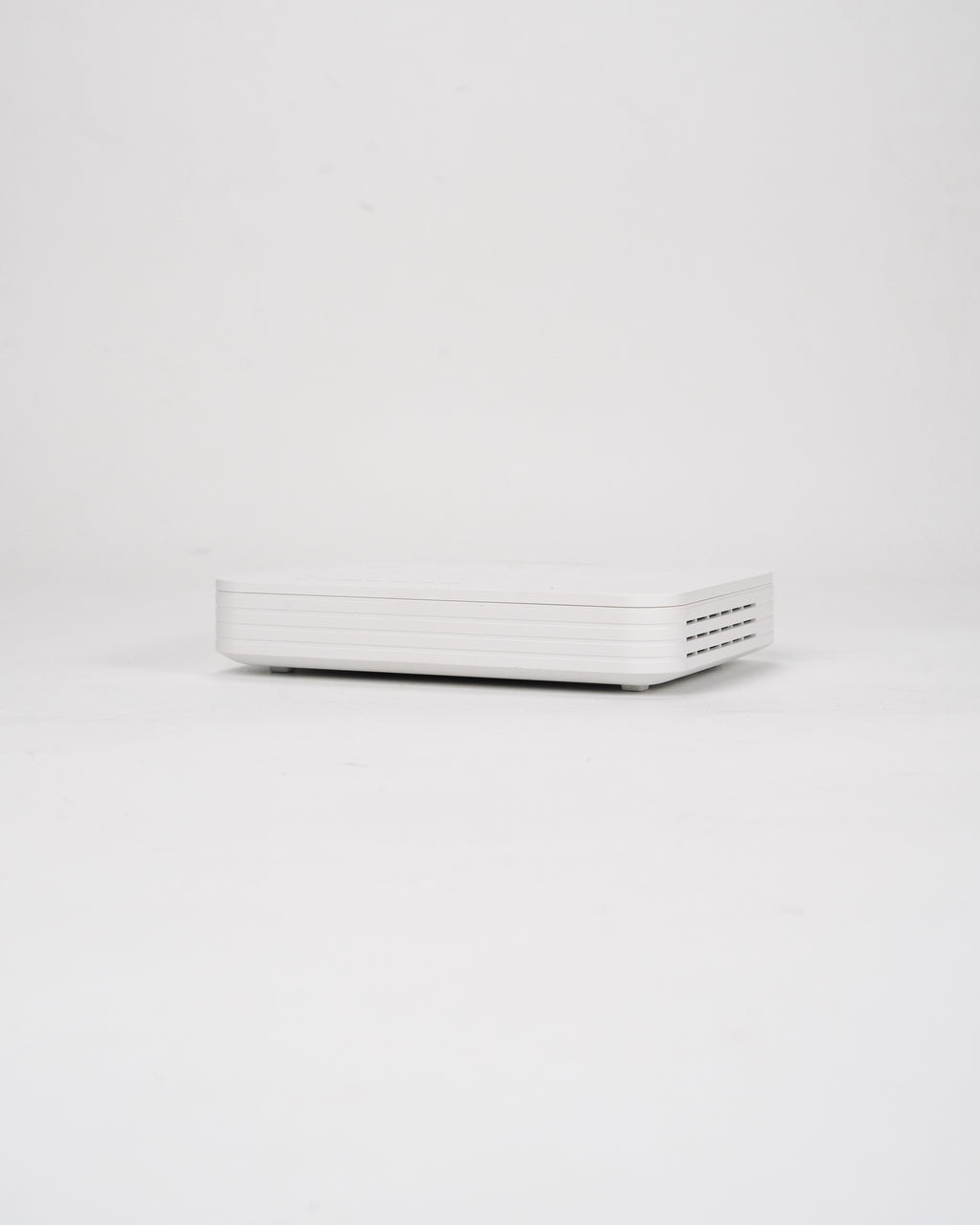

• Compact, low-power design: Measuring 105 × 85 × 25mm and rated at 3W power consumption, the unit is designed for a compact installation with low power use.

Technical Specifications

Compatibility & Usage

The MT-1604 is a 4 port fiber ONU with an adaptive EPON/GPON interface. It can be set up through its web interface or the management software supplied with the optical modem. The Ethernet side uses RJ45 connections with 10/100/1000M auto-negotiation. Before purchasing, confirm that your fiber network uses a compatible EPON or GPON setup and that the required optical connector type is supported.

If you need a single-port alternative, see the MT-1601 1 Port Gigabit XPON ONU. For a fiber router with integrated wireless connectivity, compare the MT-1704-1G-N XPON Fiber Router.

Frequently Asked Questions

What is the MT-1604 4 port ONU?

The MT-1604 is a 4 port ONU that converts an optical fiber signal into Ethernet connectivity. It has four 10/100/1000M RJ45 Ethernet interfaces and an EPON/GPON adaptive optical interface.

Does the MT-1604 support both EPON and GPON?

Yes. The MT-1604 has an EPON & GPON mode adaptive interface, allowing it to operate in the applicable EPON or GPON mode supported by the network setup.

What are the Ethernet speeds of the MT-1604?

The MT-1604 provides four 10/100/1000M Ethernet interfaces. These RJ45 ports support auto-negotiation, full/half-duplex operation, Auto MDI/MDI-X, and a listed Ethernet distance of 100m.

Is the MT-1604 a 4 port GPON ONU or EPON ONU?

The MT-1604 supports both technologies through its adaptive PON interface, so it can function as a 4 port GPON ONU or 4 port EPON ONU according to the applicable network mode. It is therefore also described as a 4 port GPON EPON ONU.

What is the difference between an XPON ONU and an ONT?

ONU stands for Optical Network Unit, while ONT stands for Optical Network Terminal. In many fiber networking contexts, the terms are used for similar types of optical access equipment. The MT-1604 is sold as an XPON ONU and provides an optical PON interface together with four Gigabit Ethernet ports.
