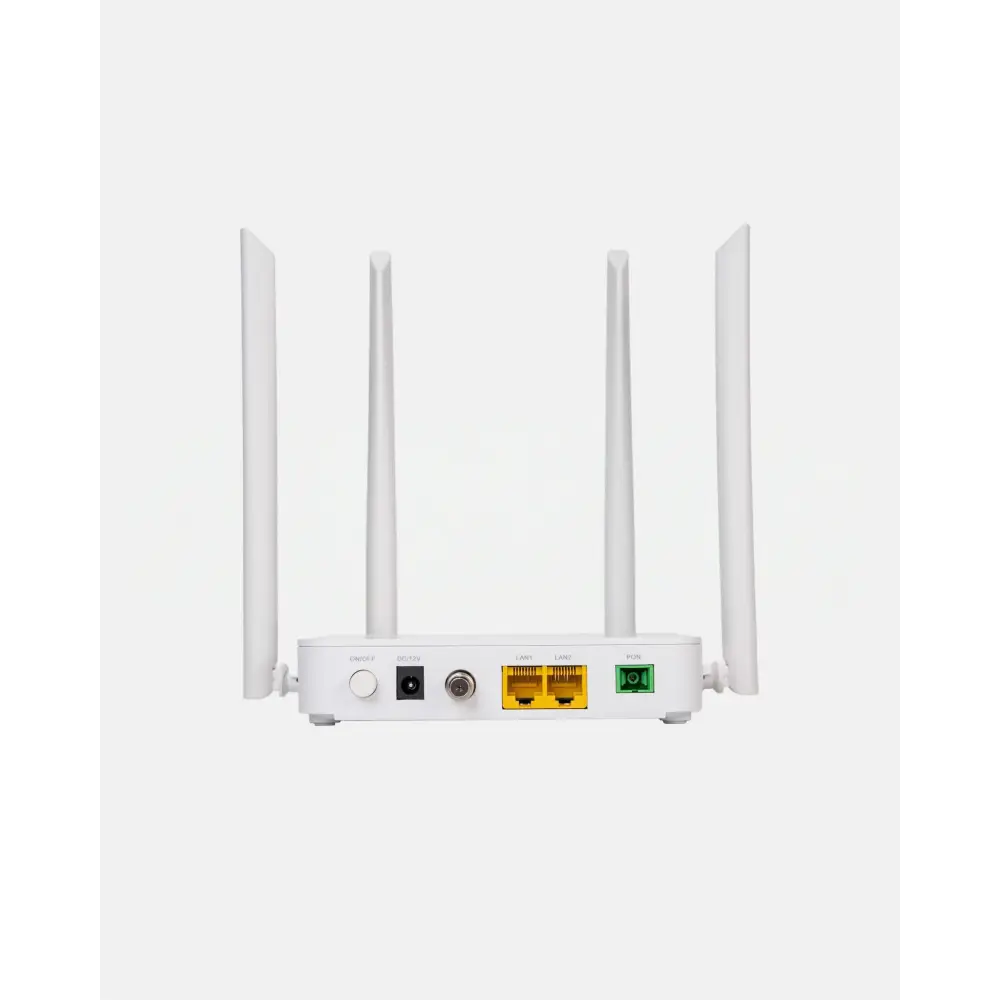

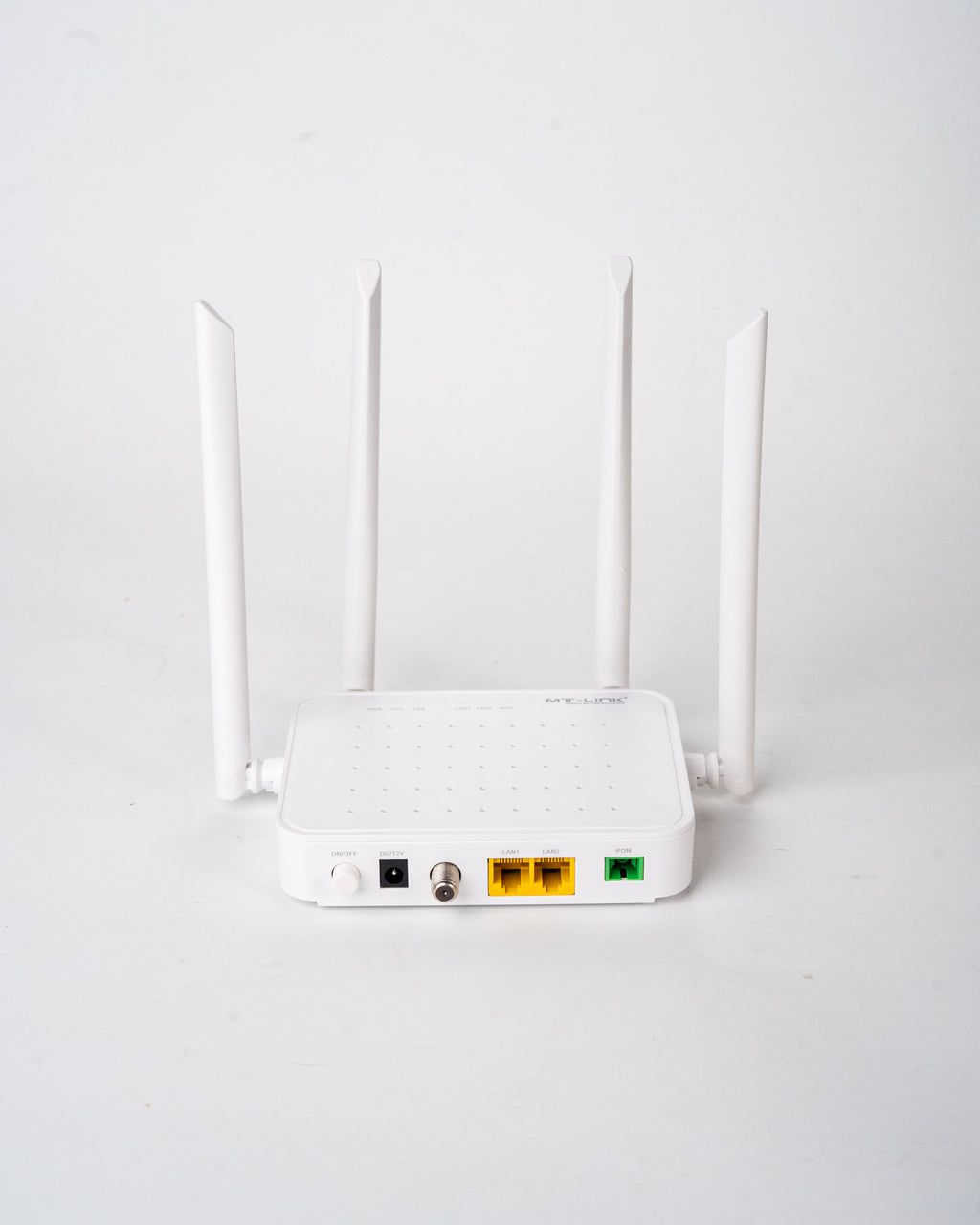

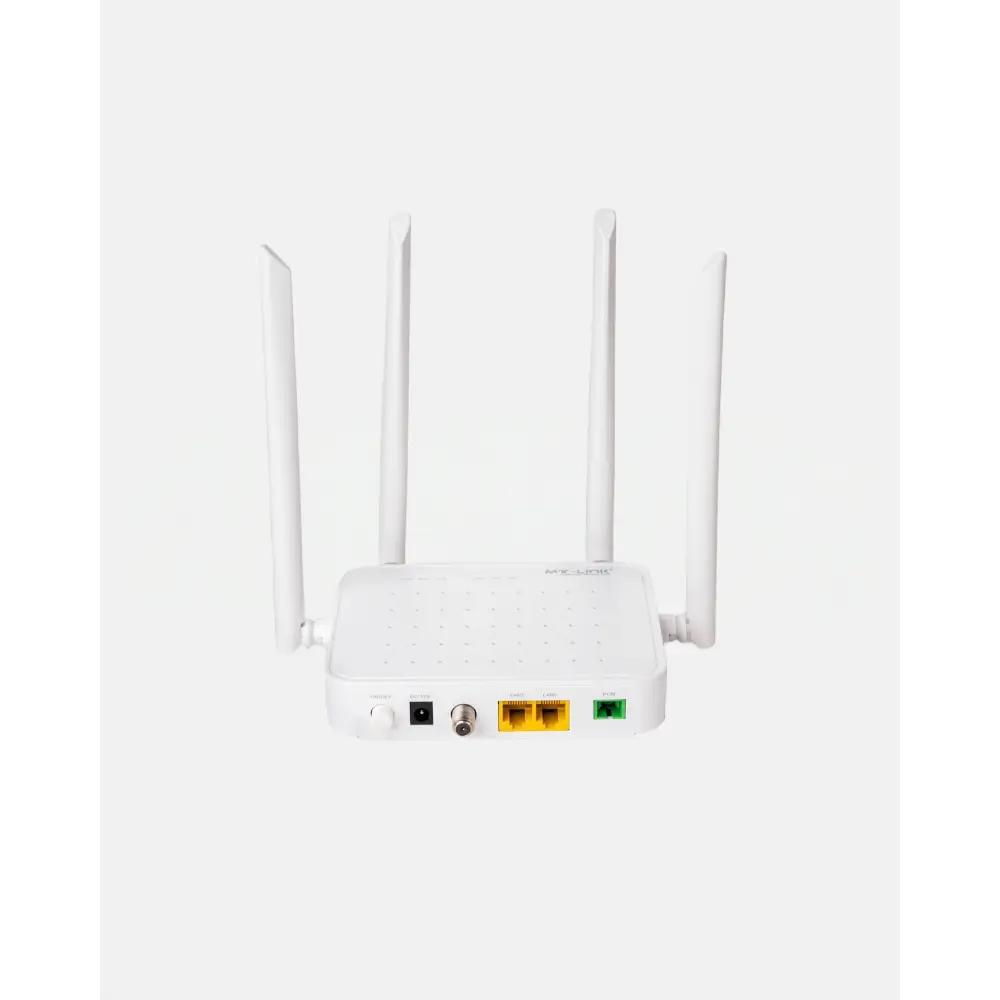

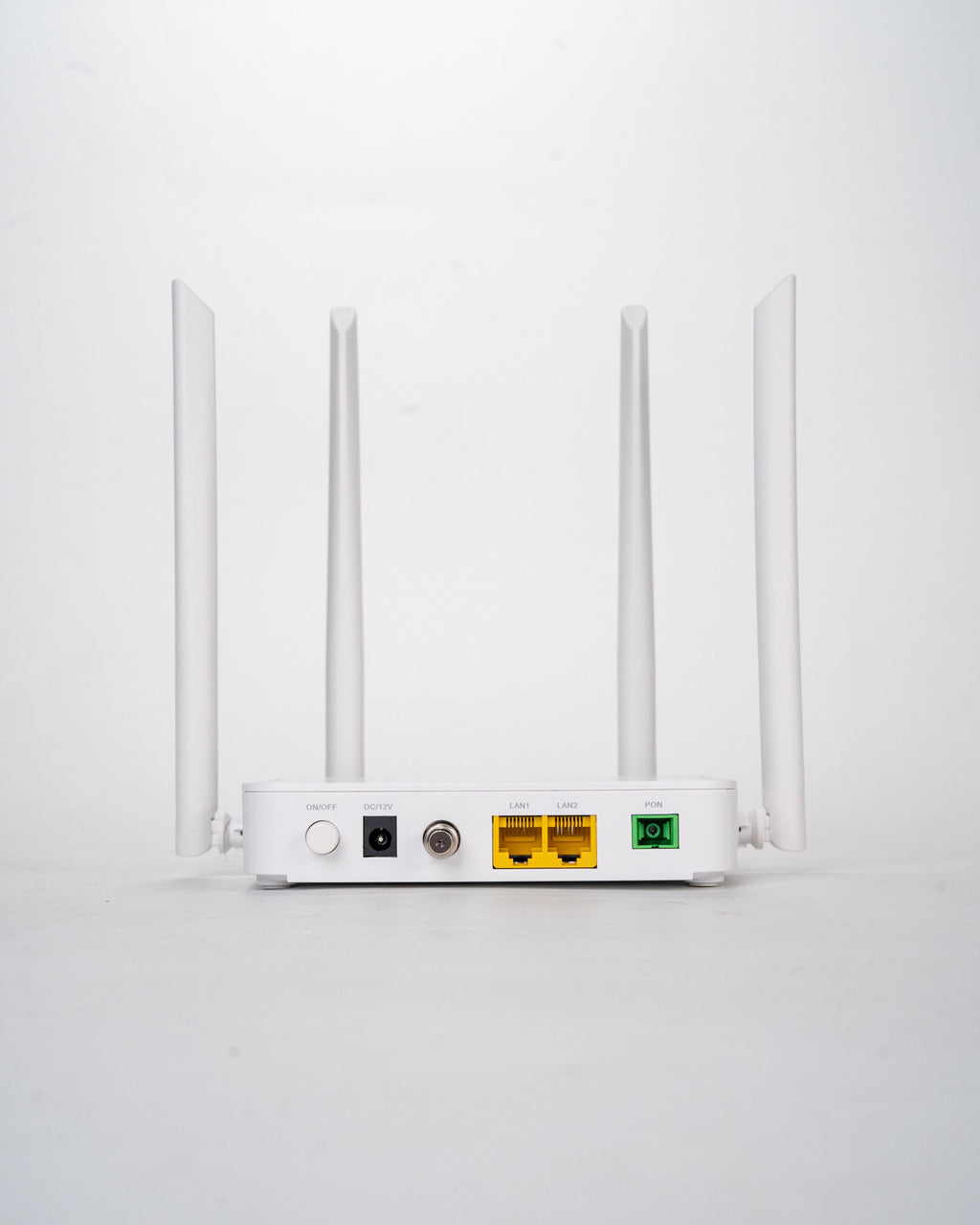

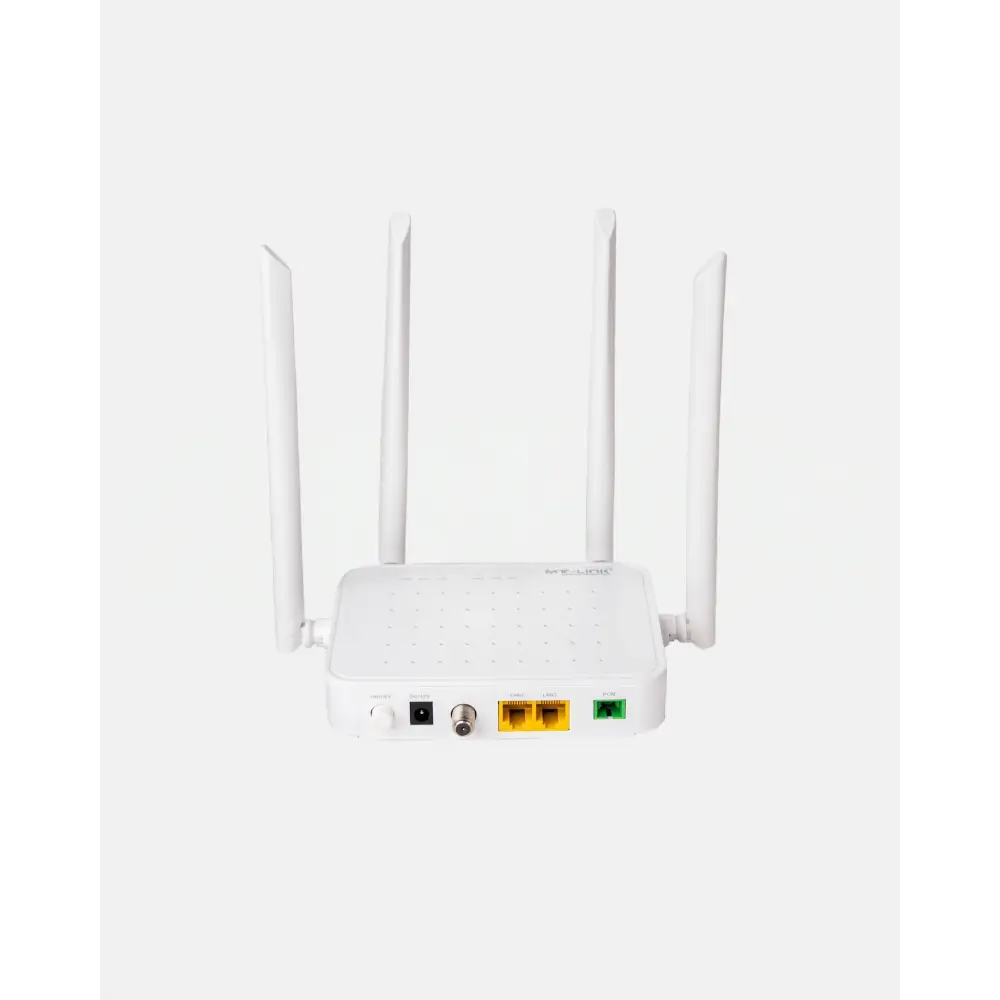

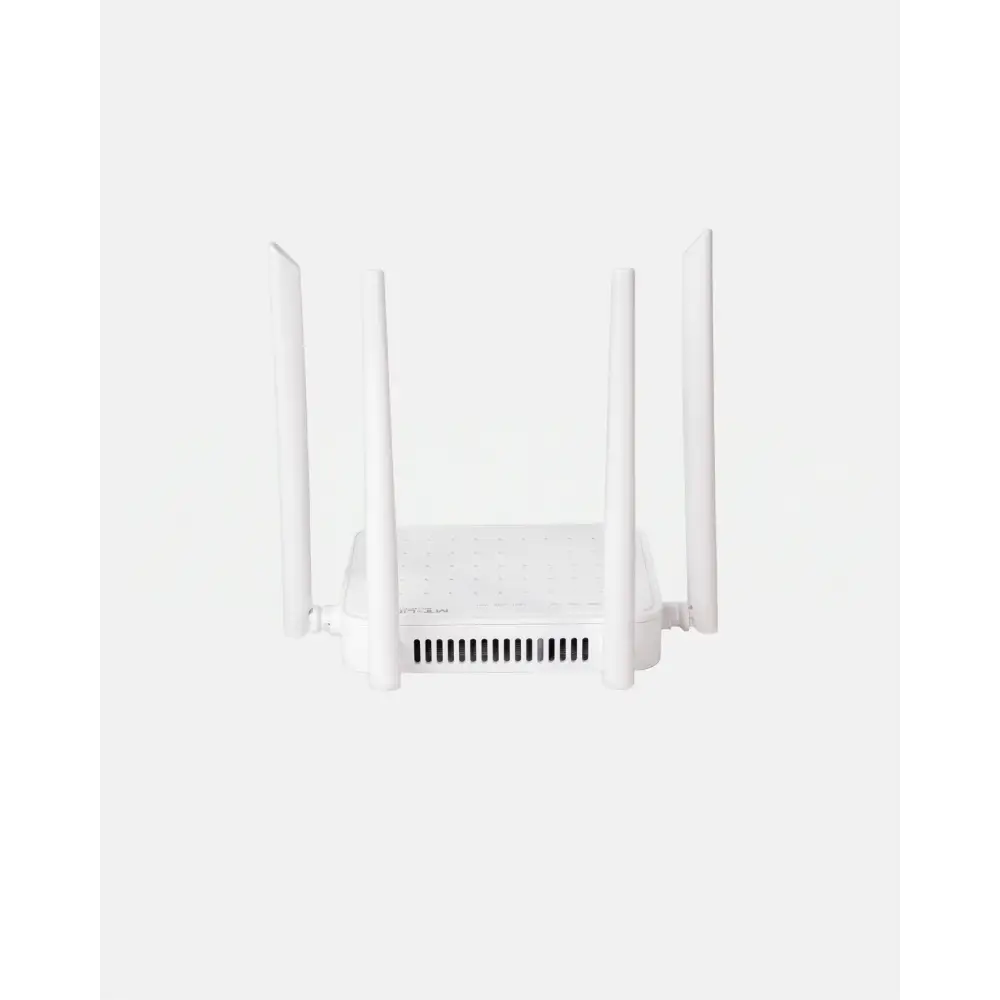

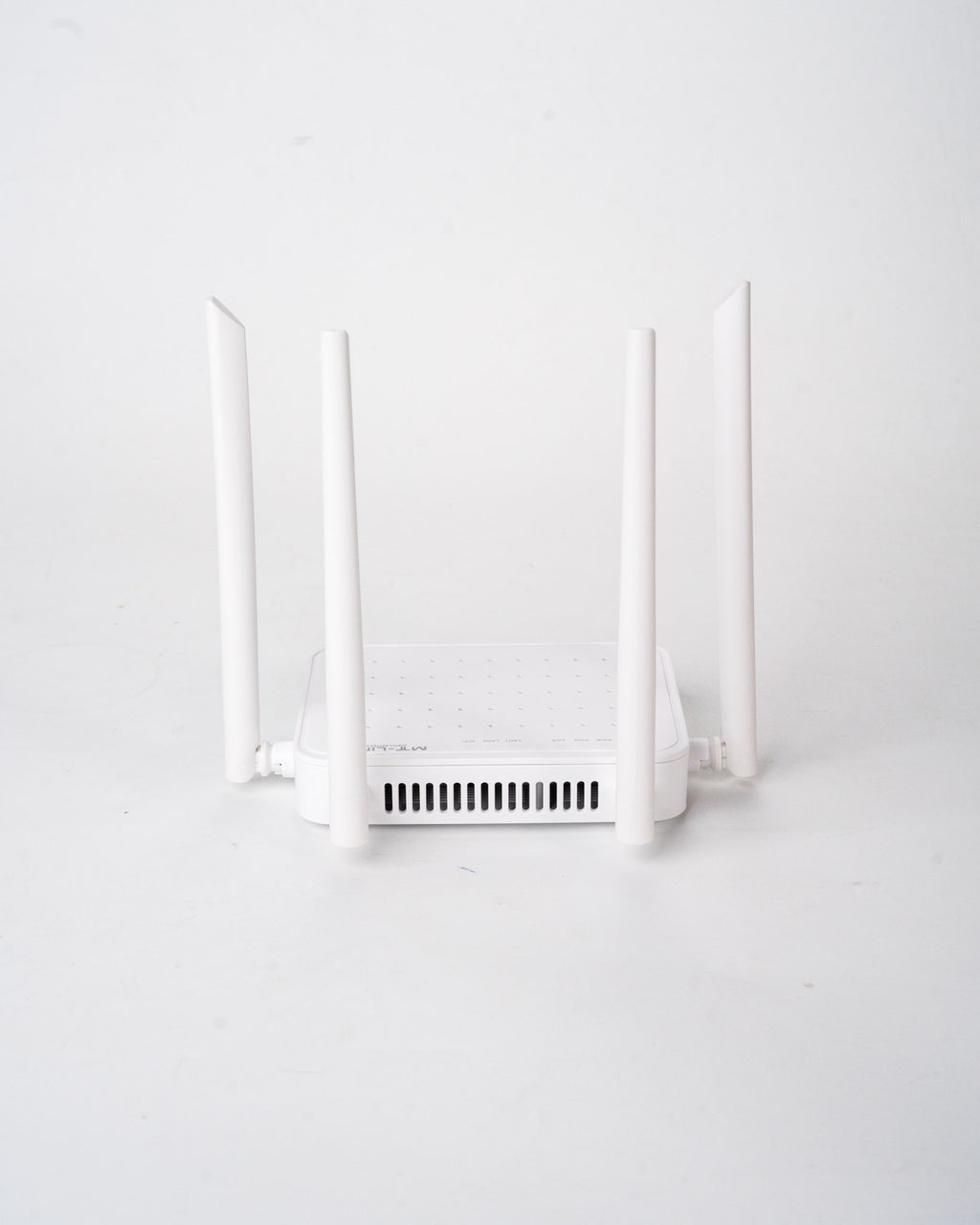

MT-1704-2G-AC-RF (NEW)

MT-Link 1704 Series is a smart HGU with integrated wireless, VoIP and CATV function. MT-Link 1704 Series is oriented for the integrated multiservice network in telecom operator network. MT-Link 1704 series is compatible with EPON and GPON networks: complied with the international standard ITU-T G.984/988 and IEEE802.3ah, PRC Communication Industry Standard GB/T33845-2017 and YD/T 1475-2006, and China Telecom EPON/GPON Technical Requirement CTC.
1704 Series includes 4 models:

MT-1704-1G-N, MT-1704-1G-N-RF ,
MT-1704-4G-AC & MT-1704-4G-ACRF

Product Characteristics

GPON: supports the PON transmission rate of downlink 2.5Gbps/ uplink 1.25Gbps. Connected with OLTs, it can realize 1:128 splitting ratio. The covering radius of the network can reach to 20km.

EPON: supports the PON transmission rate of downlink 1.25Gbps/ uplink 1.25Gbps. Connected with OLTs, it can realize 1:64 splitting ratio. The covering radius of the network can reach to 20km.

Complete Interaction Capacity

MT-Link 1704 series is complied with the international standard ITU-T G.984/988 and IEEE802.3ah, PRC Communication Industry Standard GB/T33845-2017 and YD/T 1475-2006, and China Telecom EPON/GPON Technical Requirement CTC. With great interoperability
and operability.

Secure Service Carrying Ability

For ensuring the secure service carrying ability of ONU, MT-Link has developed techniques including VLAN, STP, port isolation, ACL, QoS and Broadcast Storm Control.

Advanced Energy-saving Technique

For ensuring the secure service carrying ability of ONU, MT-Link has developed techniques including VLAN, STP, port isolation, ACL, QoS and Broadcast Storm Control.

High Service Control Capability

MT-Link 1704 series supports DBA and Rate Limit. MT-Link 1704 series also supports advanced dynamic bandwidth distribution and accurate bandwidth limit, which enables users to share 2.5Gbps (GPON) and 1.25Gbps (EPON) bandwidth resource appropriately. MT-Link 1704 series supports DBA and Rate-Limit. MT-Link 1704 series also supports advanced dynamic bandwidth distribution and accurate bandwidth limit, which enables users to share 2.5Gbps (GPON) and 1.25Gbps (EPON) bandwidth resource appropriately.

Rich OMCI Function

MT-Link 1704 series supports the standard OMCI defined by ITU-T, standard OAM and extended OAM defined by telecom CTC2.1/3.0, including configuration, alarm, performance monitoring, fault isolation and security management, and it also supports private OMCI and OAM defined by MT-Link.
