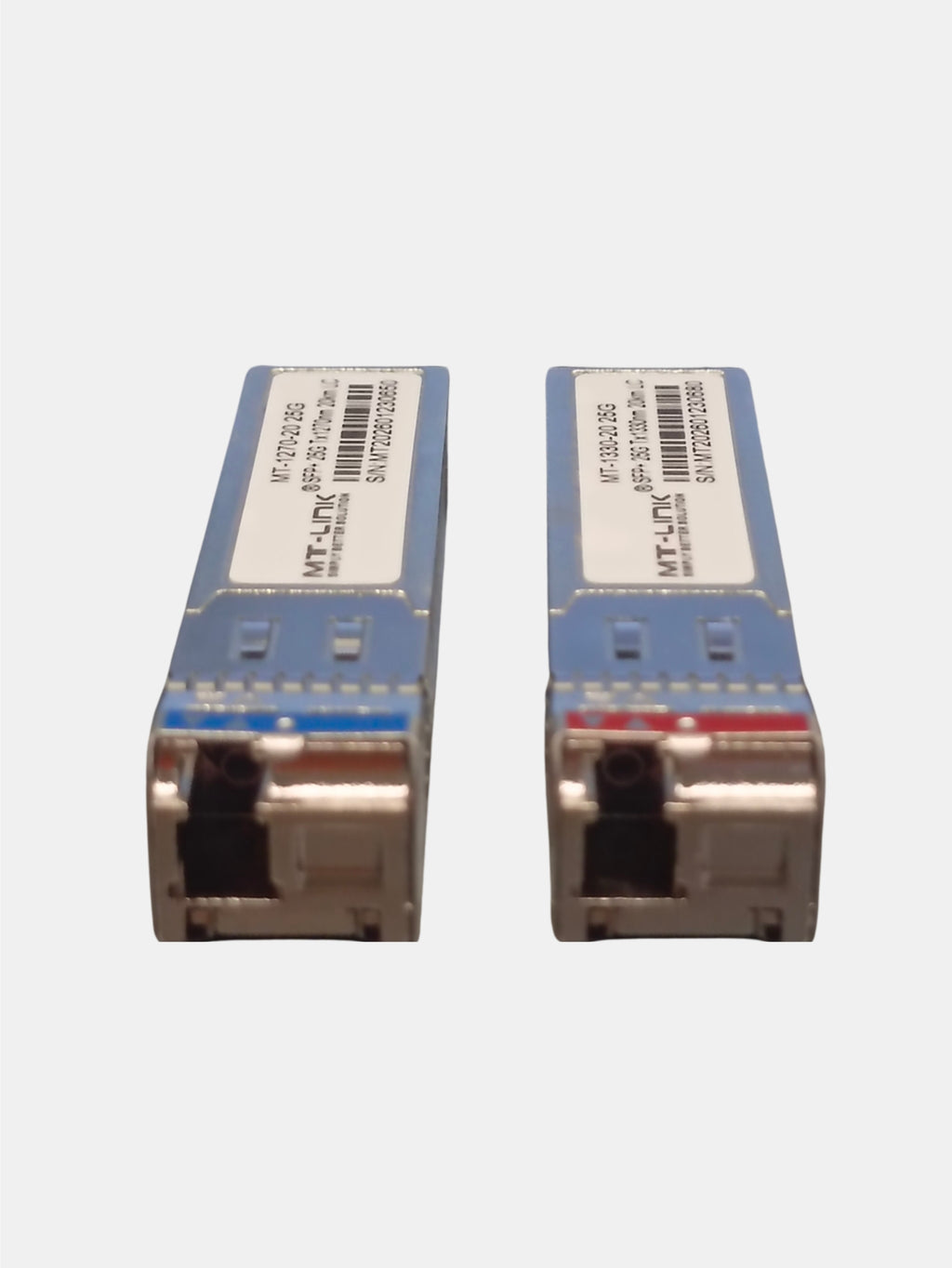

MT-25G SFP 1270/1330-40 (PAIR) - UPTO 40KM - 25GBase-WDM Bi-Directional SFP+ LC Module

MT-Link 25G SFP28 BiDi Optical Module Pair (1270/1330nm – 40KM)
Key Features
Model: MT-1270/1330-40 25G
Form Factor: SFP28
Data Rate: 25Gbps
BiDi (Bidirectional) Transmission
Wavelength Pair: 1270nm / 1330nm (A+B Pair)
Transmission Distance: Up to 40KM
Single Mode Single Fiber (SMF)
LC Simplex Connector
DDM/DOM Digital Diagnostics Support
Hot-Pluggable Design
Low Power Consumption
Compatible with Standard OLTs, Switches, Routers, Servers & Networking Equipment
Stable Long-Distance High-Speed Fiber Connectivity

The module supports 25Gbps transmission over a single strand of single-mode fiber using 1270nm/1330nm bidirectional wavelengths, with a maximum transmission distance of 40KM.

Detailed Description

The MT-Link MT-1270/1330-40 25G is a high-performance 25G SFP28 BiDi optical transceiver pair designed for long-distance fiber optic networking applications. Using 1270nm and 1330nm wavelengths, the modules transmit and receive data over a single fiber core, reducing fiber infrastructure requirements while maintaining reliable high-speed performance.

This A+B matched pair supports transmission distances of up to 40 kilometers on single-mode fiber (SMF) and is ideal for telecom networks, enterprise infrastructure, data centers, FTTH backhaul, ISP deployments, and other high-bandwidth optical communication environments.

The module features a standard SFP28 hot-pluggable form factor and supports DDM/DOM monitoring, allowing real-time monitoring of optical parameters for improved network management and diagnostics.

Specifications
Item    Specification
Brand    MT-Link
Model    MT-1270/1330-40 25G
Form Factor    SFP28
Data Rate    25Gbps
Wavelength    1270nm / 1330nm (A+B Pair)
Fiber Type    Single Mode Single Fiber (SMF)
Connector    LC Simplex
Transmission Distance    40KM
Transmission Mode    BiDi (Bidirectional)
Monitoring    DDM/DOM Supported
Installation    Hot-Pluggable
Operating Temperature    -15°C to +65°C
Compatibility    Compatible with Standard OLTs, Switches, Routers, Servers & Networking Equipment
Package Includes
1 × MT-Link 25G SFP28 1270nm Module (Side A)
1 × MT-Link 25G SFP28 1330nm Module (Side B)

Note: This product is supplied as an A+B matched pair. Both modules are required for proper communication and must be installed on opposite ends of the fiber link.
