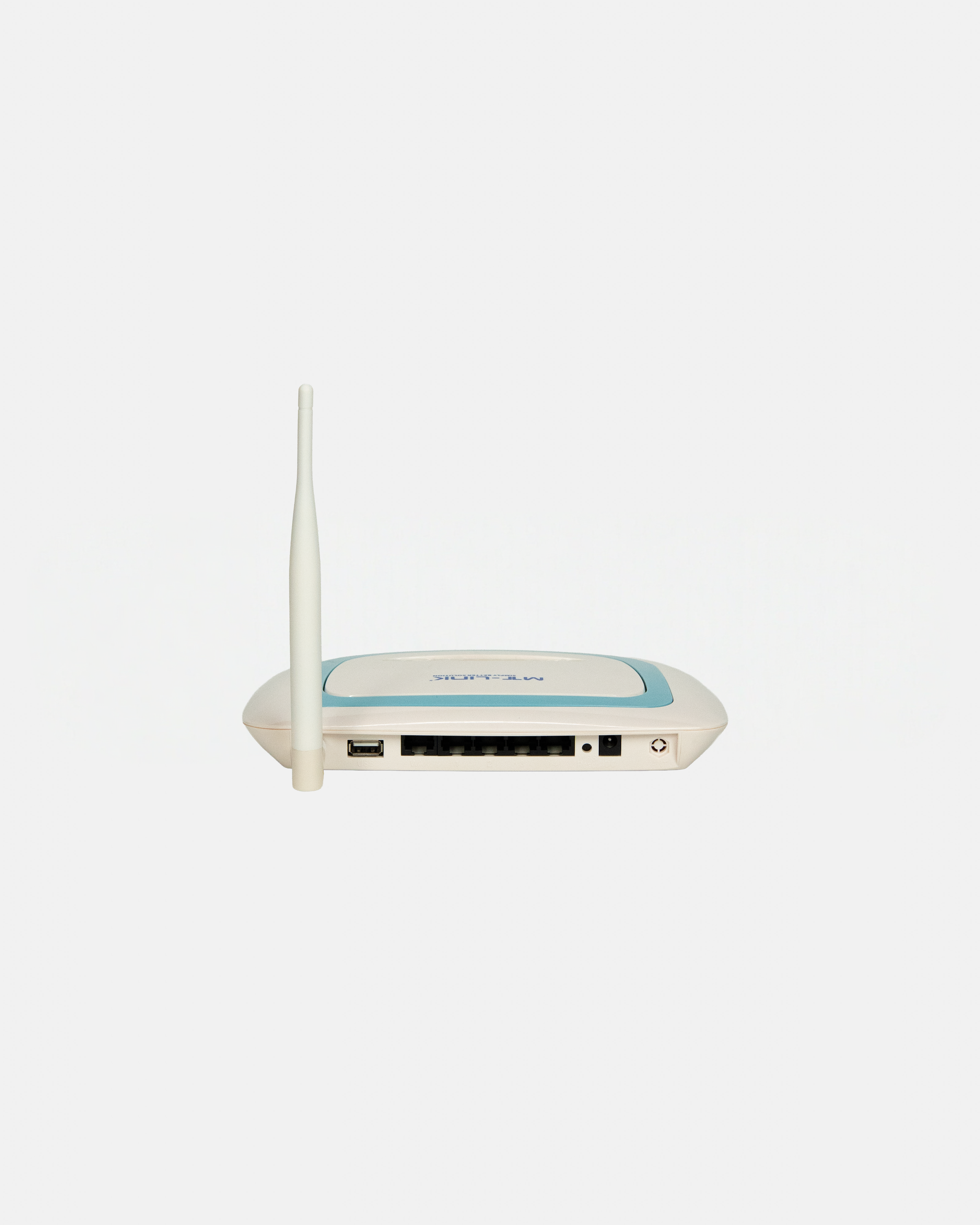

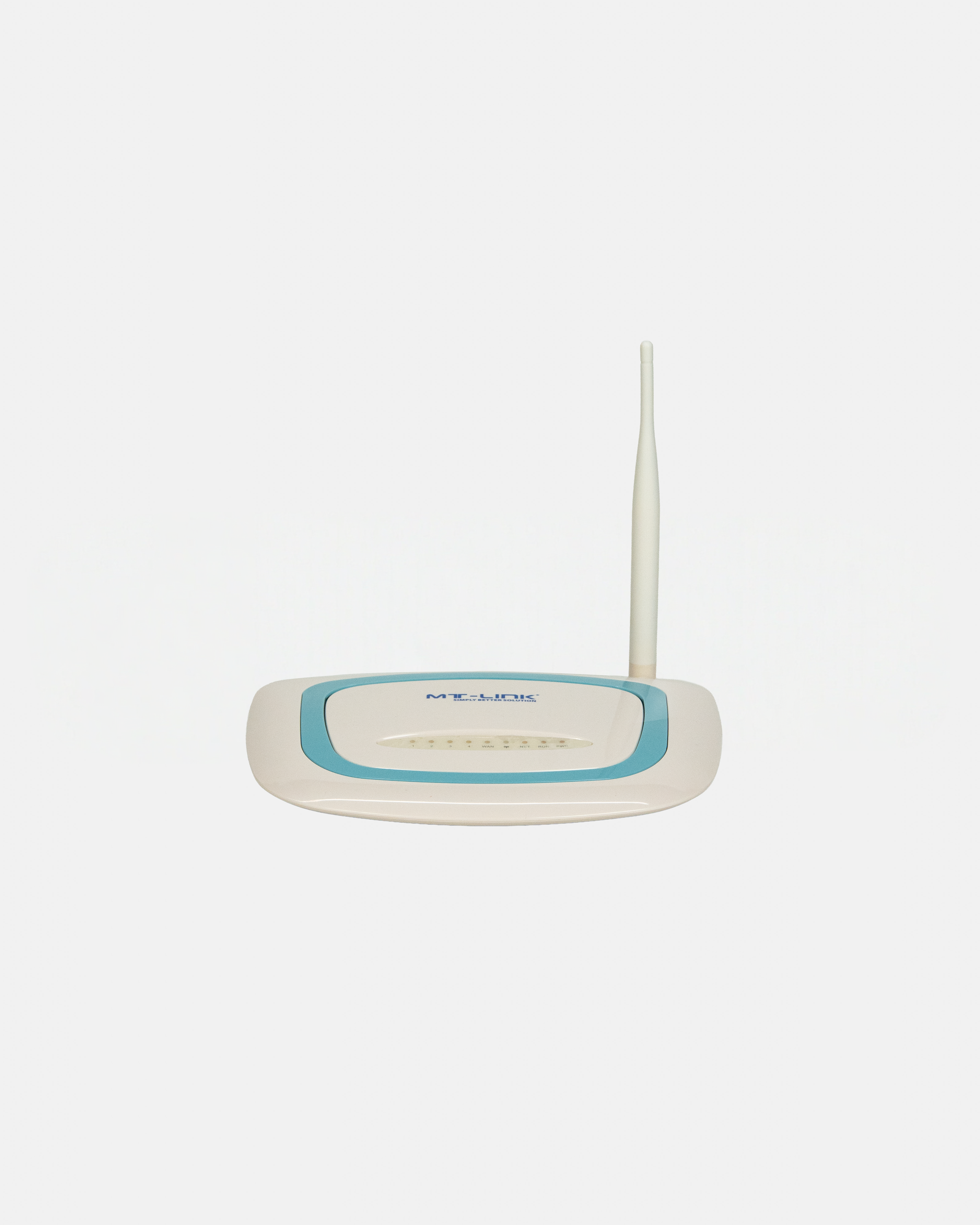

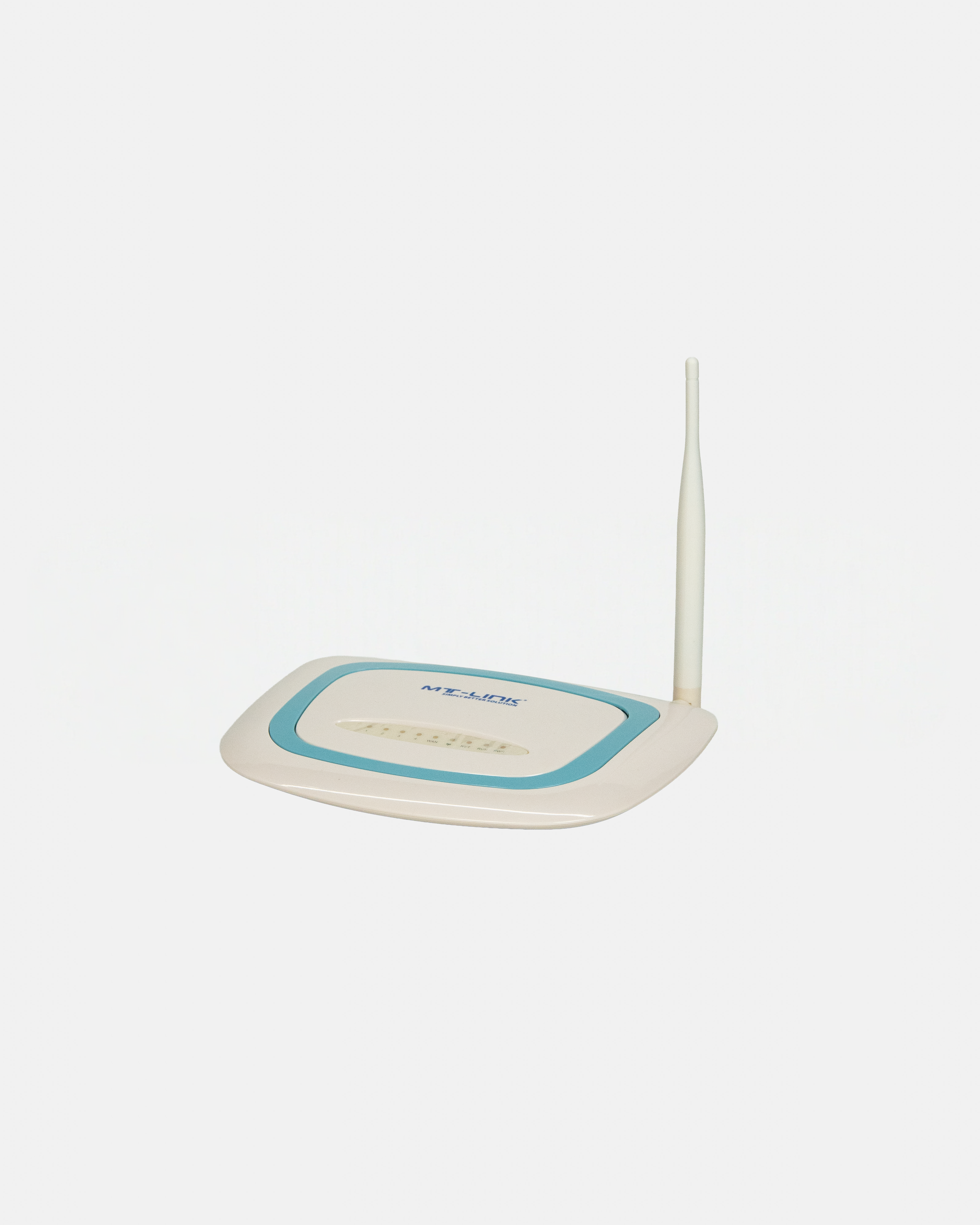

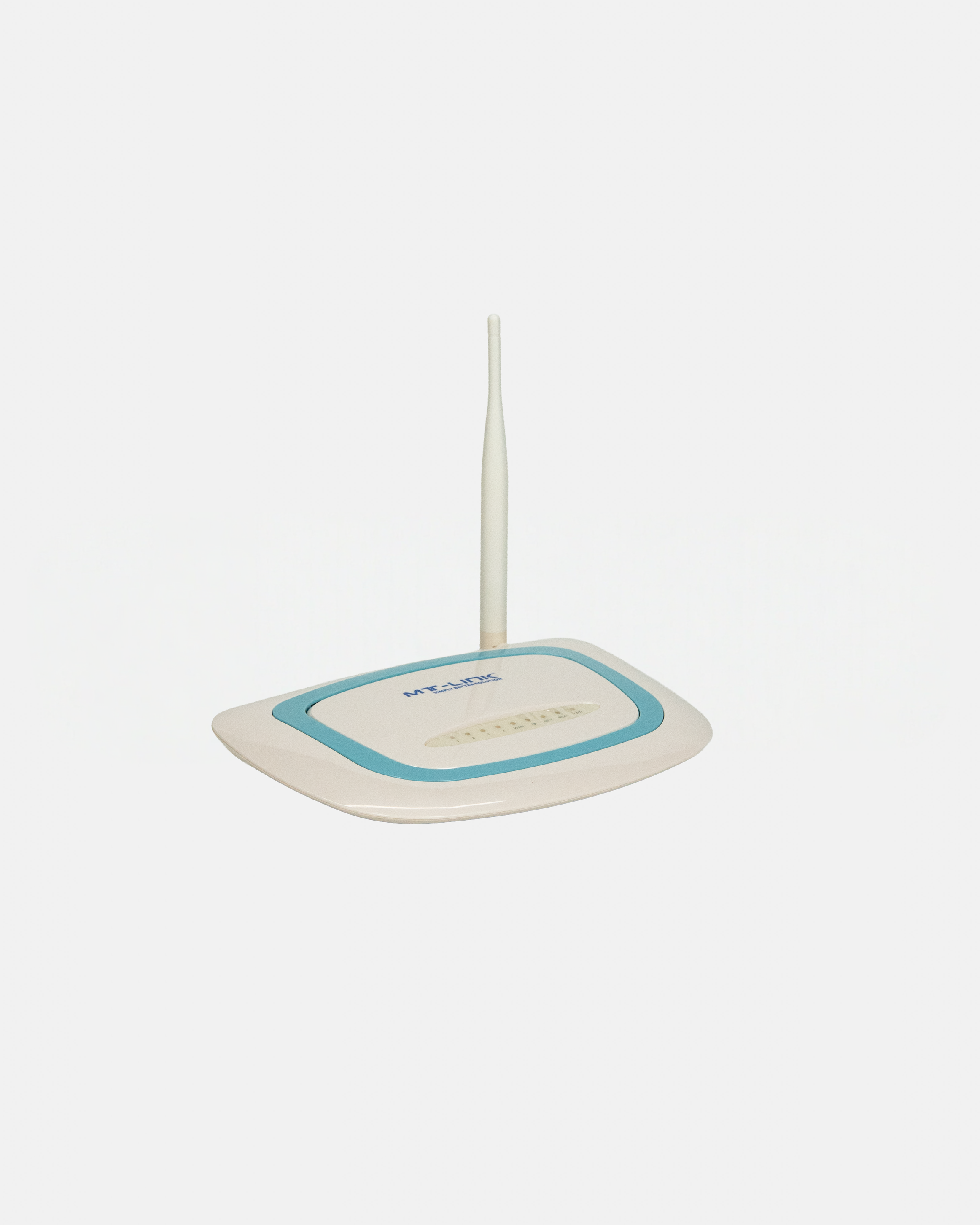

MT-MR1020 - 150Mbps Wireless Router with 4 LAN Ports
1/4

MT-MR1020 - 150Mbps Wireless Router with 4 LAN Ports

Sale price  Rs.2,800.00 PKR Regular price  Rs.3,500.00 PKR

Best Corporate Products In The world

150000+ Happy & Satisfied Customers

Fast & Secure Delivery All Over Pakistan

Quantity Selector

Description

Description

The MT-MR1020 Wireless Router gives you freedom to roam and still remain connected to the Internet. Even better, you can share your wireless 3G broadband connection with others, making it a great alternative to DSL and cable and eliminating the need for multiple 3G subscriptions. The MT-MR1020 Wireless Router, an activated 3G USB modem, and a broadband data plan are all you need to create instant WiFi hotspots at events, campsites, home offices, construction sites, and most any other remote location.

Features

• Complies with IEEE 802.11n(draft 2.0), IEEE 802.11g, IEEE 802.11b standards
• 1T1R Ralink 3050
• Integrates router, wireless access point, four-port switch and firewall in one
• 1 10/100M Auto-Negotiation RJ45 WAN port, 4 10/100M Auto-Negotiation RJ45 LAN ports
• Support PPPoE, Dynamic IP, and static IP broadband functions
• Automatic dialing, On-demand dialing, fixed time dialing, filling most dialing requirements
• Support UPnP, DDNS, static routing, VPN Pass-through
• Support virtual server, special application and DMZ host ideal for creating a website within your LAN
• Support SSID broadcast control and MAC access control list
• Support WDS function
• Support 64/128-bit WEP, complies with 128 bit WPA standard(TKIP/AES), Shared Key Authentication, IEEE 802.1X
• Built-in firewall features IP, MAC, URL filtering which flexibly controls online access and time
• Built-in DHCP server with automatic dynamic IP address distribution
• User interface supports free WEB software updates
• Support configuration file backup and restore.
• Sleek exterior, can be mounted on a wall or placed horizontally on a table or desk
• 1/2 fixed or detachable omni directional antennas for choice


Specification

Model MT-MR1020
Standards IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,IEEE 802.3,IEEE 802.3u,CSMA/CA,CSMA/CD,TCP/IP,DHCP,ICMP,NAT,PPPoE
USB: 1 x USB 2.0 port
Ports LAN: 4 x 10/100M Auto MDI/MDIX RJ45 ports
WAN: 1 x 10/100M Auto MDI/MDIX RJ45 port
Frequency Band 2.4~2.4835GHz
Data Transfer Rates 11n:150/135/121.5/108/81/54/40.5/27/13.5Mbps
130/117/104/78/52/39/26/13Mbps
65/58.5/52/39/26/19.5/13/6.5Mbps
11g: 54/48/36/24/18/12/9/6M (Auto-Sense)
11b: 11/5.5/3/2/1M (Auto-Sense)
Channel 1~11 (US, Canada) 1~13 (Europe) 1~14 (Japan)
Sensitivity @PER 150M:-68dBm@10% PER 130M:-68dBm@10% PER
108M:-68dBm@10% PER 54M: -68dBm@10% PER
11M: -85dBm@8% PER 6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmission Distance Indoor up to 120m, outdoor up to 360m (Standard transmission distance, it is limited in an environment).
RF Power 20dBm(Max)
Antenna(fix/unfix) 5dbi  Detachable Antenna
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
SDRAM 32M
Flash 4M
Dimension (mm) 201.5(L) x 142(W) x 31(H) mm
LEDs POWER, Internet, Wlan, Lan/Wan,
Support system Windows® 2000, XP 32/64, Vista 32/64, Linux,MAC,Windows 7
Environment Operating Temperature: 0C-40C (32F-104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%-90% non-condensing;
Storage Humidity: 5%-95% non-condensing
