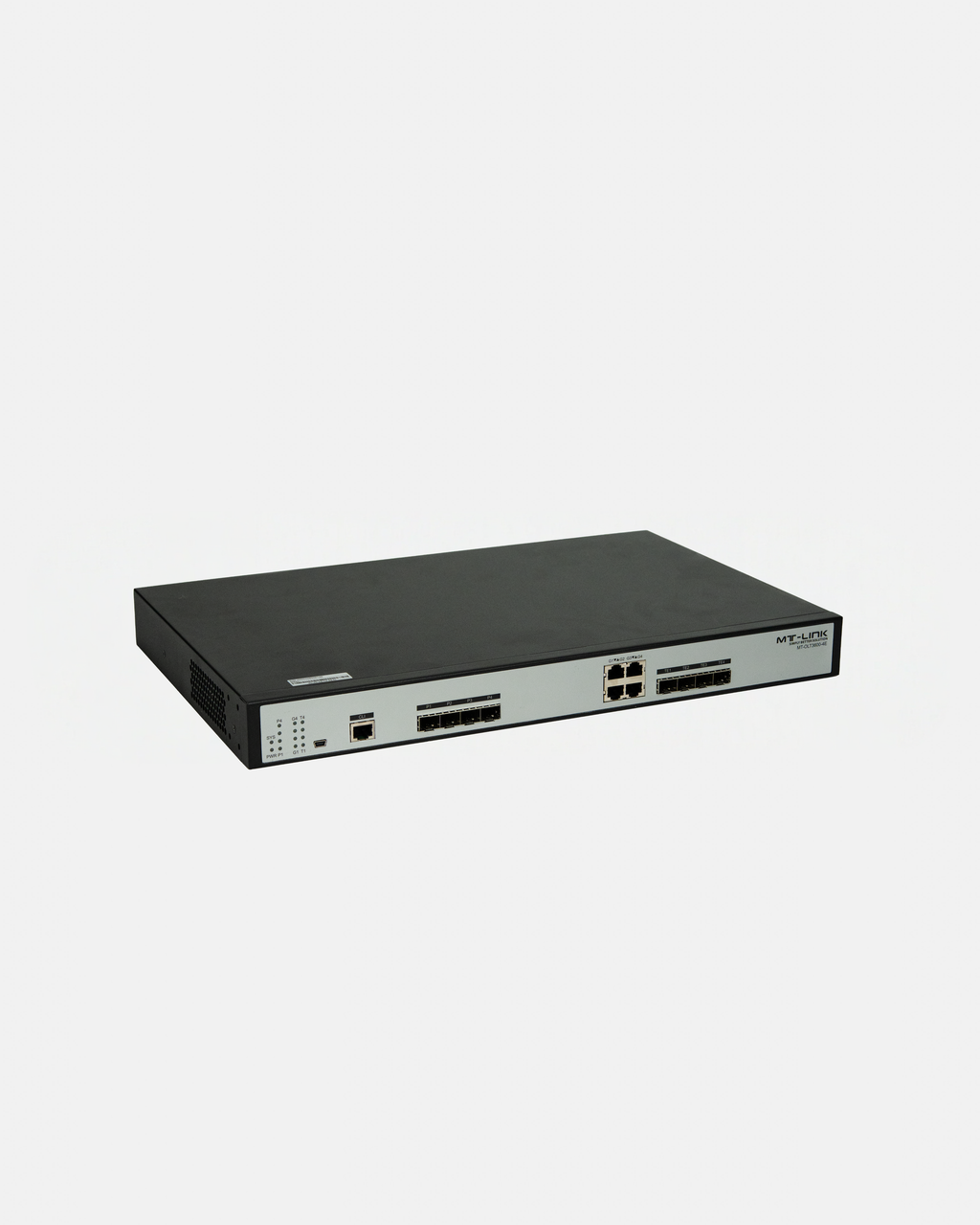

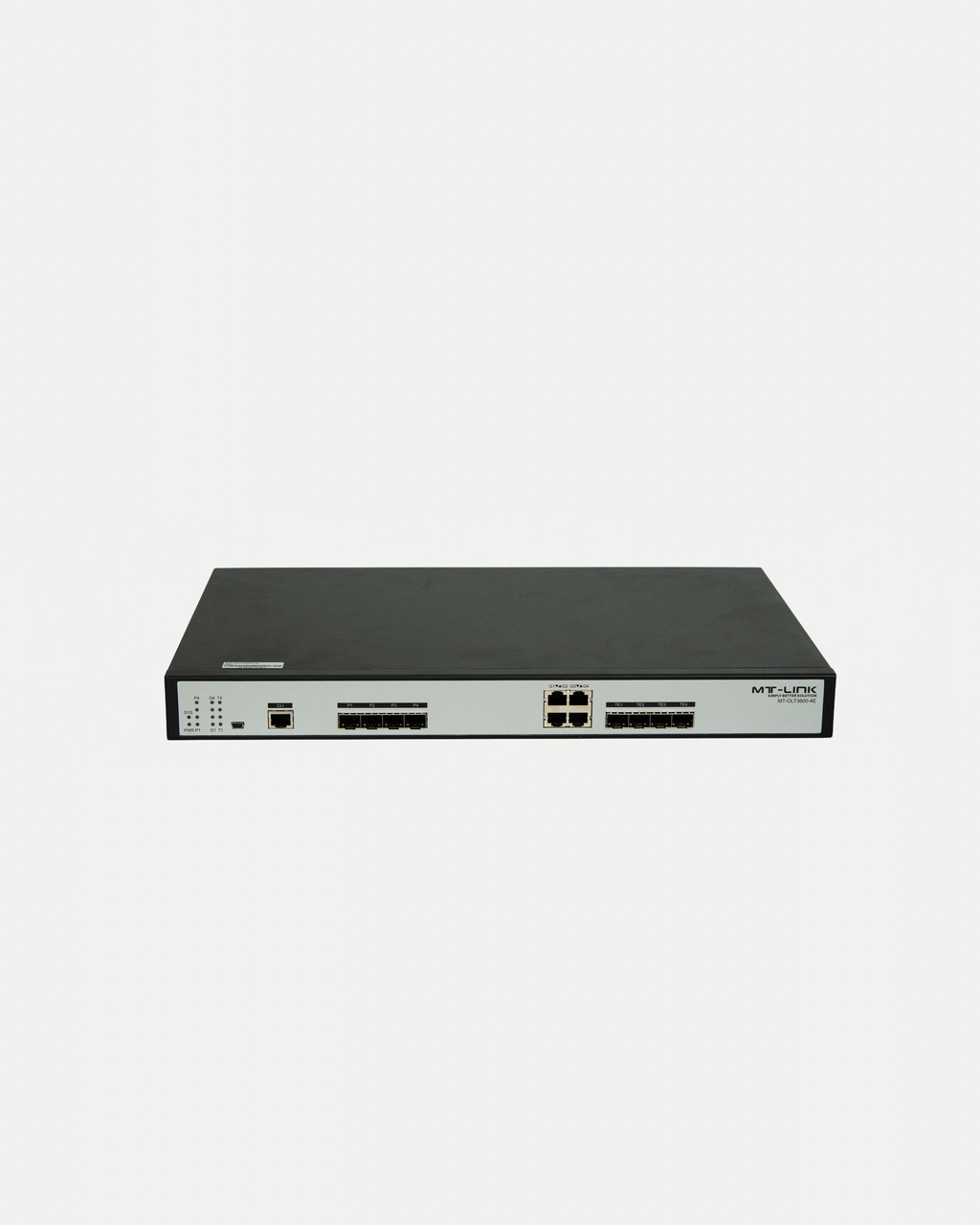

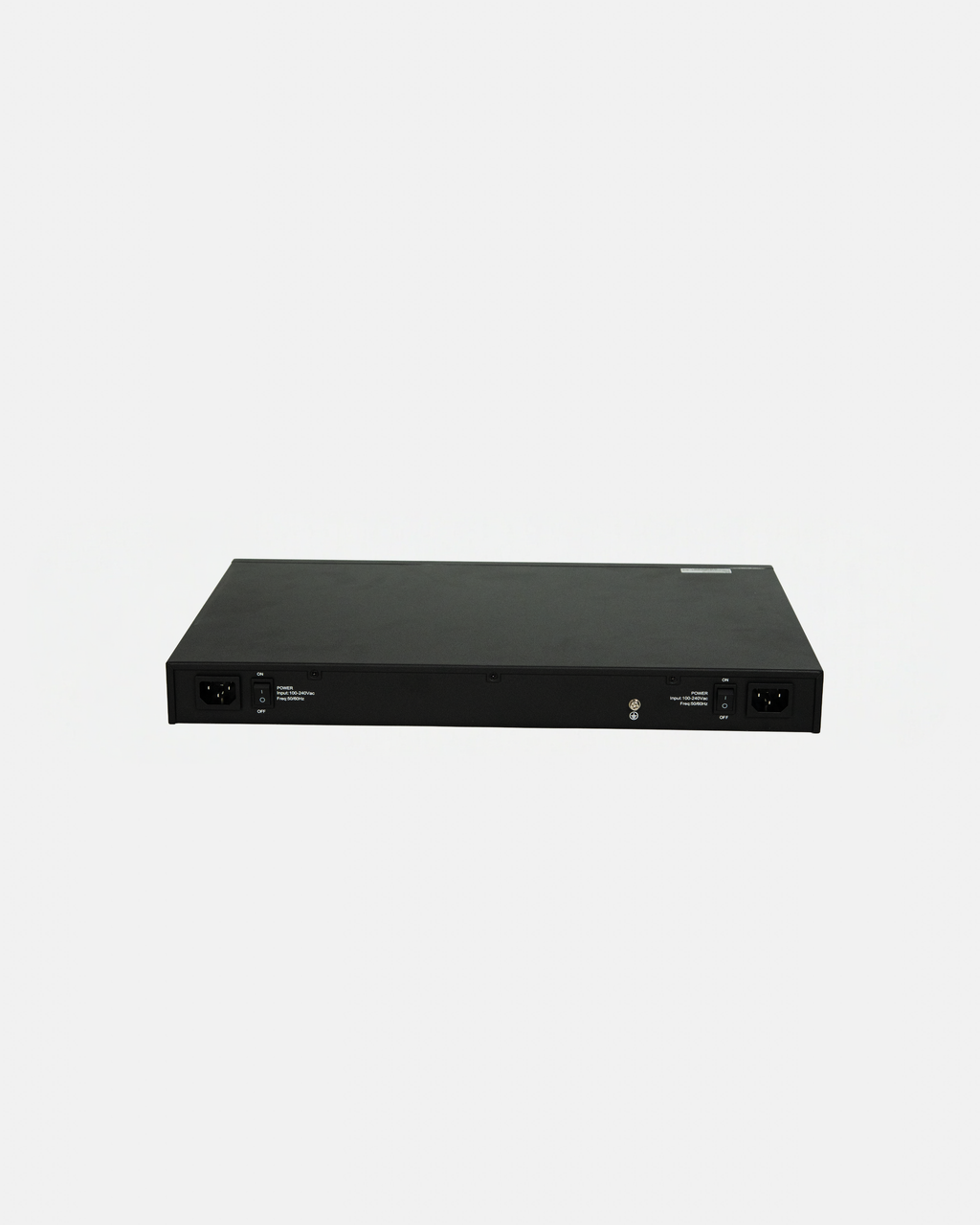

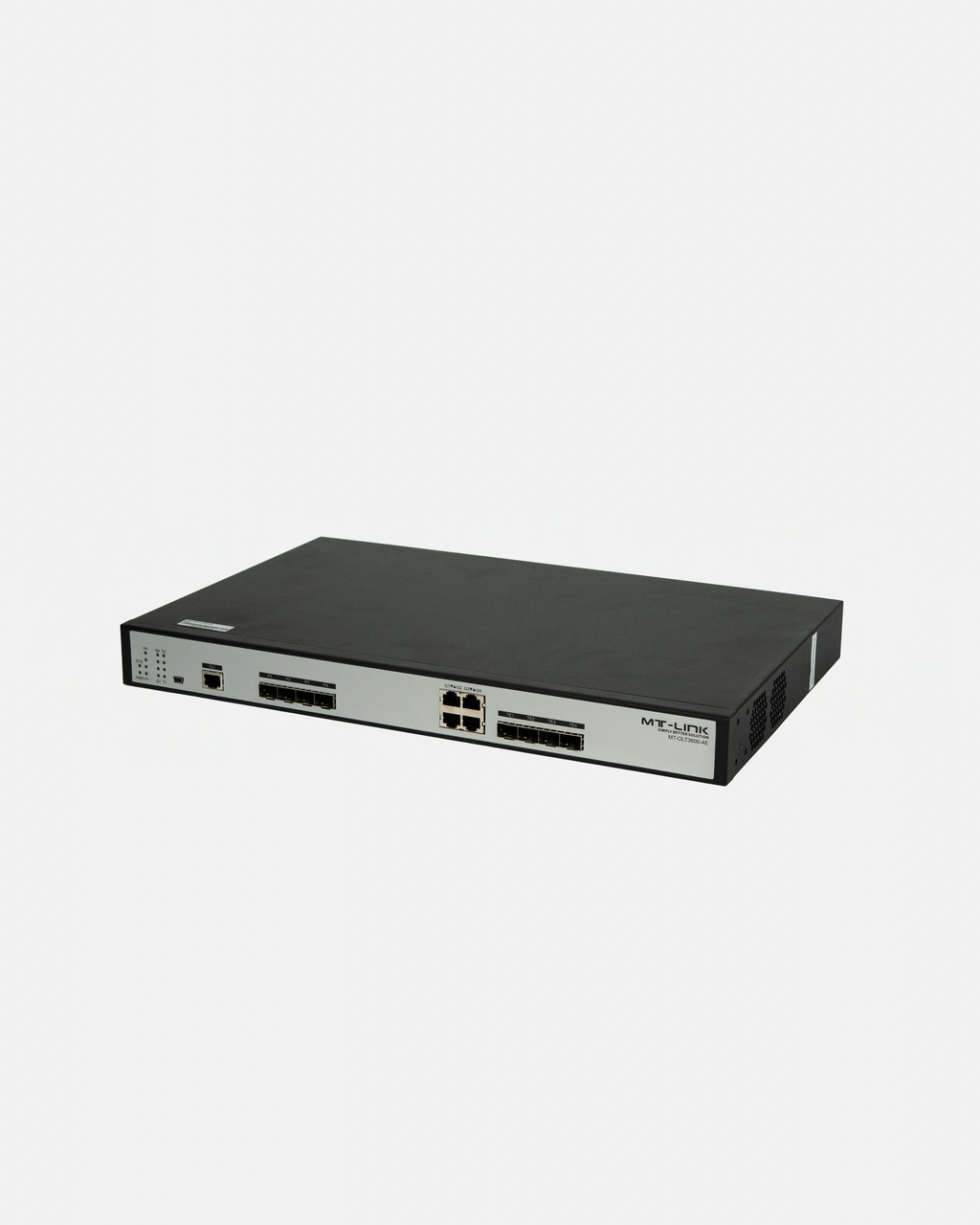

MT-OLT3600-4E

MT-LINK MT-OLT3600 Series complies with IEEE802.3ah and PRC Community Industry Standard (YD/T 1475-2006), and fully abides by the CTC2.1/3.0 standard. MT-OLT3600 Series can automatically discover and work harmoniously with ONUs made by different manufacturers to build efficient EPON solutions. Currently, MT-OLT3600 Series has 4 models: MT-OLT3600- 04/08/08E/16E.

MT-LINK MT-OLT3600 OLT supports the symmetric uplink/downlink 1.25Gbps PON transmission rate, efficient bandwidth usage and Ethernet services, helping carriers to provide reliable services to their users.

The splitting ratio of up to 1:64 enables it to support the hybrid networking of different types of ONUs, which minimizes the operator's investment.

MT-LINK MT-OLT3600, based on the industry-leading technologies, is strong in functions. A few of its functions such as QoS guarantee, SLA and DBA can be easily listed out.

Product Characteristics

MT-LINK MT-OLT3600 Series has following advantages:

EPON: MT-LINK MT-OLT3600 Series complies with IEEE802.3ah and PRC Community Industry Standard (YD/ T 1475- 2006), and China Telecom EPON Technical Requirement CTC2.1/3.0.

System capacity: MT-OLT3600 Series supports 4/8/16 EPON systems.

Uplink port: MT-OLT3600 Series are all equipped with 4 GE TX ports, 4/6 10GE uplink ports. Among them, MT-OLT3600-08E/16E features 4 Gigabit SFP ports.

Dimension: 1U, less than 300mm(Depth).

Environmental protection: low power consumption and low operating cost.

Layer-3 function: supports layer-3 routing function.

Bus optical fiber protection: MT-OLT3600 Series supports automatic link protection when trouble occurs in the optical fiber.

Power characteristics: supports dual power supply. The power supply of MTOLT3600-08E/16E supports modularized design, hot-swap and EMC-3 standard. It well adapts to the environment.

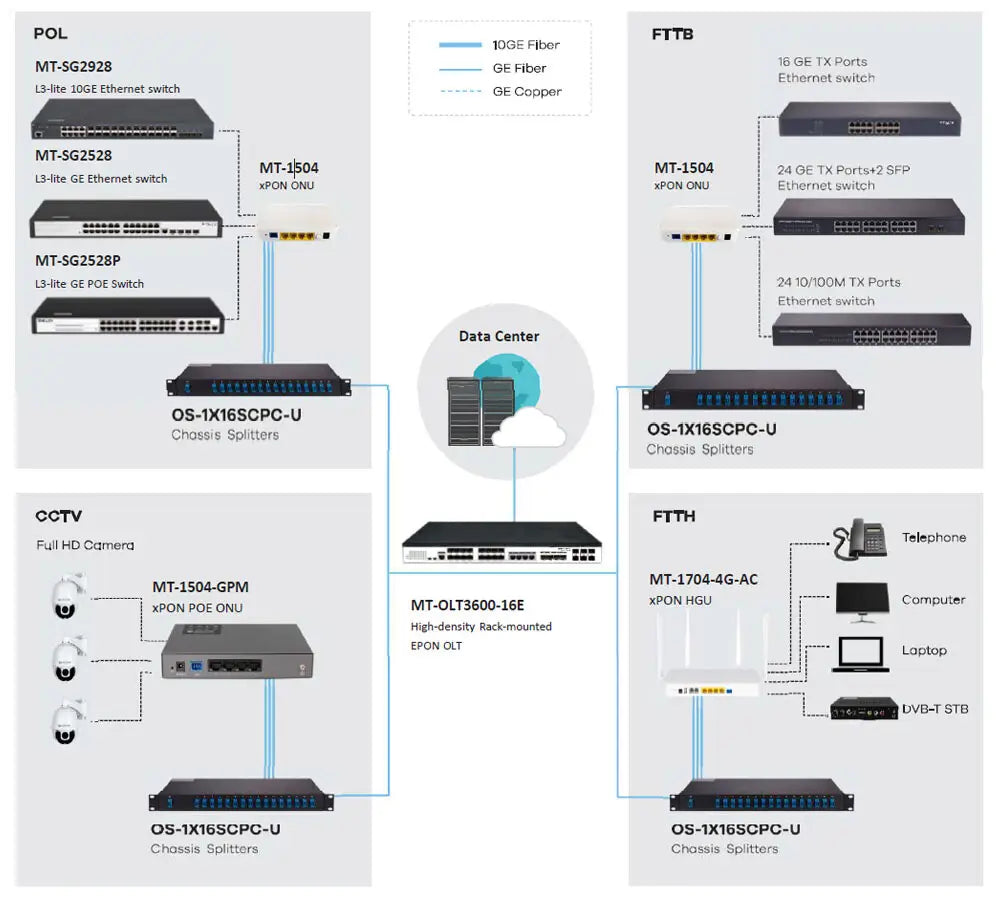

Application Diagram

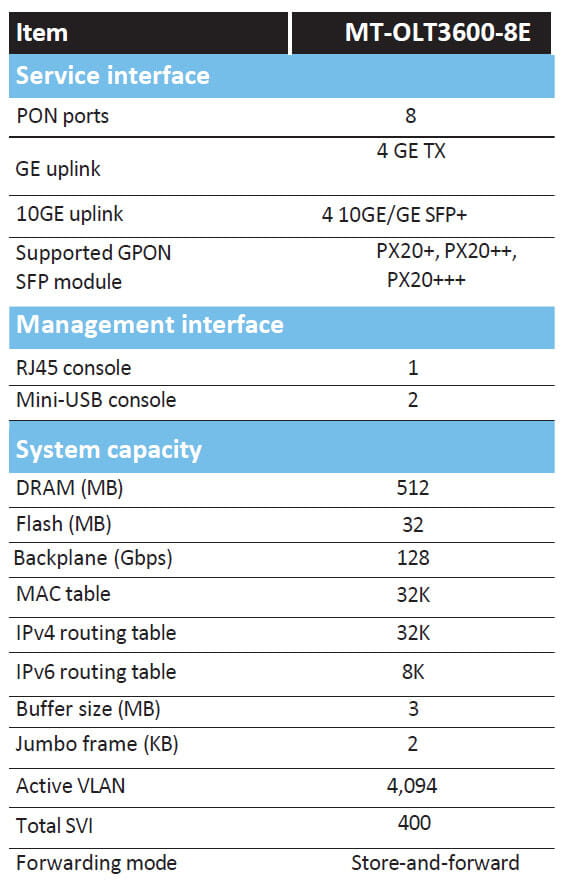

System Performance

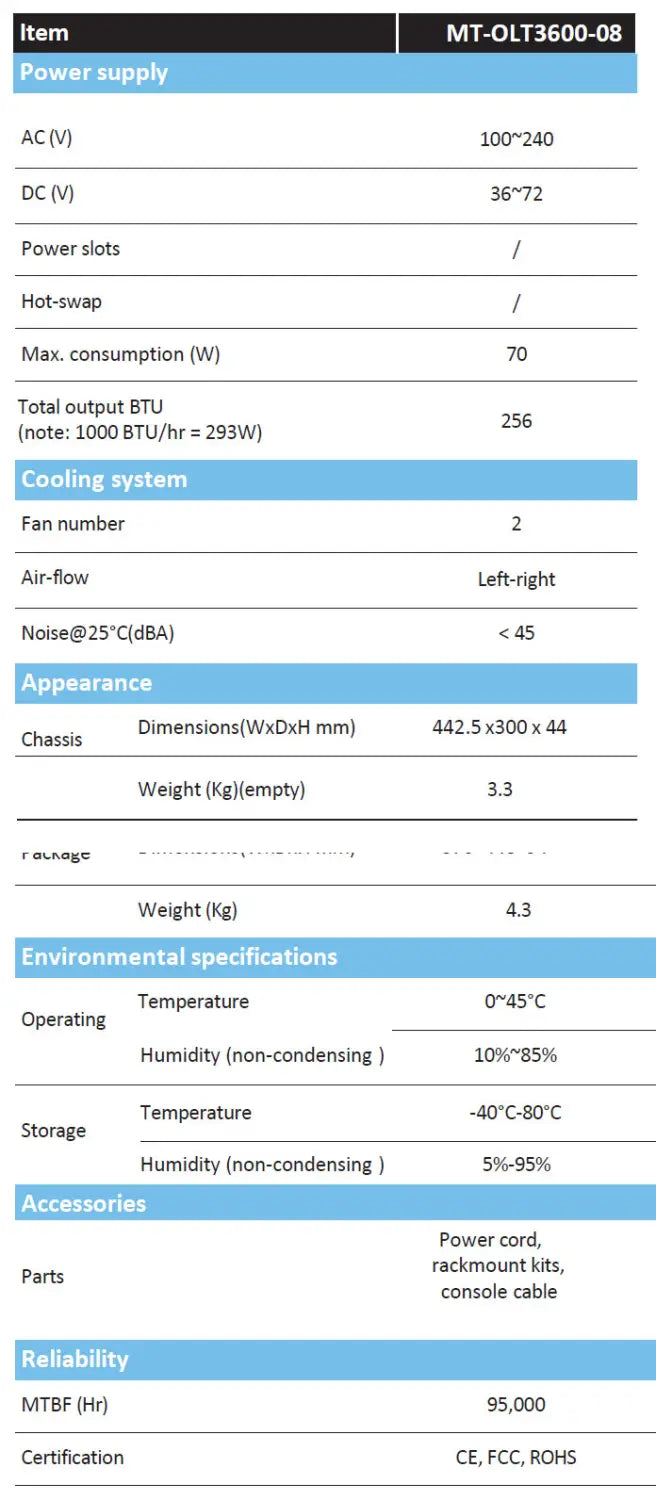

Physical Characteristics
