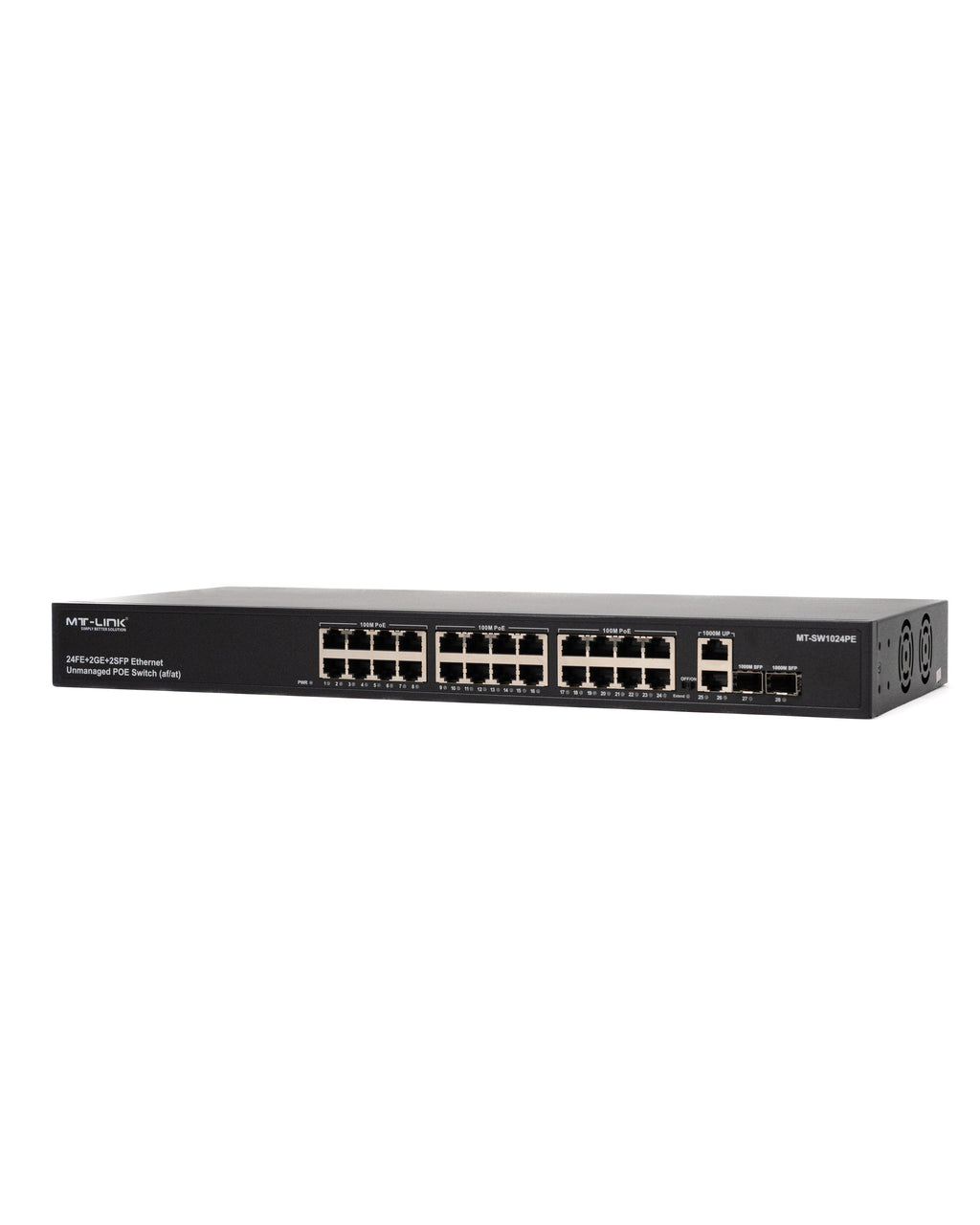

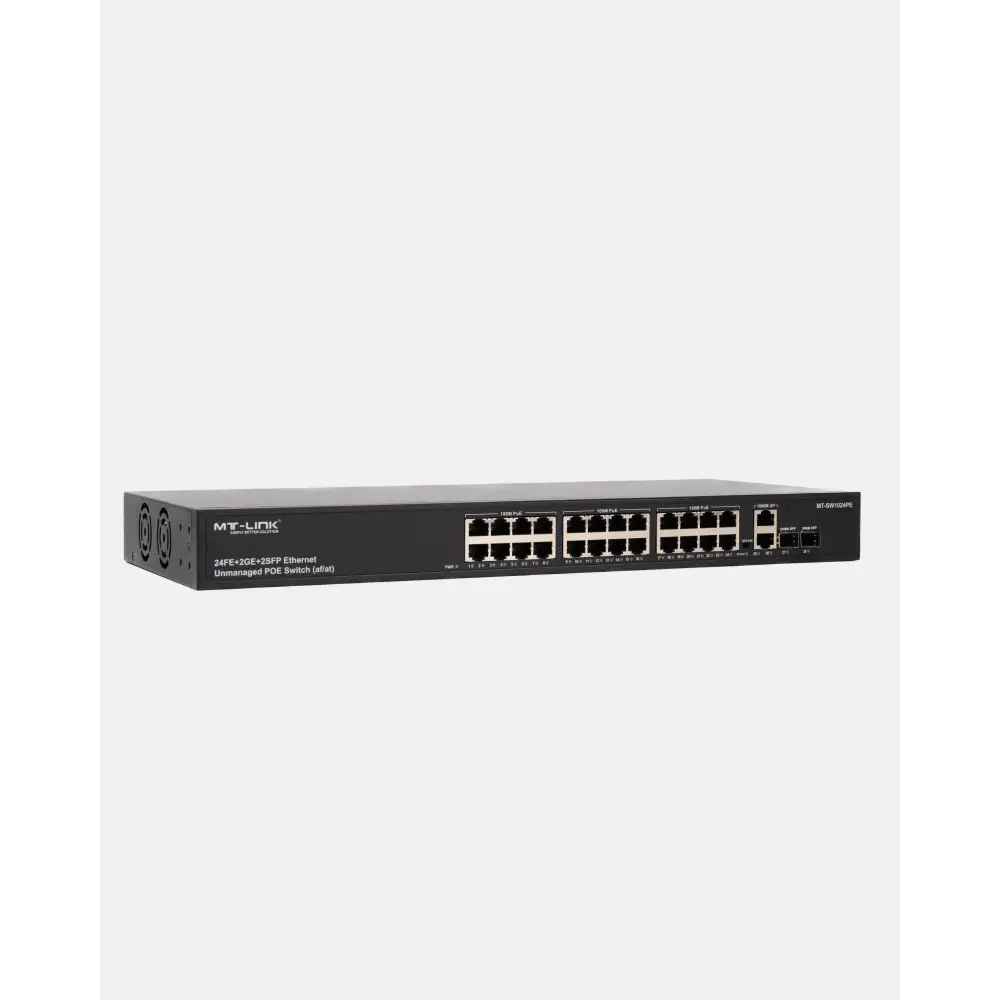

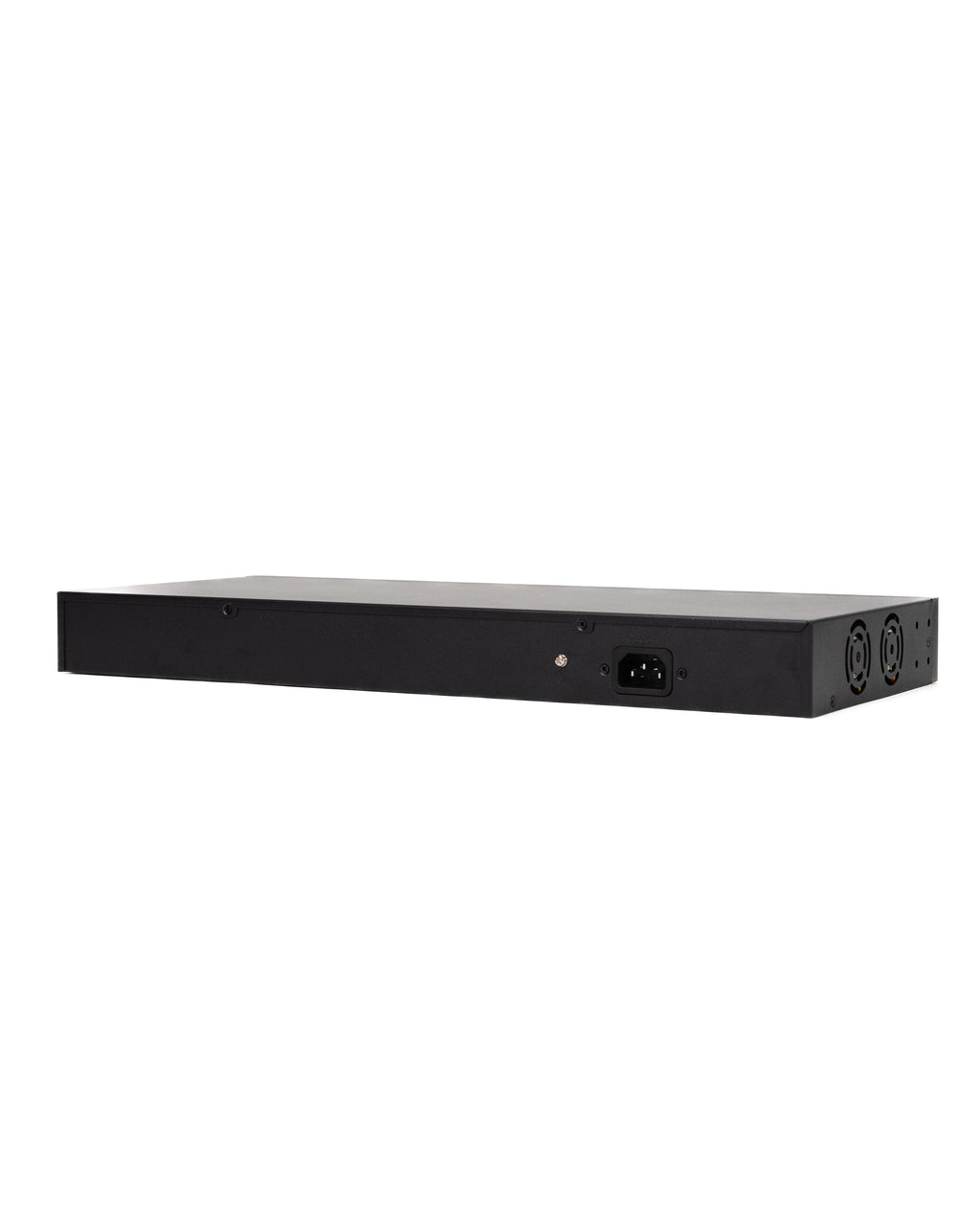

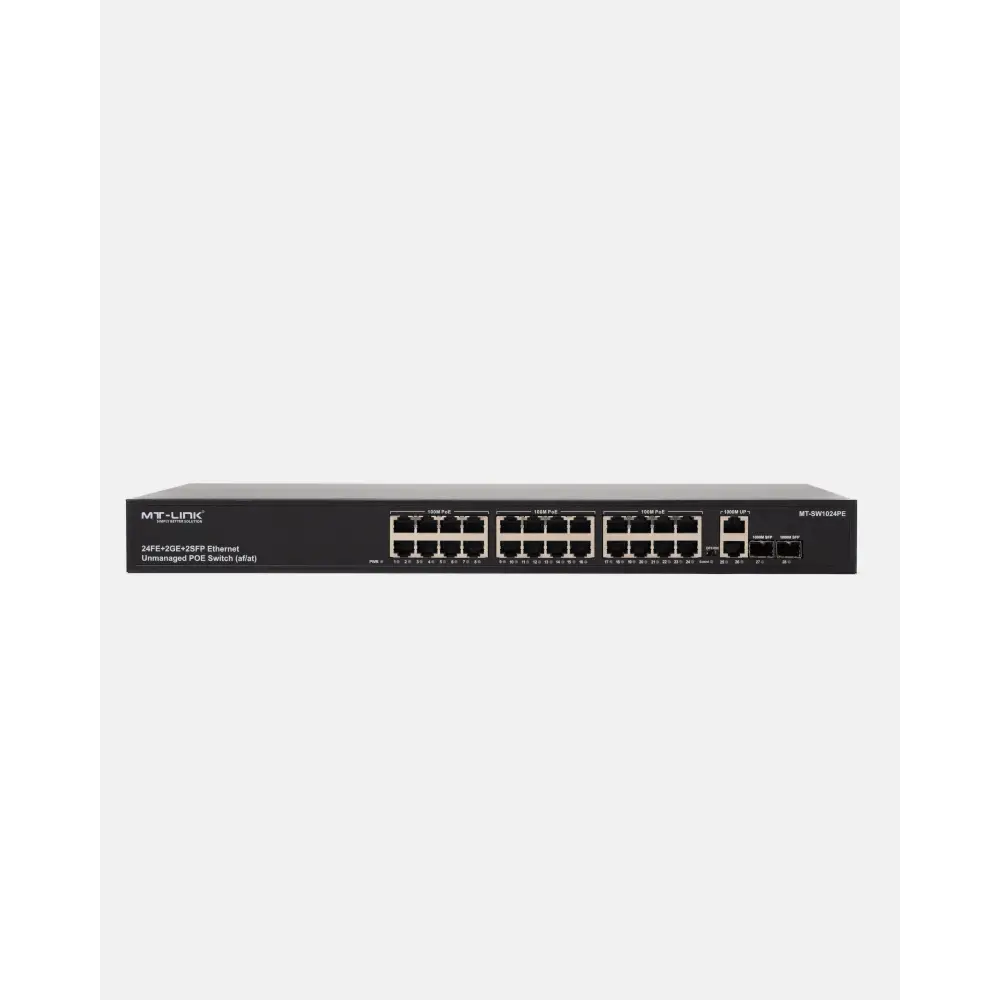

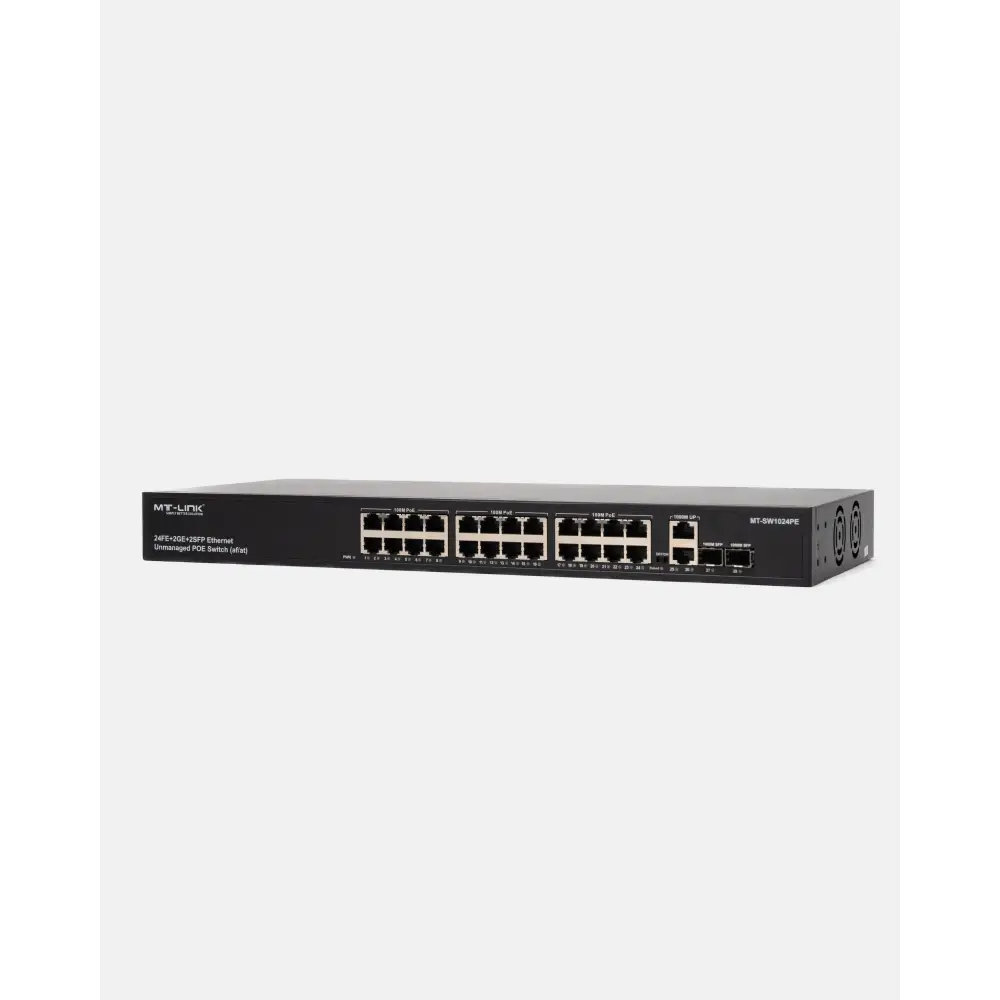

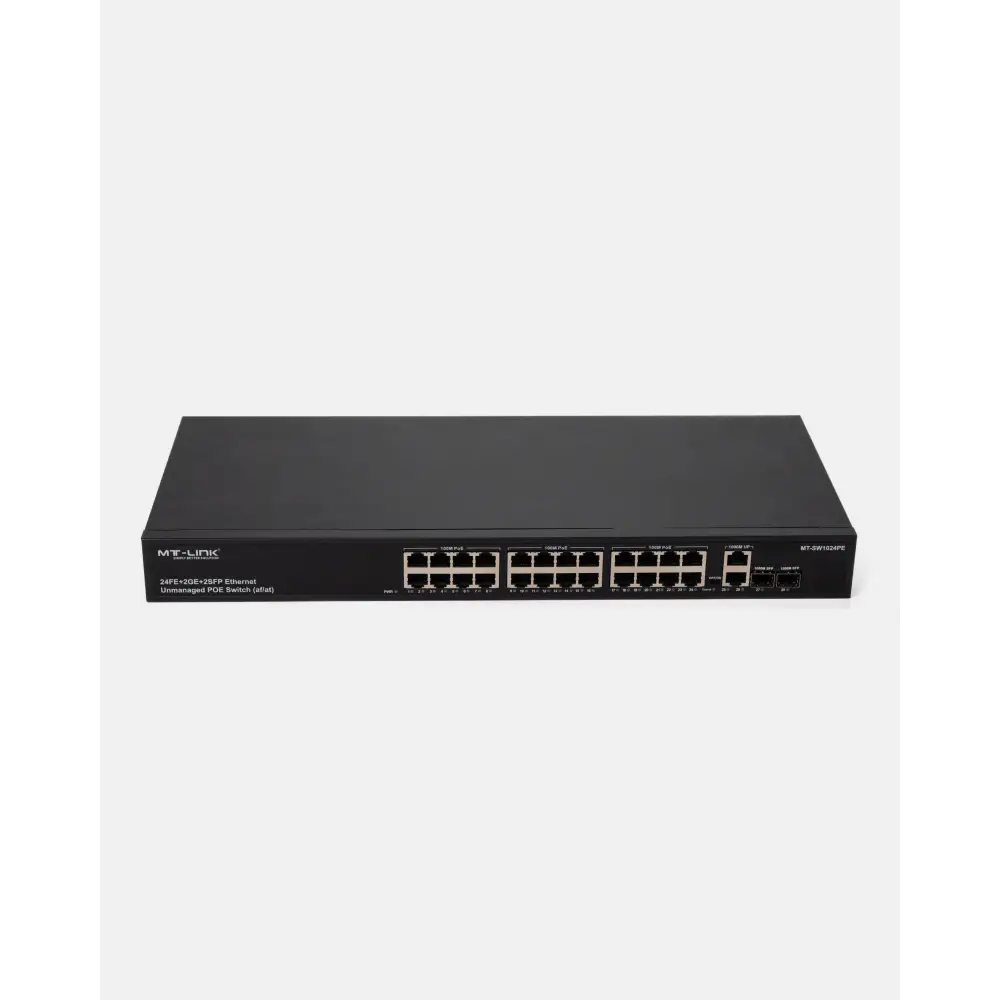

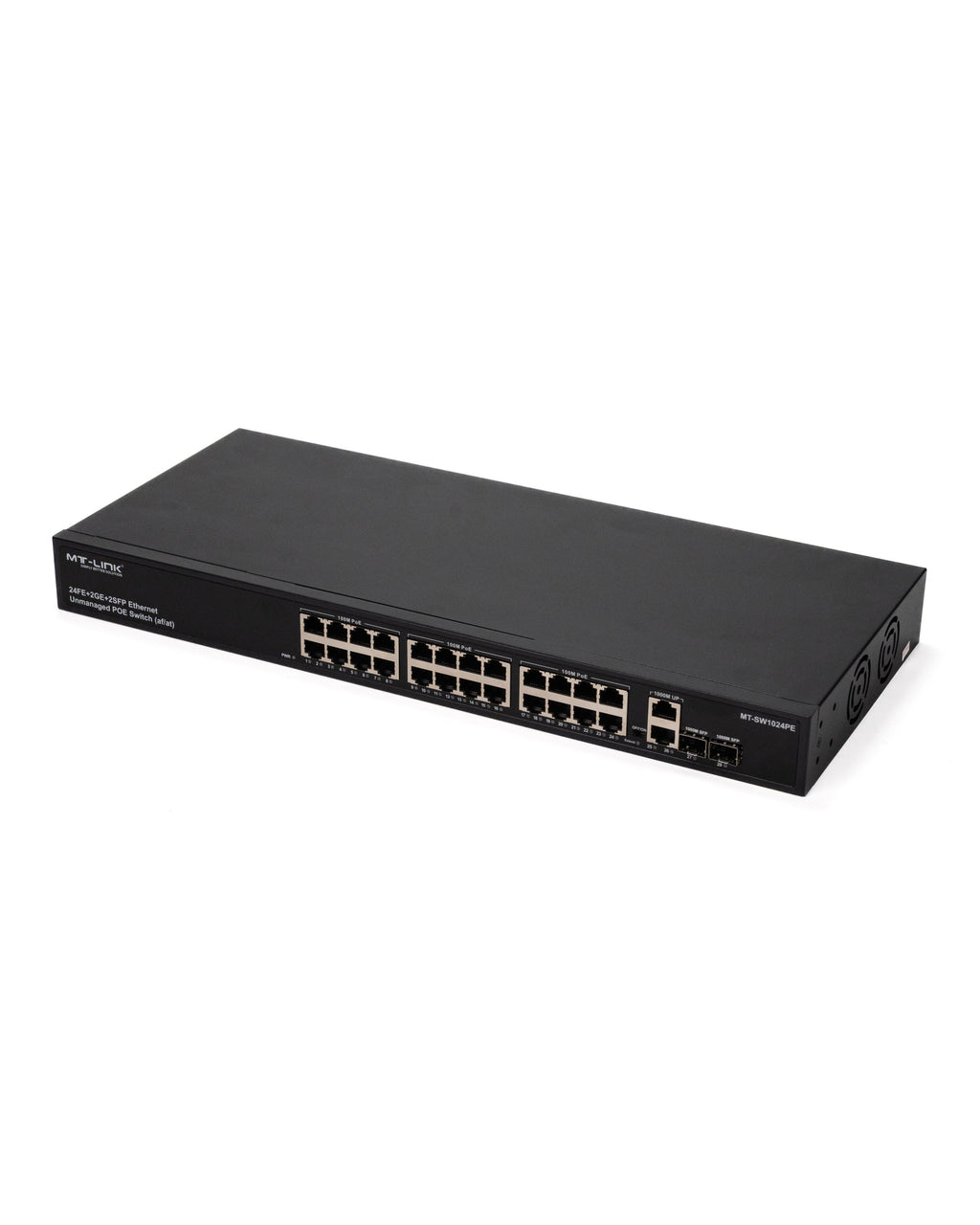

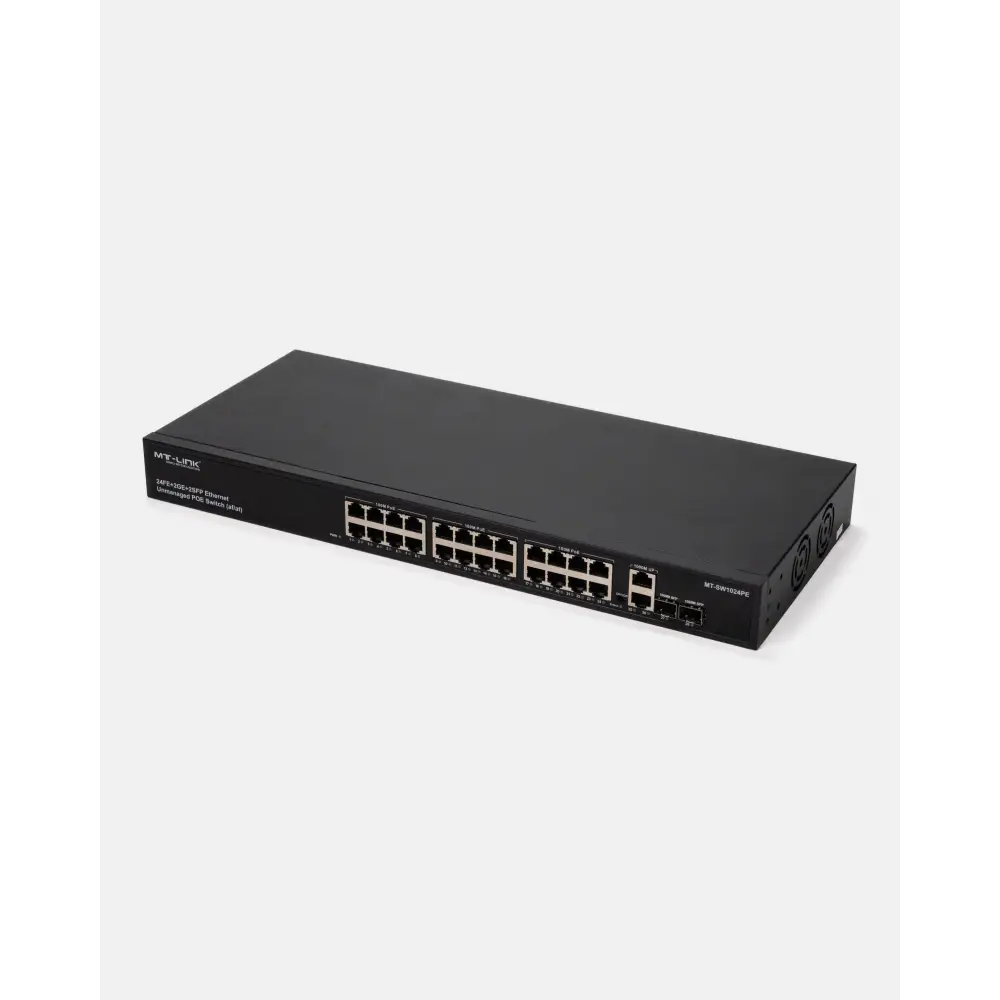

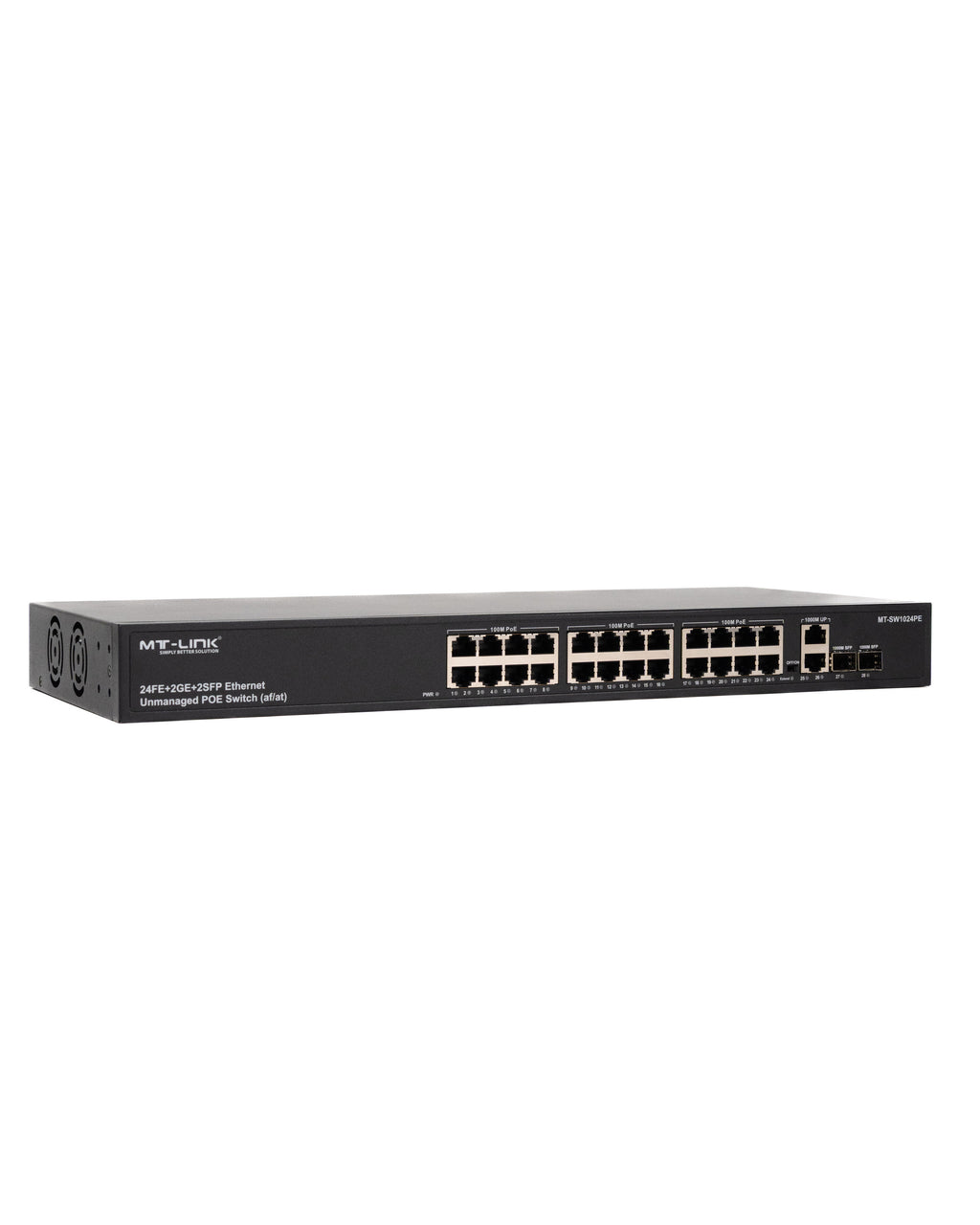

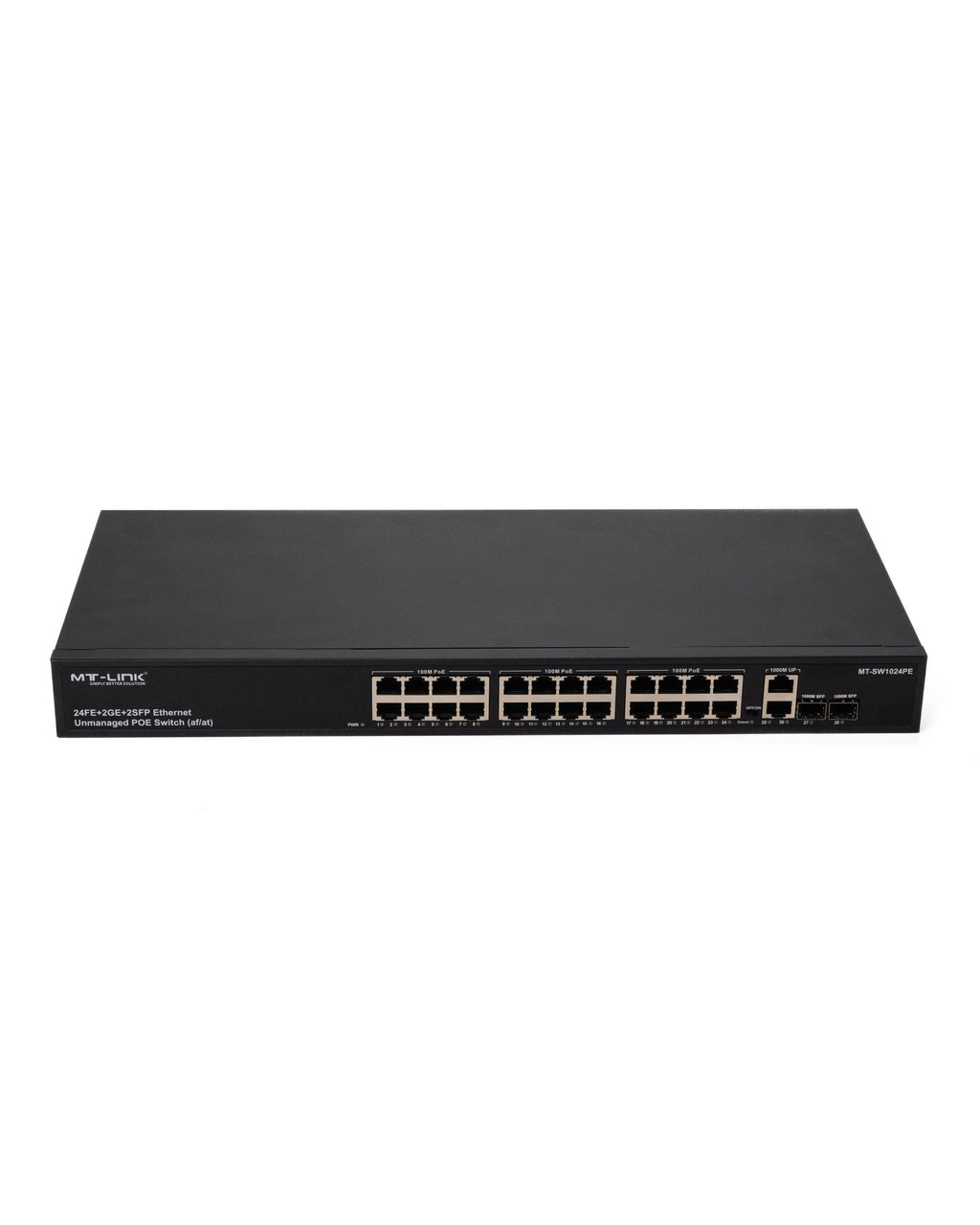

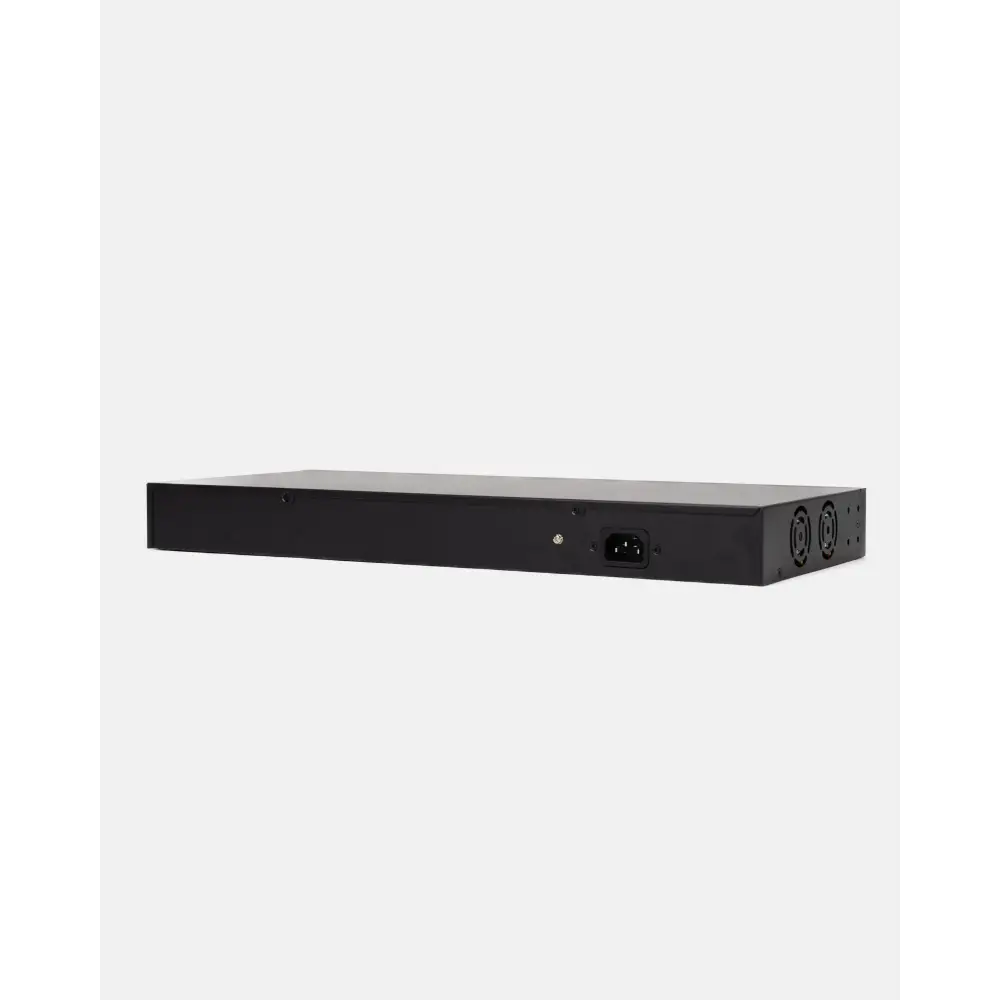

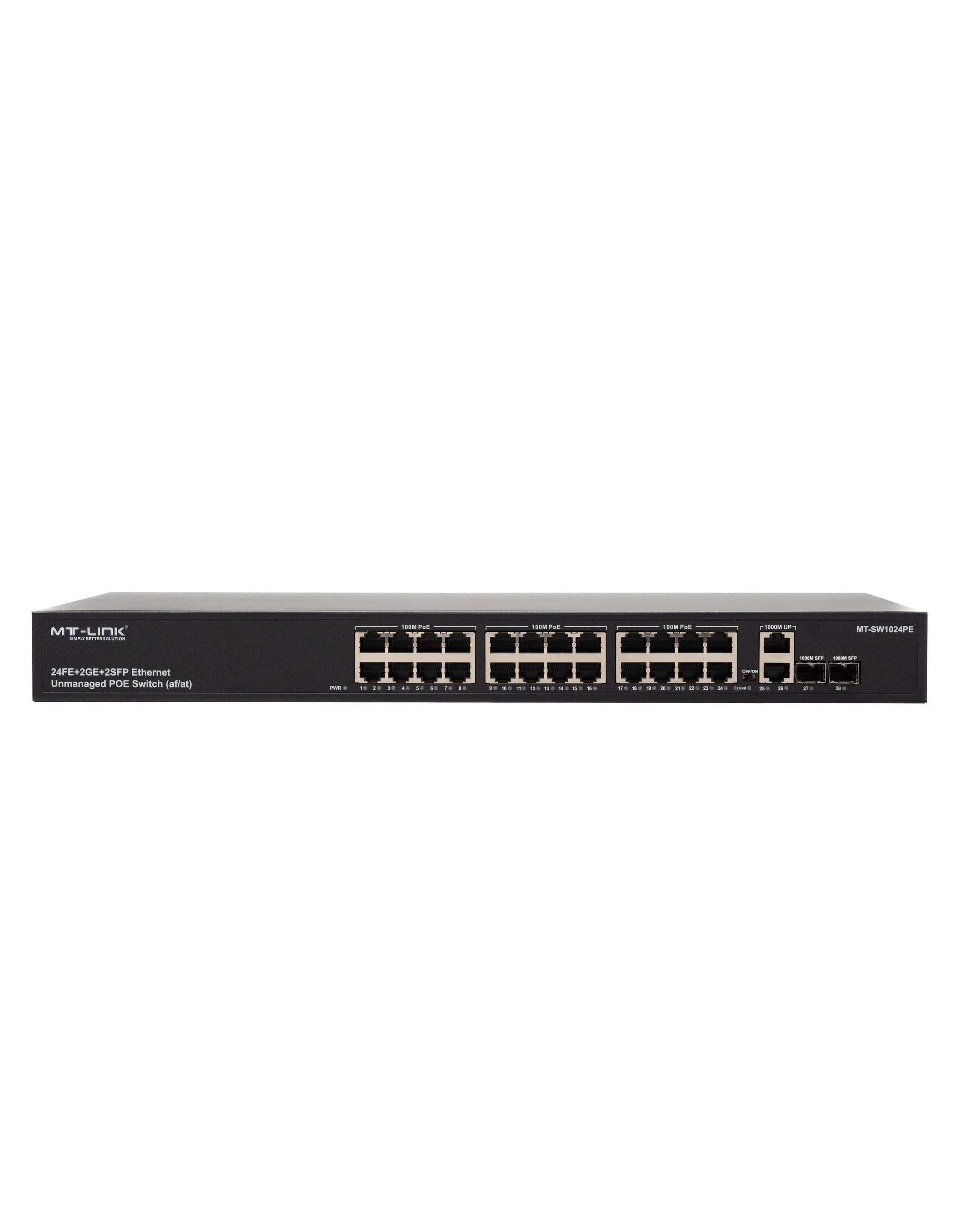

MT-SW1024PE

24FE POE+ 2GE + 1G SFP Uplink POE Switch

• 24 ports 10/100Mbps POE Ports
• 2 Gigabit Uplink ports
• 1 Gigabit SFP Uplink ports
• 250W Total POE budget”

Overview

The MT-SW1024PE series is a 28 Ports standard POE switch that provides 24 FE POE ports , 2 Gigabit Up-link ports and 2 SFP fiber port. Ports 1~24 features POE power supply capability and can be used as Power over Ethernet devices. The power supply port can automatically detect and recognize the powered device that complies with the IEEE 802.3af/at standard and supply power through the network cable. 2 Gigabit uplink ports ensure a smooth transmission for NVR or up-link routers. MT-SW1024PE is a most economical solution for HD security network

Features

• Supporting 802.3, 802.u Faster Ethernet, IEEE 802.3ab 1000BASE-T.
• Supports POE IEEE 802.3af/at compliant Powered Device (PD).
• Modes: Normal switch mode/Extended mode (Port1-24:250Metres ultra-long
transmission).
• Ports 1~24 features POE power supply capability and can be used as Power over
Ethernet devices；2*10/100/1000Base-T Uplink and 2*1000Base-X SFP.
• Support full duplex based on IEEE802.3x and half duplex based on Backpressure.
• Auto MDI/MDIX crossover for all ports.
• Support non-blocking wire speed forwarding.
• MAC address auto-learning & auto-aging.
• Steel case, the total POE power budget of 320W.
• Just Plug and Play
